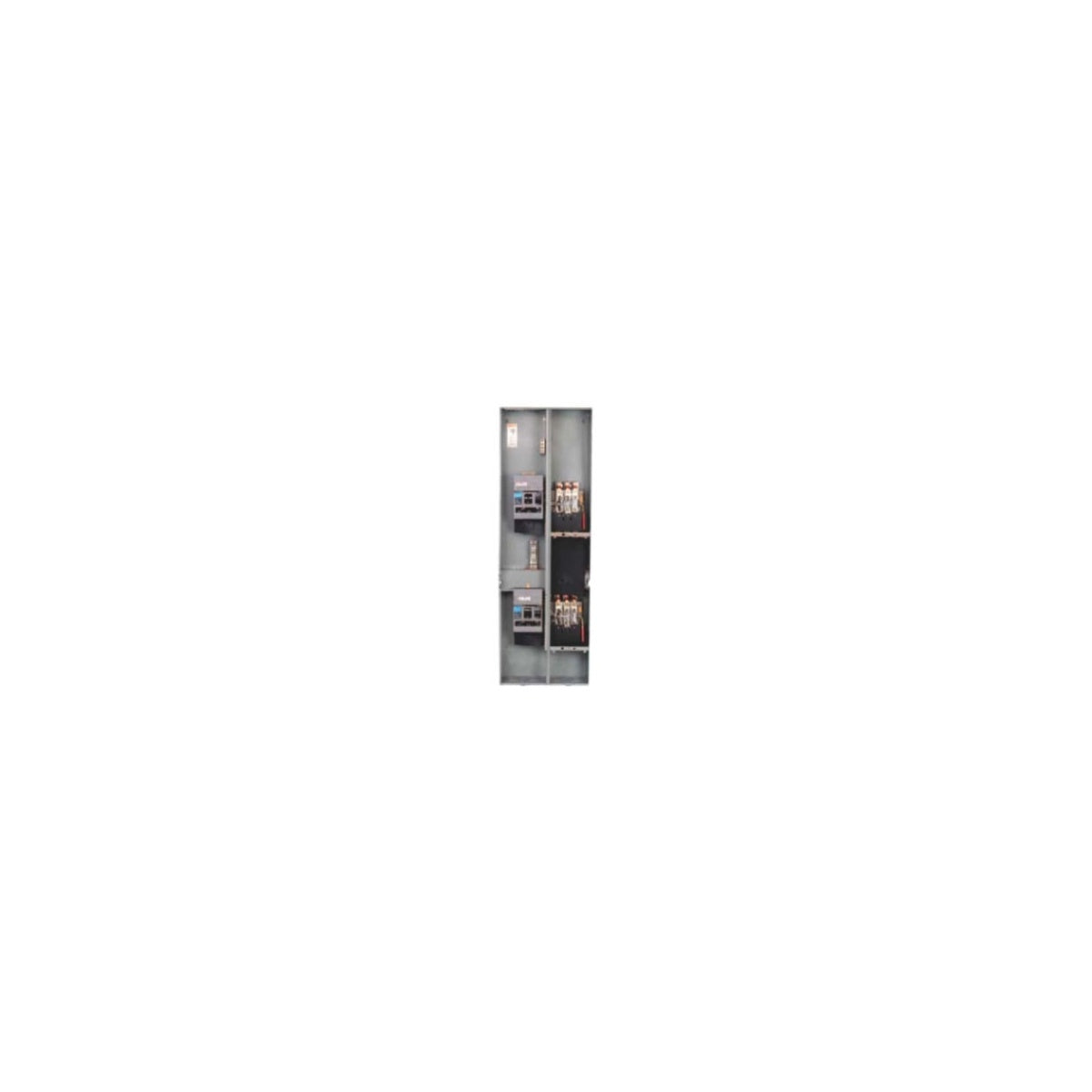

SIEMENS WML22400RJT13 POWMOD WML 2G 5J 3PH IN 400A 300/300A Lever Bypass Meter Stack

The SIEMENS WML22400RJT13 is a Power Mod type WML lever bypass meter stack designed for commercial and residential metering applications. It provides a reliable solution for electrical distributors and switchgear suppliers requiring 3-phase, 4-wire incoming and 1-phase, 3-wire outgoing configurations with a 400 Amp maximum tenant breaker rating. This product supports efficient wiring with a removable back knockout plate and features high-quality Talon HQ sockets to ensure durability and performance in electrical distribution and lighting solutions.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WML22400RJT13
• Amperage Rating: 400A
• Meter Positions: 2
• Maximum AIC: 25,000
• Dimensions (HxWxD): 70.38" x 23.00" x 9.69"
• Socket Phasing: 1-AB, 1-BC
• Stack Phasing: Not specified
• Weight: 232.7 lbs
• Voltage: Supports 3-phase 240V AC max and 1-phase 120/240V AC max
• UL Standard: UL67
• UL File Number: E27100
• Indoor/Outdoor Rating: NEMA 1 (indoor), NEMA 3R (outdoor)
• Material: G90 galvanized steel with ANSI 61 paint
• AIC Rating Options: 25K, 35K, 65K, and 100K available
• Thru-bus Rating: 1200A

Features

• Lever bypass design meeting utility specifications for residential and commercial applications
• QuickSystem™ features for streamlined installation
• High-quality, time-proven Talon HQ sockets
• Removable back knockout plate facilitates wiring
• Supports up to 2 positions with 400 Amp tenant mains
• Ringless lever bypass stacks for enhanced safety and reliability
• All swing latches and rivets are stainless steel
• Custom options available upon request
