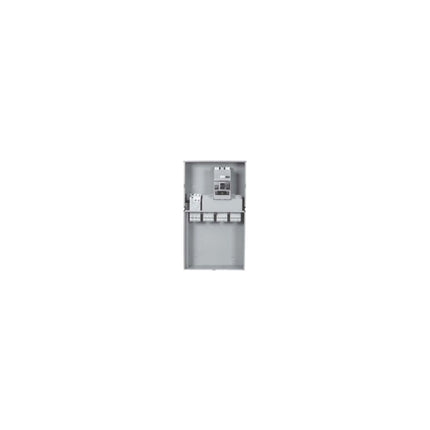

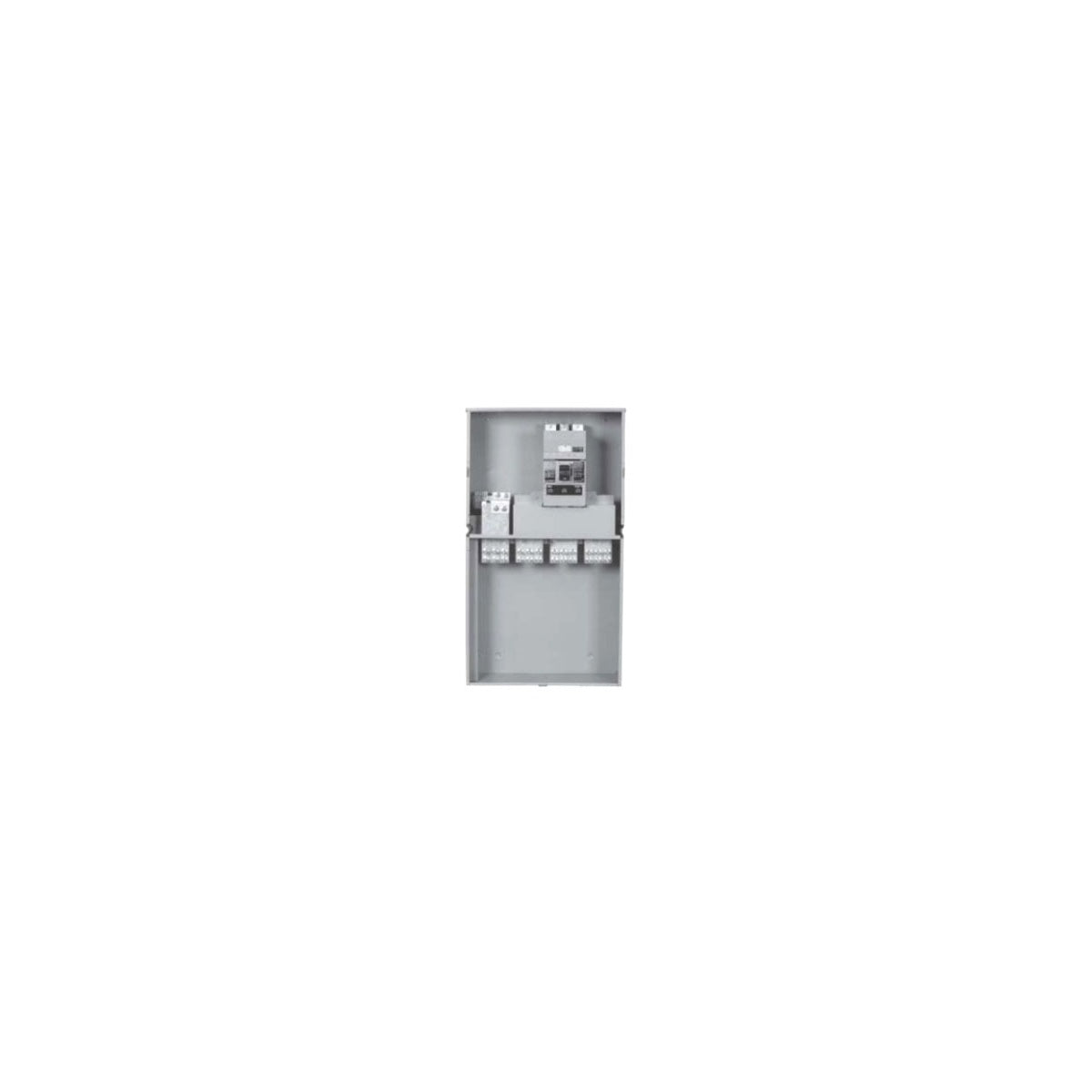

SIEMENS WEB31000BU POWMOD WEB 1000A 3PH 3R 100K AIC Circuit Breaker

The Siemens WEB31000BU is a Type WEB circuit breaker and pullbox combination module designed for use as service equipment in electrical distribution systems. It supports 3-phase, 4-wire, 240V AC maximum applications and meets EUSERC compliance requirements. This product is suitable for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers looking for reliable, high-capacity circuit protection with enhanced conductor space and safety features.

Specifications

• Amperage Rating: 1000A
• Enclosure: NEMA 3R
• Cable Entry: THRU-BUS
• AIC Rating: 100kA
• Voltage: 3-phase, 4-wire SN, 240V AC max
• UL Standard: UL67
• UL File Number: E27100
• Dimensions (H x W x D): 59.34" x 34.22" x 12.47"
• Material: G90 galvanized steel with ANSI 61 paint
• Line Side Connections: 1 set of 2 studs (lugs not included)
• Product Weight: 334.8 lbs

Features

• EUSERC-compliant breaker-pullbox combination with QuickSystem‚Ñ¢ features
• Factory-installed NEMA II studs for secure connections
• Supports 750 kcmil aluminum wire options
• Externally accessible breaker handle with padlock capability
• Field-installable shunt trips available
• Large removable ground wire trough providing generous space for grounding conductors
• Removable blank bottom endwall for flexible installation
• All swing latches and rivets are stainless steel to prevent corrosion
• NEMA 3R rated enclosure suitable for outdoor use
