Description

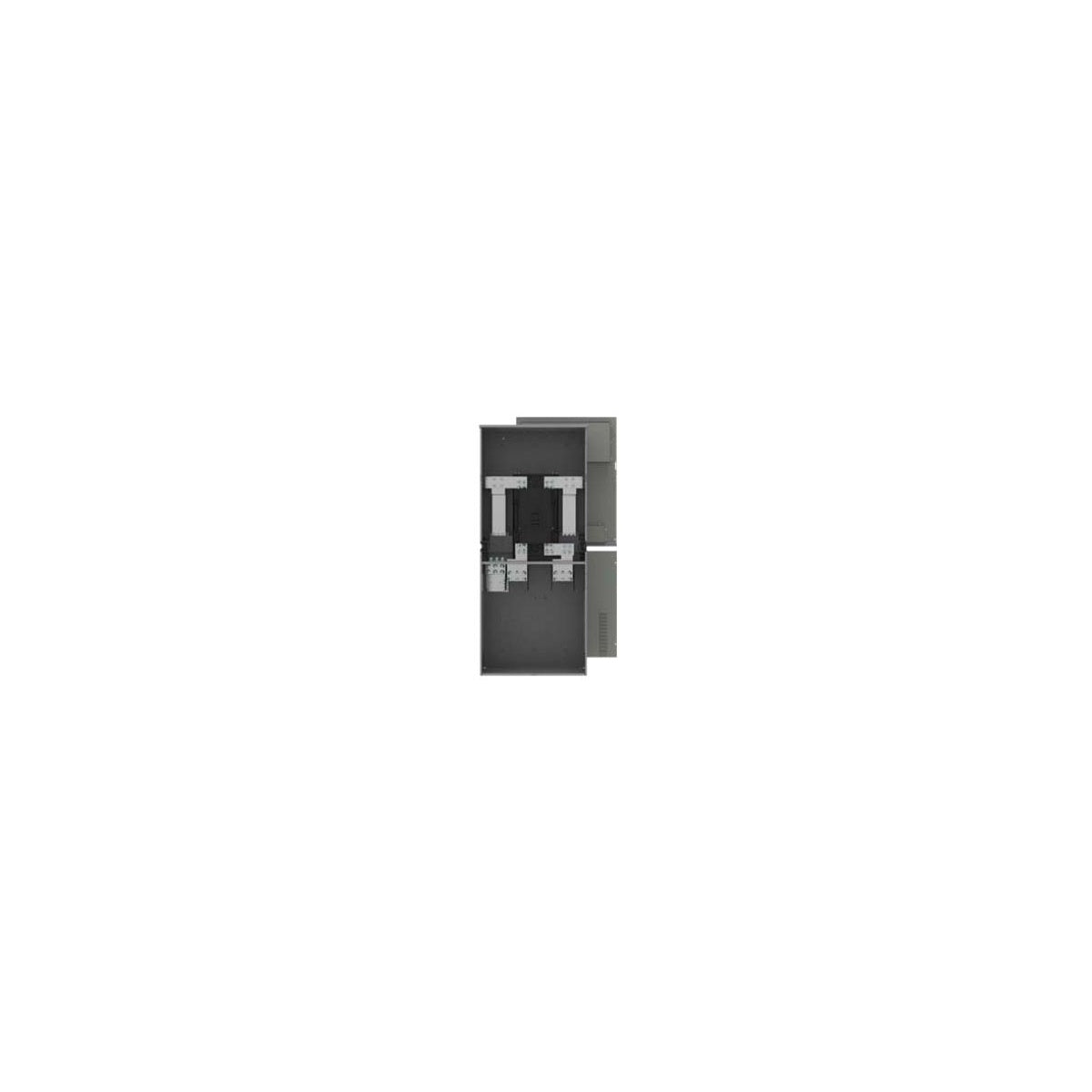

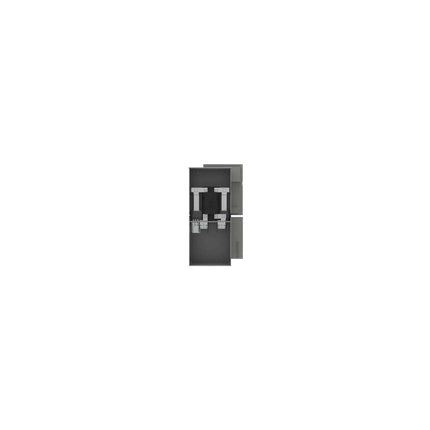

SIEMENS WB11600B PMOD WB 1PH 1600A 65K BOT N3R Circuit Breaker Main
The Siemens WB11600B Power Mod is a standard circuit breaker main module designed for single-phase, 3-wire 120/240V AC service entrance applications. It is suitable for electrical distributors and switchgear suppliers requiring reliable, NEMA 3R rated breaker solutions with a 1600 Ampere rating and 65kA interrupting capacity. This module supports combination overhead and underground feeds and is constructed to meet UL Standard #UL67, making it appropriate for use in residential and multi-family metering installations.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: WB11600B
- Ampere Rating: 1600A
- Voltage: Single phase 120/240V AC max
- Interrupting Capacity: 65kA AIC
- Dimensions (HxWxD): 72.06 x 31.34 x 14.66 inches
- Service Feed: Overhead (OH)
- Breaker Type: PXD6
- Enclosure Rating: NEMA 3R
- UL File #: E27100
- UL Standard #: UL67
- Weight: 455 lbs
Features
- QuickSystem™ features for streamlined installation
- Compression lug landing pads field-installable up to 1200 Amps, standard up to 2000 Amps
- Combination overhead and underground feed capability
- 750 kcmil aluminum wire options
- Removable blank bottom endwall
- Externally accessible breaker handle with padlock capability
- Broad ampacity ratings up to 2000 Amps with non-standard amperages available
- Field installable shunt trips
- All swing latches and rivets are stainless steel for durability
- G90 galvanized steel construction with ANSI 61 paint finish
