SIEMENS UVS511B NYC Meter 5 Position 100A Indoor - Electrical Metering Solutions

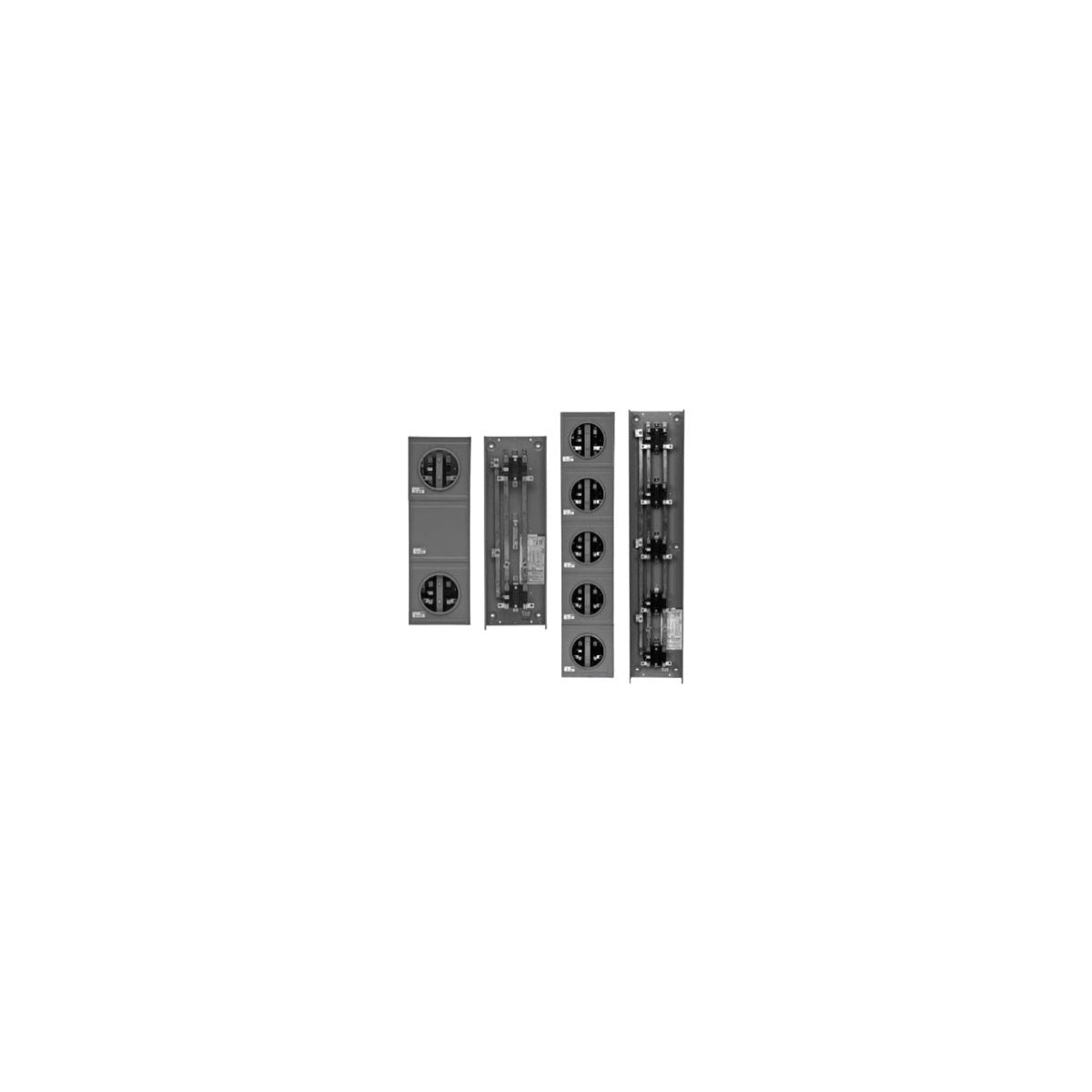

The SIEMENS UVS511B NYC Meter is a 5-position indoor meter stack designed for New York City apartment group metering applications. Rated for 100 amps continuous duty, this modular metering product is intended for indoor use and supports 1 or 3 phase networks. It is suitable for electrical distributors and switchgear suppliers managing wire and cable installations requiring compact, vertically arranged metering solutions.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: UVS511B
• Amperage Rating: 100 Amps continuous
• Enclosure Type: TYPE1
• Meter Positions: 5
• Mounting: Indoor only
• Voltage: Up to 300V AC max.
• Meter Socket: 5 jaw with 5th jaw at 9 o’clock connected to neutral bus
• Dimensions: 10” wide by 50” high (including 5 meter positions)
• Wire Range (Line Terminals): #6-4/0
• Product Weight: 35.4 lbs
• UPC: 040892000917

Features

• Modular design allowing vertical stacking of 5 meter positions
• Pre-bussed on line side for simplified installation
• Compatible with Murray Type MP-T 2-pole plug-on circuit breakers (100 amps max)
• 5 jaw meter sockets with neutral connection for reliable metering
• Indoor mounting suitable for apartment group metering applications
• Standardized dimensions allow integration with line troughs and breaker troughs
