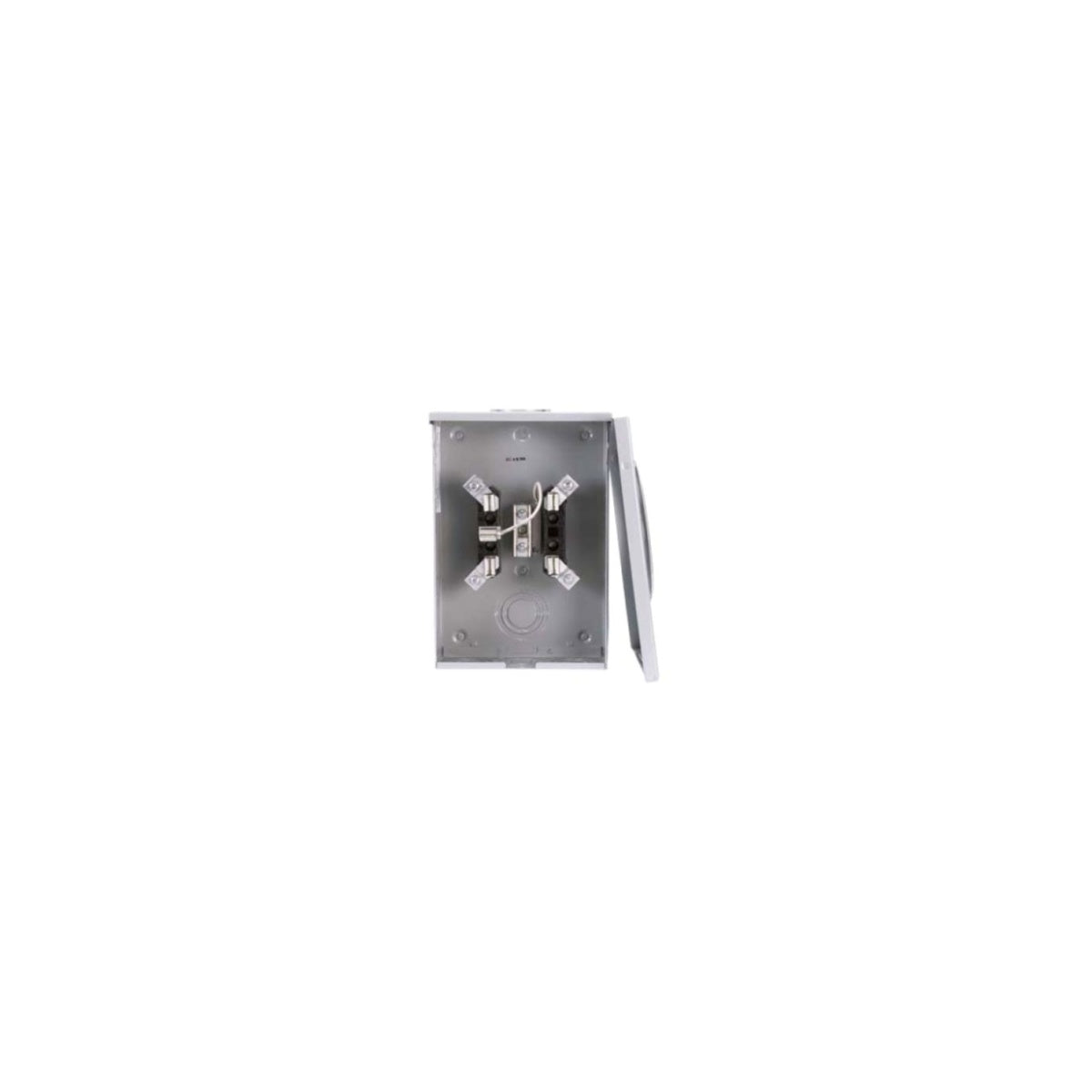

SIEMENS UAT121-0BCO TALON 135A 5J RING 1POS NO BPS MS OH/UG Meter Socket

The Siemens UAT121-0BCO Talon is a residential single-position meter socket designed for 1-phase, 3-wire electrical service applications. Rated for 135 amps continuous current and suitable for overhead (OH) or underground (UG) installations, this meter socket supports wire sizes from #14 to 2/0. It is ideal for electrical distributors and switchgear suppliers focusing on reliable meter mounting equipment within residential lighting solutions and wire and cable systems.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: UAT121-0BCO
• Amperage Rating: 135 A
• Application: Residential
• Service: Overhead/Underground (OH/UG)
• Wire Size Range: #14-2/0
• Number of Jaws: 5
• Dimensions (HxWxD): 11.7 in x 8.0 in x 3.7 in
• Product Weight: 7 lbs
• Hub Provision: RX Opening
• UPC: 783643457621

Features

• Ring-type meter mounting equipment with 5 jaw positions for secure meter installation
• Sealing ring included for enhanced security and tamper resistance
• Suitable for both overhead and underground residential electrical installations
• Compatible with #14 to 2/0 wire sizes, accommodating a wide range of conductor types
• Compact design with a depth of 3.7 inches for ease of installation in limited spaces

Downloads & Links

• Spec Sheet
