SIEMENS SW3040B1150 ES LC MB 30S/40C 1PH 150A N3R
SKU: #17524
Part: #SW3040B1150
UPC: 040892816136
SIEMENS SW3040B1150 ES LC MB 30S/40C 1PH 150A N3R
SKU: #17524
Part: #SW3040B1150
UPC: 040892816136
Description

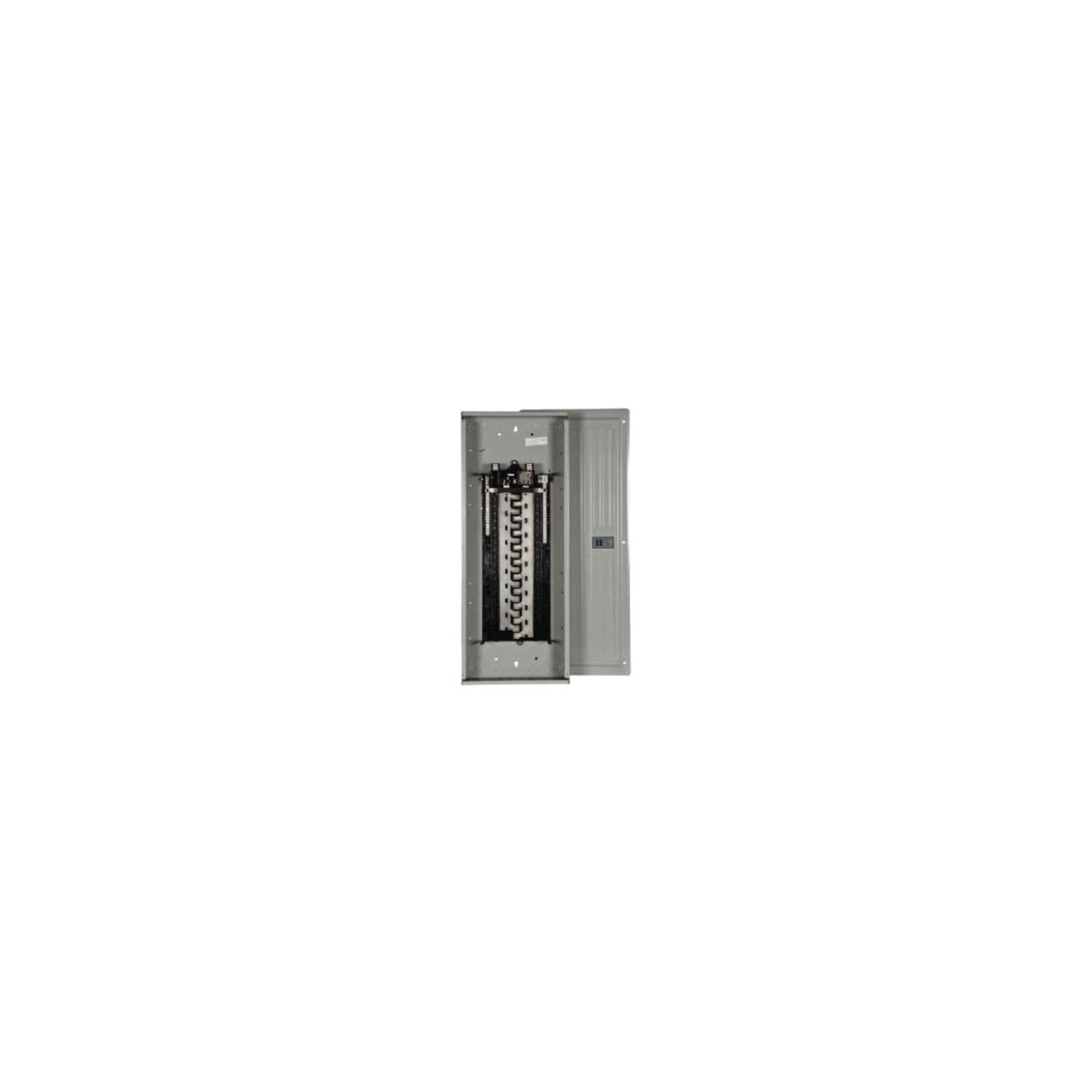

SIEMENS SW3040B1150 ES LC MB 30S/40C 1PH 150A N3R Load Center
The Siemens SW3040B1150 ES Series Load Center is designed for reliable electrical distribution in residential and commercial applications. This load center serves as a robust solution for electrical distributors and switchgear suppliers, providing a main breaker rated at 150 amps with a 22,000 A interrupt rating. It features a Type 3R outdoor enclosure suitable for harsh environments, making it ideal for lighting solutions and wire and cable installations requiring durable protection.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: SW3040B1150
- Amperage Rating: 150 A
- Circuit Breaker Type: 150A Main Breaker
- Interrupt Rating: 22,000 A
- Enclosure Type: TYPE 3R (Outdoor)
- Product Weight: 35 lbs
- UPC: 040892816136
Features
- ES Series load center with a 30-space, 40-circuit capacity
- Aluminum bus for reliable conductivity
- Outdoor-rated NEMA 3R enclosure with slide hinge door for easy installation and service
- Patented INSTA-WIRE™ neutral/ground system for faster wiring installation
- Pre-positioned bond screw eliminates bond strap assemblies, reducing installation time and risk of lost components
- Combination head screws on neutrals, ground, trim, upper pan, and bond screw for installation flexibility
- Rigid, sturdy base pan designed for harsh application environments
- Mounting tabs on trim hold it in place, freeing hands for screw installation
