SIEMENS SW3040B1125 ES LC MB 30S/40C 1PH 125A N3R
SKU: #17520
Part: #SW3040B1125
UPC: 040892816143
SIEMENS SW3040B1125 ES LC MB 30S/40C 1PH 125A N3R
SKU: #17520
Part: #SW3040B1125
UPC: 040892816143
Description

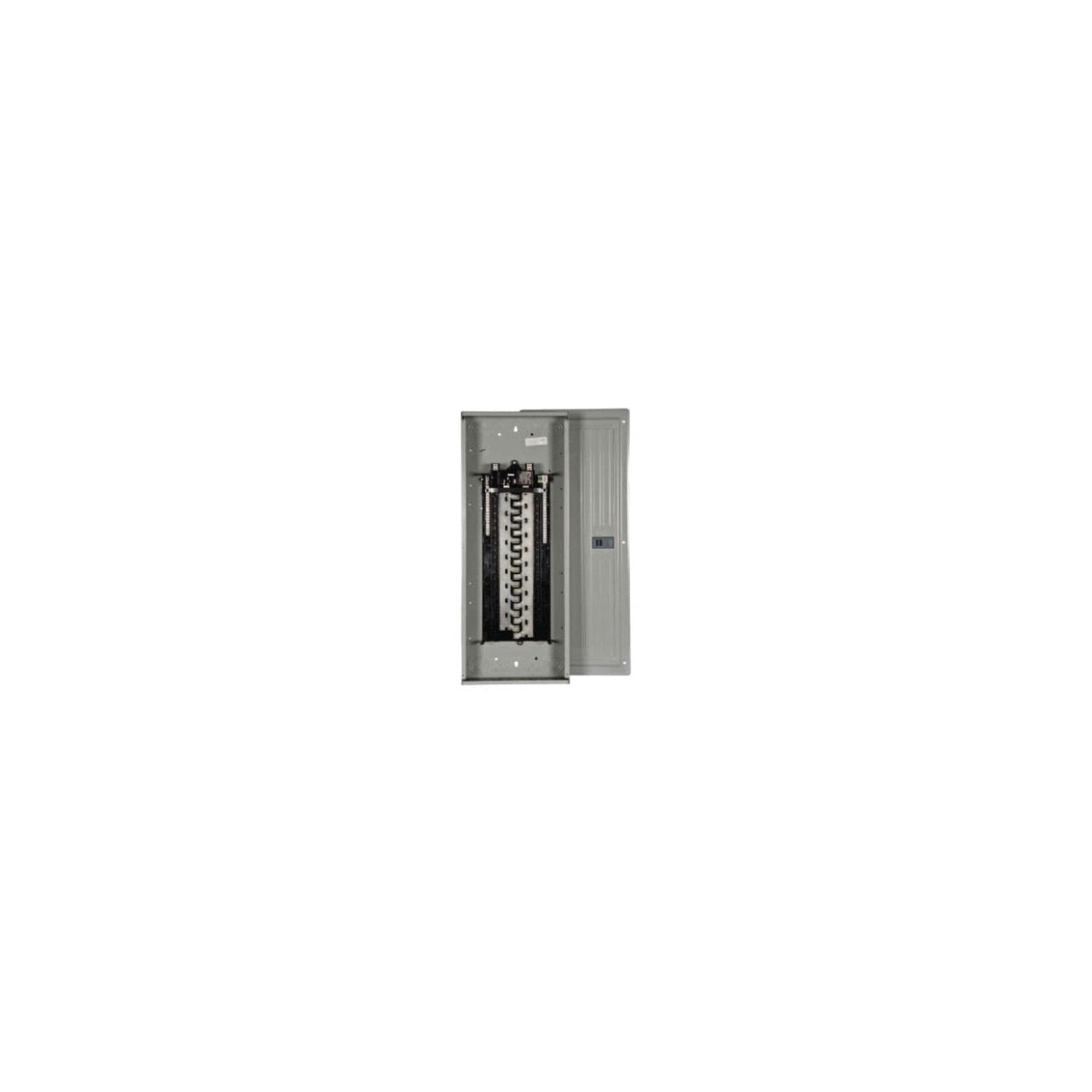

SIEMENS SW3040B1125 ES LC MB 30S/40C 1PH 125A N3R Load Center
The Siemens SW3040B1125 is a 1-phase, 125 Amp main breaker ES Series load center designed for residential and light commercial electrical distribution. It features a NEMA Type 3R outdoor enclosure suitable for harsh environments. This load center is ideal for use by electrical distributors and switchgear suppliers providing reliable lighting solutions and wire and cable management in electrical systems.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: SW3040B1125
- Amperage Rating: 125A
- Circuit Breaker Type: 125A Main Breaker
- Interrupt Rating: 22,000 AIC (Amperes Interrupting Capacity)
- Enclosure: NEMA Type 3R (Outdoor Rated)
- Product Weight: 35 lbs
- UPC: 040892816143
Features
- Outdoor-rated Type 3R enclosure with slide hinge door for easy installation and maintenance
- Aluminum bus for reliable electrical conductivity
- Designed for 30 spaces and 40 circuits
- Compatible with ES Series breakers and accessories
- Suitable for use as service equipment
