SIEMENS SW2424B1125 ES LC MB 24S/24C 1PH 125A N3R
SKU: #17429
Part: #SW2424B1125
UPC: 040892870299
SIEMENS SW2424B1125 ES LC MB 24S/24C 1PH 125A N3R
SKU: #17429
Part: #SW2424B1125
UPC: 040892870299
Description

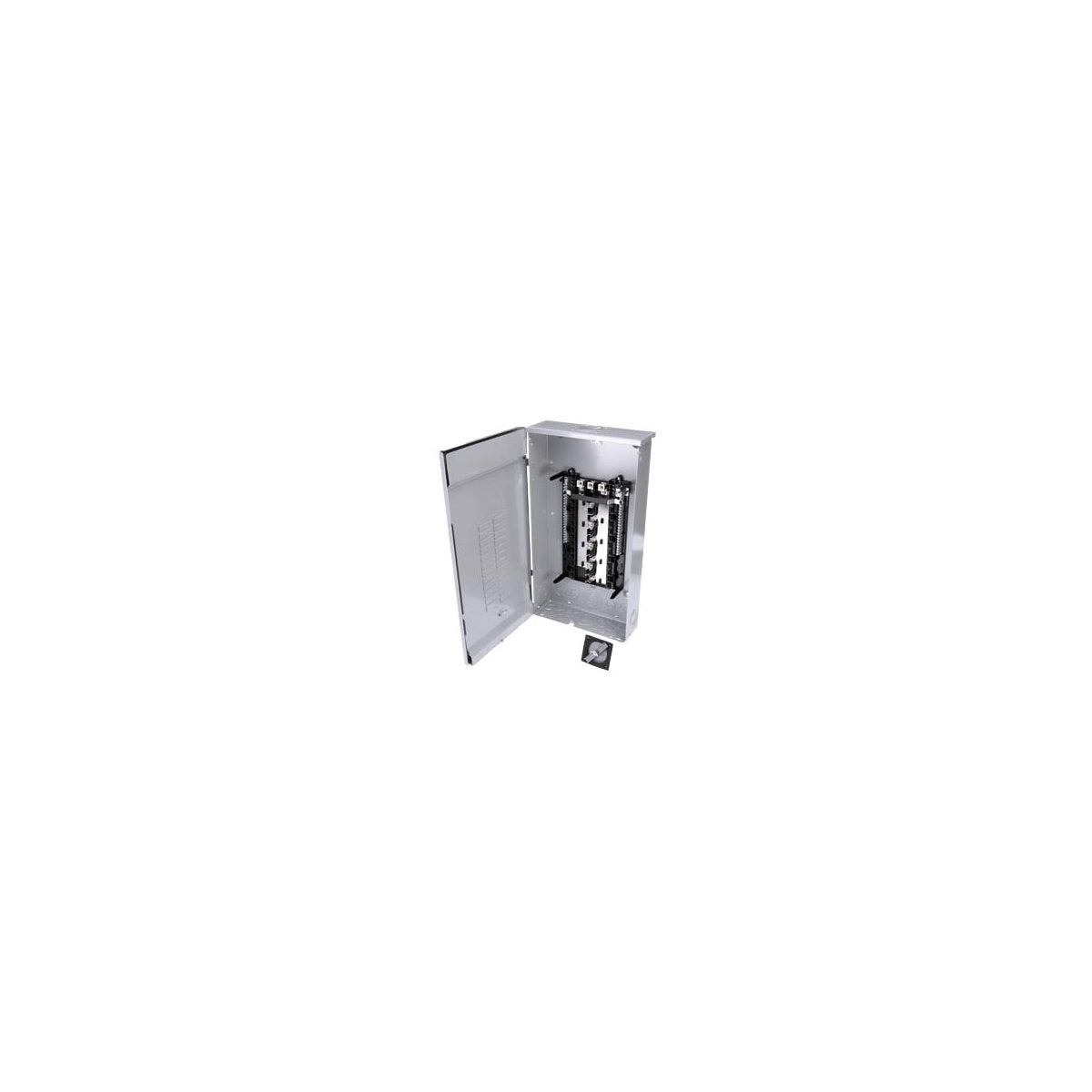

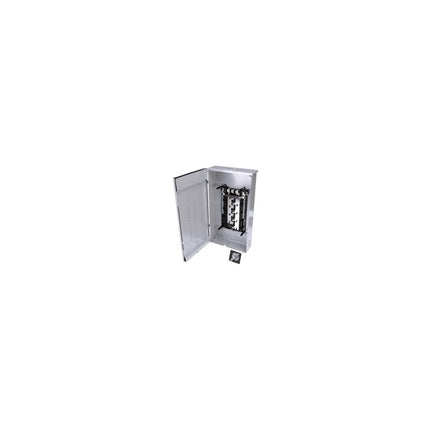

SIEMENS SW2424B1125 ES LC MB 24S/24C 1PH 125A N3R Load Center
The Siemens SW2424B1125 is a 1-phase, 24-circuit load center designed for both indoor and outdoor electrical distribution applications. It features a main breaker rated at 125 amps and is housed in a NEMA Type 3R enclosure, making it suitable for outdoor environments. This load center is ideal for electrical distributors and switchgear suppliers seeking reliable lighting solutions, wire and cable distribution, and circuit protection in residential or light commercial installations.
Specifications
- Manufacturer: Siemens
- Amperage Rating: 125A
- Circuit Breaker Type: 125A Main Breaker
- Interrupt Rating: 22,000 A
- Number of Circuits: 24
- Enclosure Type: NEMA 3R (Outdoor Rated)
- Product Weight: 30 lbs
- UPC: 040892870299
- Manufacturer Part Number: SW2424B1125
Features
- Outdoor-rated Type 3R enclosure with slide hinge door for easy installation
- Aluminum bus for reliable electrical conductivity
- Main breaker provides branch circuit protection and service disconnect
- Compatible with Siemens ES Series load centers, supporting 12-70 circuits and 100-225 amps
- Designed for use as service equipment with compliance to NEC requirements
