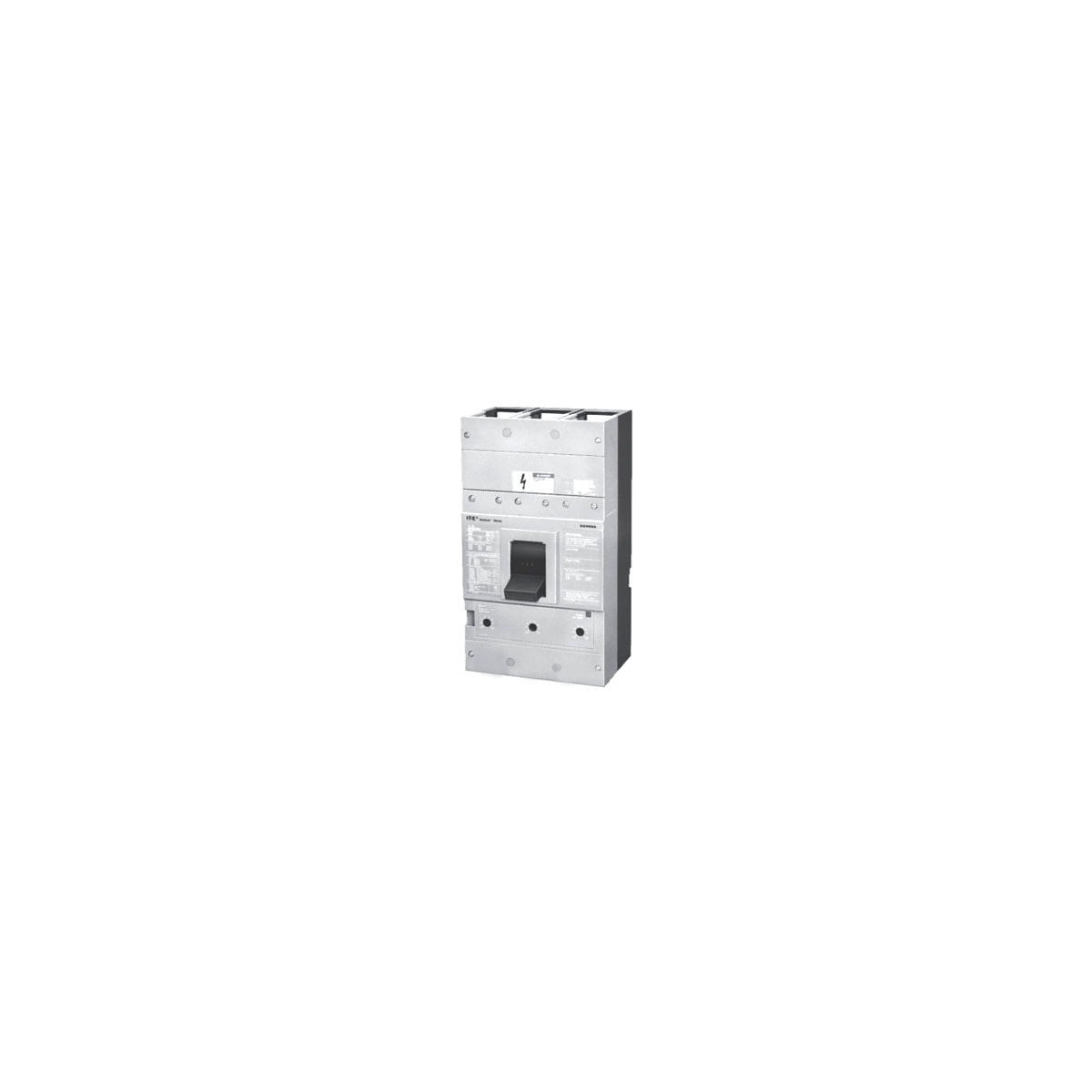

SIEMENS SND69120AGL BRKR ND6 3P 600V 1200A LIG LUG Molded Case Circuit Breaker

The Siemens SND69120AGL is a 3-pole, 1200 Amp, 600 Volt AC molded case circuit breaker designed for use in individual enclosures, switchboards, and power distribution panel boards. This breaker is part of the Sentron family and features solid state Sensitrip III digital trip units, providing advanced protection and coordination capabilities. Suitable for electrical distributors and switchgear suppliers, it supports applications requiring reliable circuit protection in industrial and commercial electrical systems.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: SND69120AGL
• Frame: SND
• Number of Poles: 3
• Voltage Rating: 600 V AC
• Current Rating: 1200 A
• Interrupt Rating: 25 kAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 75°C
• Connection: Line/Load lugs installed
• Dimensions (W x H x L): 9 in x 8 in x 16 in
• Product Weight: 67 lbs
• Actuator: Varying
• Enclosure: Varying

Features

• Digital Solid State Sensitrip III trip unit for precise and adjustable protection
• Adjustable continuous amps rating from 20% to 90% of breaker rating
• Selectable long time delay, short time pickup, short time delay, instantaneous pickup, and ground fault pickup settings
• Trip-free, overcenter toggle mechanism for safe operation
• Line and load lugs pre-installed for ease of connection
• Suitable for use in 3-phase, 3-wire systems with optional neutral transformers available separately
• UL Listed for reverse connection applications
• Compatible with pressure wire connectors for copper or aluminum conductors
