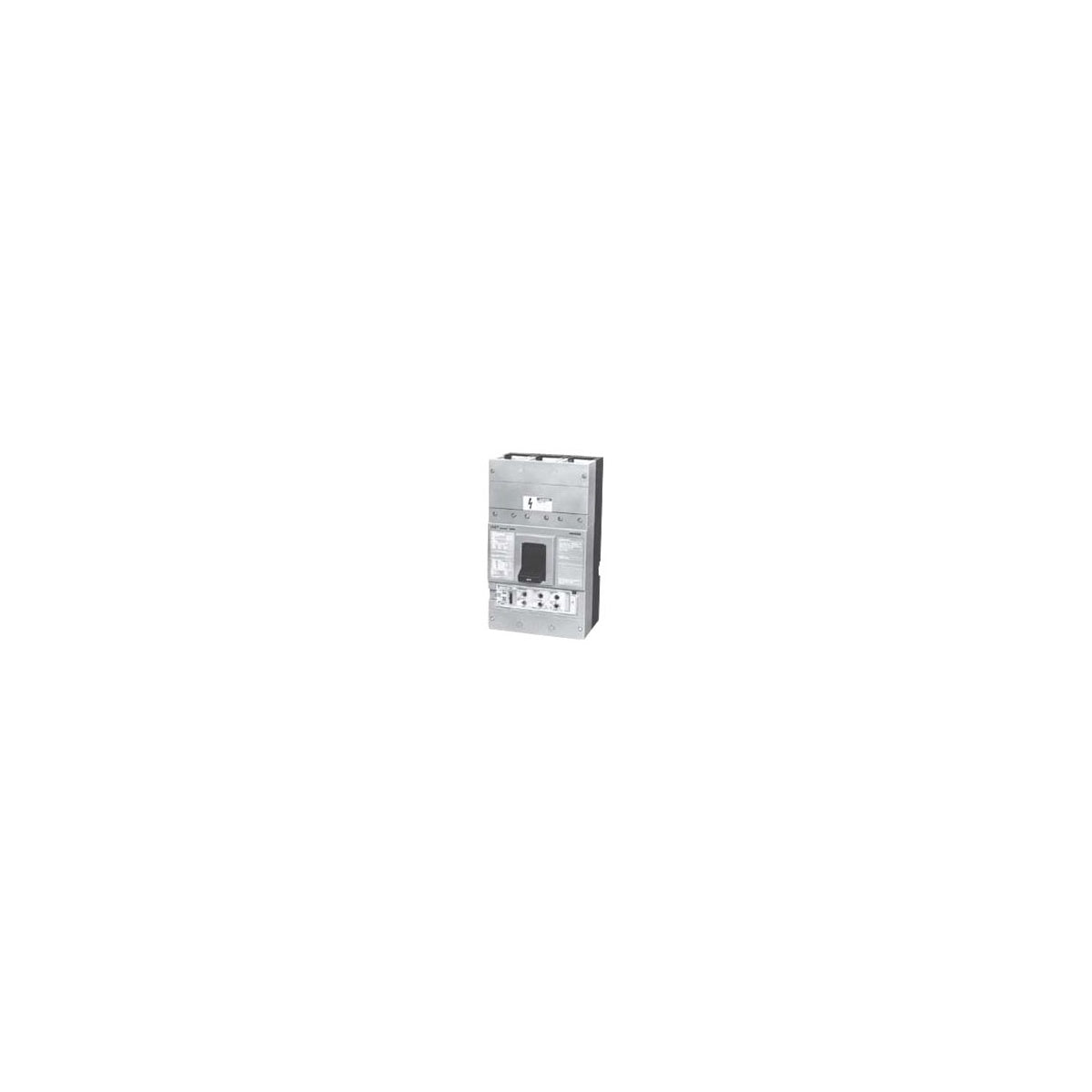

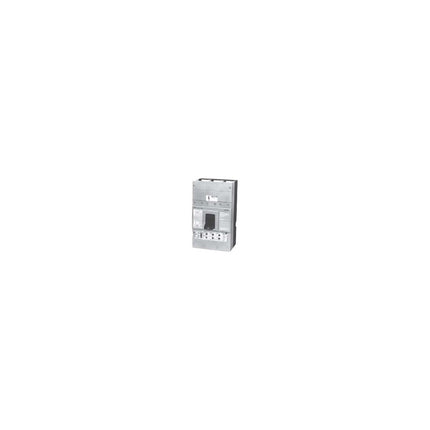

SIEMENS SND69100ANTPAESB BK ND6 3P 600V 1000A LSI LEL 24V ST AUX Molded Case Circuit Breaker

This Siemens SND69100ANTPAESB molded case circuit breaker is designed for industrial electrical distribution and protection. It is suitable for use in switchgear applications requiring reliable interruption of electrical faults at 600V AC with a 1000A maximum current rating. The breaker supports 3-pole configurations and features a Long-Time, Short-Time, Instantaneous, and Ground fault trip unit (LSI) for precise protection coordination. Its 25kA interrupt rating ensures safe operation under fault conditions. This breaker is compatible with standard 40°C operating temperatures and varying enclosure types, making it adaptable for diverse electrical distributor and lighting solutions environments.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: SND69100ANTPAESB
• Application: Standard 40C Breaker
• Frame: SND
• Number of Poles: 3
• Voltage Rating: 600V AC
• Maximum Current Rating: 1000A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 25KAIC
• Operating Temperature: 40°C
• Dimensions (W x H x L): 9 in x 8 in x 16 in
• Product Weight: 67.75 lbs
• Actuator Type: LGS/Shunt/Aux
• Enclosure: Varying
• UPC: 662643551433

Features

• Long-Time, Short-Time, Instantaneous, and Ground Fault (LSI) trip unit for advanced protection
• 3-pole design suitable for three-phase electrical systems
• 600V AC rated for industrial and commercial power distribution
• High interrupting capacity of 25kAIC for fault current interruption
• Compact dimensions for integration into standard switchgear assemblies
• Compatible with standard 40°C operating temperature environments
