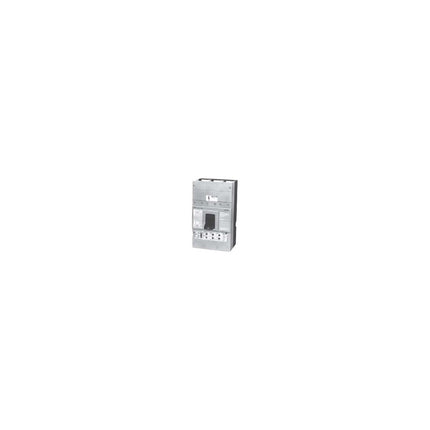

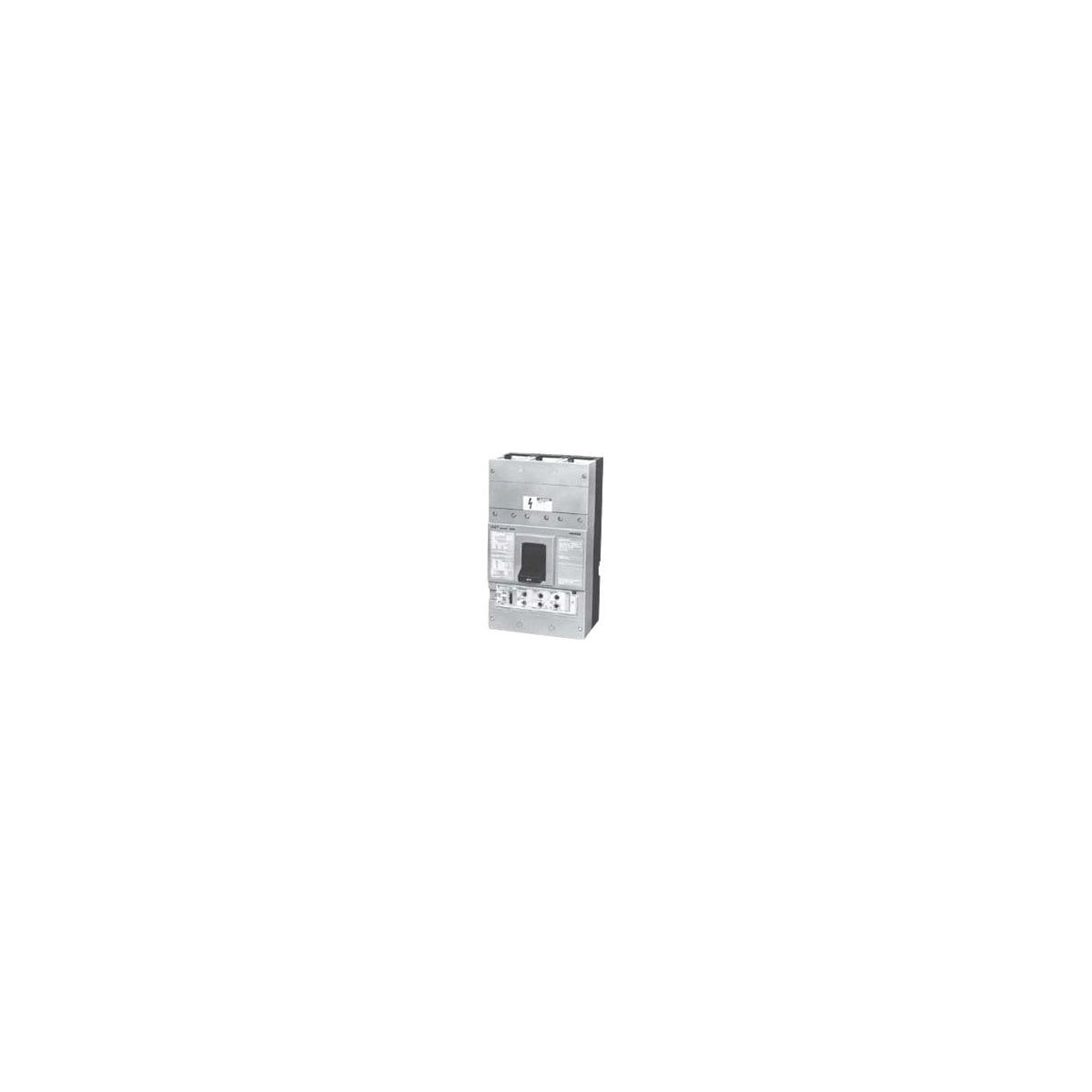

SIEMENS SND69100ANTHSB BRKR ND6 3P 600V 1000A LSI 100 24V ST Molded Case Circuit Breaker

The SIEMENS SND69100ANTHSB is a 3-pole, 600V AC molded case circuit breaker designed for electrical distribution and protection in industrial and commercial applications. It features a digital solid-state Sensitrip LSI trip unit with adjustable settings, suitable for use by electrical distributors and switchgear suppliers requiring reliable overcurrent protection up to 1000 amperes. This breaker is optimized for panelboards, switchboards, and power distribution systems, ensuring safe interruption of overloads and short circuits.

Specifications

• Manufacturer: Siemens
• Model Number: SND69100ANTHSB
• Frame: SND
• Number of Poles: 3
• Voltage Rating: 600V AC
• Current Rating: 1000A
• Interrupt Rating: 25 kAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 75°C
• Dimensions (W x H x L): 9.0 in x 8 in x 16.0 in
• Product Weight: 20.63 lbs
• Actuator: LSI/S07MN6 Accessory
• Enclosure: Varying
• Application: Standard 40C Breaker

Features

• Digital solid-state Sensitrip LSI trip unit with adjustable long time, short time, instantaneous, and ground fault settings for precise protection coordination
• Trip unit adjustable functions include continuous amps setting, long time delay, short time pickup and delay, instantaneous pickup, and ground fault pickup and delay
• Overcenter toggle mechanism providing trip-free operation and clear trip indication
• Suitable for use in individual enclosures, switchboards, and power distribution panelboards
• Pressure wire connectors compatible with copper and aluminum conductors
• UL listed for reverse connection applications (SND6 series)
• Compatible with a range of accessories including shunt trip, undervoltage trip, auxiliary and alarm switches
