SIEMENS SND69100ANGTHZ1 BRKR ND6 3P 600V 1000A LSIG 100 ST
SKU: #16905
Part: #SND69100ANGTHZ1
UPC: 783643631014
SIEMENS SND69100ANGTHZ1 BRKR ND6 3P 600V 1000A LSIG 100 ST
SKU: #16905
Part: #SND69100ANGTHZ1
UPC: 783643631014
Description

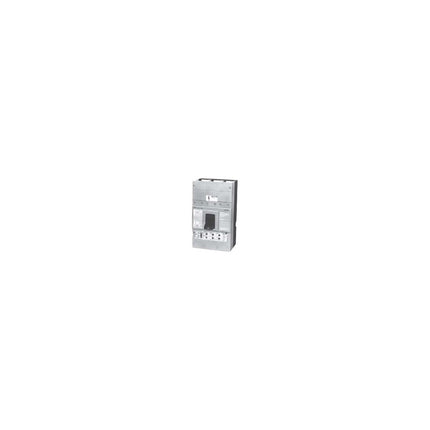

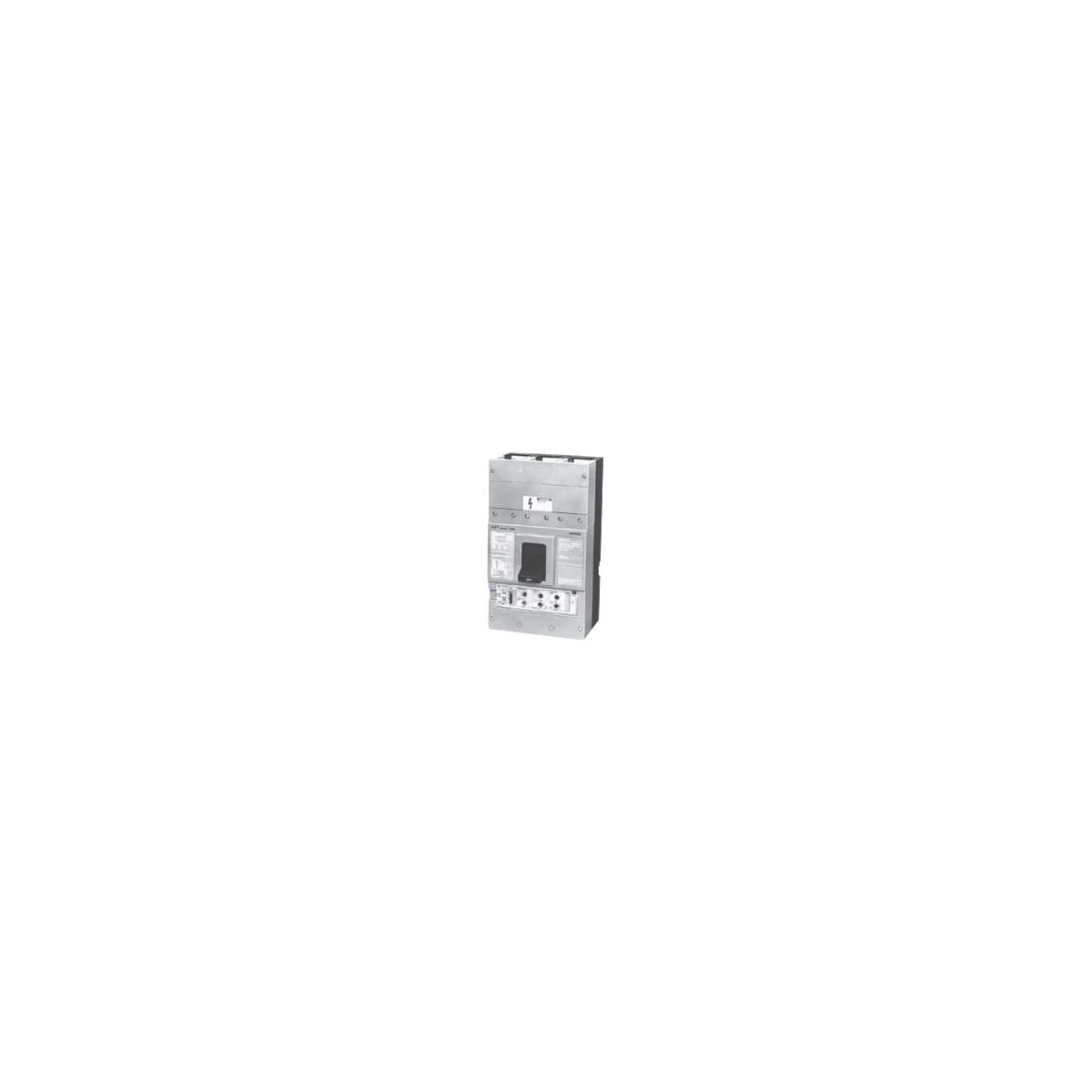

SIEMENS SND69100ANGTHZ1 BRKR ND6 3P 600V 1000A LSIG 100 ST Molded Case Circuit Breaker
The SIEMENS SND69100ANGTHZ1 is a 3-pole, 600V AC molded case circuit breaker designed for industrial electrical distribution and protection applications. Suitable for use in individual enclosures, switchboards, and power distribution panel boards, this breaker offers reliable overload and short circuit protection with a 1000A continuous current rating. It features a digital solid state Sentron Sensitrip III trip unit, providing adjustable long time, short time, instantaneous, and ground fault trip settings for precise system coordination. This product is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring robust and configurable circuit protection.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: SND69100ANGTHZ1
- Application: Standard 40C Breaker
- Frame: SND
- Number of Poles: 3
- Voltage Rating: 600V AC
- Current Rating: 1000A
- Interrupt Rating: 25KAIC
- Frequency Rating: 50/60 Hz
- Operating Temperature: 75°C
- Dimensions (W x H x L): 9.0 in x 8.3 in x 16.0 in
- Product Weight: 67 lbs
- Actuator Type: Varying
- Enclosure Type: Varying
- UPC: 783643631014
Features
- Digital solid state Sentron Sensitrip III trip unit with adjustable long time, short time, instantaneous, and ground fault settings
- 100% rated for continuous current
- Trip-free overcenter toggle mechanism for reliable operation and clear trip indication
- Suitable for use in individual enclosures, panelboards, and switchboards
- UL Listed for reverse connection applications
- Pressure wire connectors available for aluminum or copper wire
- Adjustable trip settings allow precise coordination for system protection
