Description

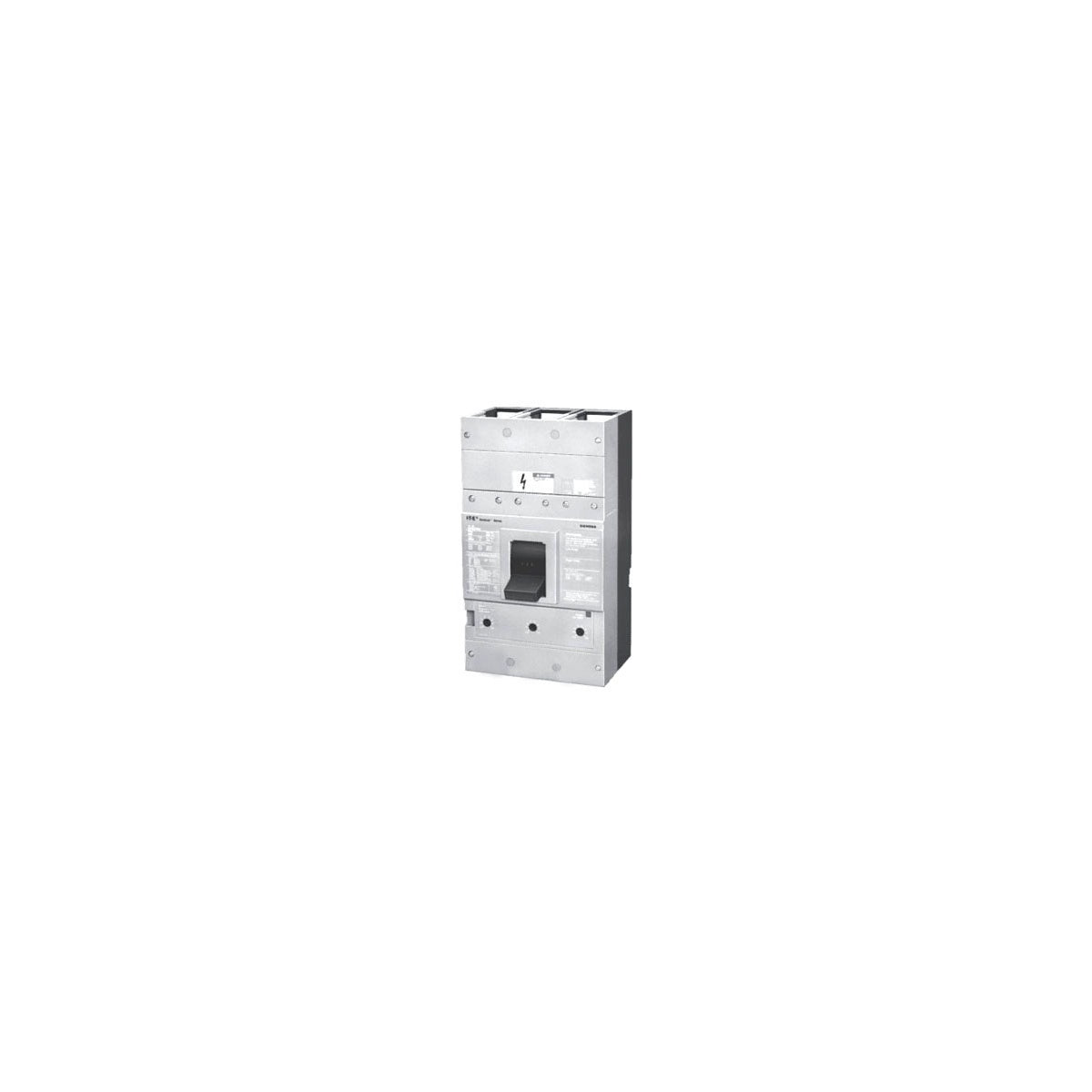

SIEMENS SND69100AGL BRKR ND6 3P 600V 1000A LIG LUG Molded Case Circuit Breaker
The Siemens SND69100AGL is a 3-pole, 600V molded case circuit breaker designed for industrial electrical distribution and protection applications. This breaker is suitable for use by electrical distributors and switchgear suppliers requiring reliable protection for power distribution panels, switchboards, and enclosures. It features line/load lugs installed for secure connections and supports 50/60 Hz frequency operation.
Specifications
- Manufacturer: Siemens
- Catalog Number: SND69100AGL
- Frame: SND
- Number of Poles: 3
- Voltage Rating: 600 V AC
- Current Rating: 1000 A
- Interrupt Rating: 25 kAIC
- Frequency Rating: 50/60 Hz
- Operating Temperature: 75°C
- Application: Standard 40C Breaker
- Dimensions (W x H x L): 9 in x 8 in x 16 in
- Product Weight: 67 lbs
- Connection Type: Line/Load lugs installed
- Actuator: Varying
- Enclosure: Varying
- UPC: 783643015760
Features
- Digital solid state Sensitrip trip unit for advanced circuit protection
- Adjustable trip settings including long time, short time, instantaneous, and ground fault pickup
- Trip-free mechanism ensures breaker cannot be held closed under fault conditions
- UL Listed for reverse connection applications (SND6 series)
- Pressure wire connectors compatible with copper and aluminum conductors available
- Common trip feature opens all poles simultaneously on trip
- Suitable for 3-phase, 3-wire circuits with optional neutral transformer for 4-wire systems
- Mounting flexibility for enclosures, panelboards, and switchboards
