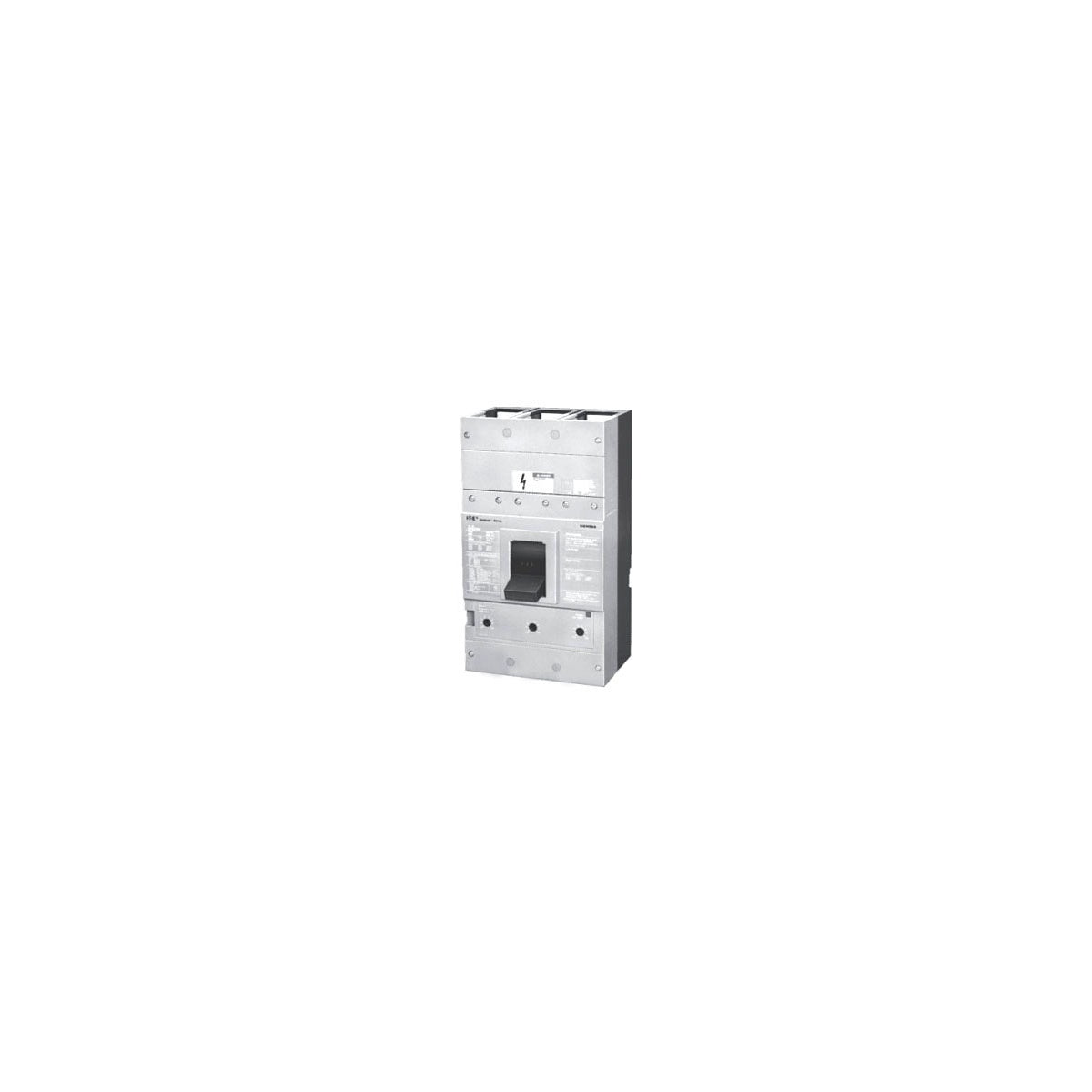

SIEMENS SND69100AGAFSB BRKR ND6 3P 600V 1000A LIG 24V ST AUX Molded Case Circuit Breaker

The SIEMENS SND69100AGAFSB is a 3-pole molded case circuit breaker designed for use in electrical distribution systems, switchboards, and power panelboards. Rated for 600V AC and 1000A continuous current, this breaker offers reliable overcurrent protection with a 25kA interrupting rating at 600V. Suitable for industrial and commercial applications, it integrates seamlessly with wire and cable systems and is compatible with various enclosures. This breaker is equipped with a S07MN64A actuator accessory and supports auxiliary 24V signaling for enhanced control and monitoring by electrical distributors and switchgear suppliers.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: SND69100AGAFSB
• Application: Standard 40C Breaker
• Frame: SND
• Number of Poles: 3
• Voltage Rating: 600V AC
• Current Rating: 1000A
• Interrupt Rating: 25kAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 75°C
• Dimensions (W x H x L): 9 in x 8 in x 16 in
• Product Weight: 20.6790 lbs
• Enclosure: Varying
• Actuator: S07MN64A Accessory

Features

• Solid state Sensitrip trip unit providing adjustable long time, short time, instantaneous, and ground fault settings
• Trip-free overcenter toggle mechanism ensuring breaker cannot be held closed under fault conditions
• Compatible with pressure wire connectors for aluminum or copper conductors
• Auxiliary switches and alarm switch options for enhanced system monitoring
• Designed for use in individual enclosures, switchboards, and power distribution panelboards
• UL Listed for reverse connection applications
