SIEMENS SLVBR5650IG FUS BP RIS 3P4W 200N 600V 400A IP40 ISOG
SKU: #16177
Part: #SLVBR5650IG
UPC: 783643552340
SIEMENS SLVBR5650IG FUS BP RIS 3P4W 200N 600V 400A IP40 ISOG
SKU: #16177
Part: #SLVBR5650IG
UPC: 783643552340
Description

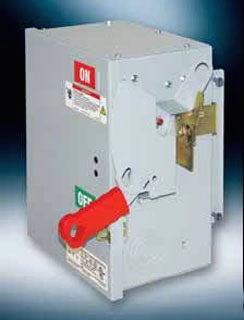

SIEMENS SLVBR5650IG Fusible Bus Plug 600V 400A IP40
The SIEMENS SLVBR5650IG is a heavy-duty fusible bus plug designed for use in electrical distribution systems requiring reliable circuit protection and isolation. This bus plug operates at 600 volts and supports a maximum current rating of 400 amperes. It features a vertical riser orientation and an isolated ground configuration, suitable for applications in commercial and industrial electrical installations. As a product from Siemens, a leading switchgear supplier, it integrates seamlessly into busway systems, providing durable and safe electrical connections.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: SLVBR5650IG
- Voltage Rating: 600V
- Maximum Ampere Rating: 400A
- Configuration: 3-pole, 4-wire with 200% neutral
- Orientation: Vertical (Riser)
- Ground: Isolated Ground (IG)
- IP Rating: IP40
- Dimensions (W x H x L): 21 in x 24 in x 43 in
- Product Weight: 145 lbs
- UPC: 783643552340
Features
- Heavy-duty fusible plug providing circuit protection within busway systems
- Isolated ground design for enhanced electrical safety and noise reduction
- Vertical riser mounting suitable for riser busway applications
- IP40 enclosure rating for protection against solid objects larger than 1 mm
- Compatible with Siemens Sentron SLVB series bus plugs
