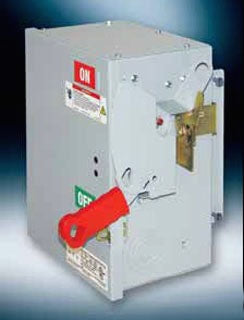

SIEMENS SLVBR5644IG Fusible Bus Plug 200A 600V IP55

The SIEMENS SLVBR5644IG is a heavy-duty fusible bus plug designed for electrical distribution applications requiring reliable circuit protection. It is suitable for use in industrial and commercial settings as part of a comprehensive lighting solutions or wire and cable distribution system. This switchgear component supports a 3-phase, 4-wire configuration with isolated ground, providing 200 amps at 600 volts with an IP55 enclosure rating for enhanced protection against dust and water ingress. Electrical distributors and switchgear suppliers will find this product effective for integration into busway systems requiring durable fusible protection.

Specifications

• Manufacturer: Siemens
• Model Number: SLVBR5644IG
• Configuration: 3Ø, 4W (3-phase, 4-wire)
• Voltage Rating: 600V
• Maximum Ampere Rating: 200A
• Enclosure Rating: IP55
• Ground Designation: Isolated Ground (IG)
• Orientation: Vertical
• Product Weight: 145.81 lbs
• UPC: 783643552319

Features

• Heavy-duty fusible switch for reliable circuit protection
• Isolated ground design to minimize electrical noise and improve safety
• IP55 rated enclosure ensures protection against dust and water ingress
• Vertical orientation for versatile installation in busway systems
• Compatible with 3-phase, 4-wire electrical distribution setups

Downloads & Links

• Spec Sheet
