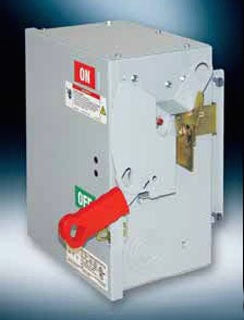

SIEMENS SLVBR5630 Fusible Bus Plug 600V 100A

The Siemens SLVBR5630 is a heavy-duty fusible bus plug designed for electrical distribution systems requiring reliable power control and protection. It is suitable for use in industrial and commercial applications where robust switchgear and busway solutions are needed. This product supports 3-pole, 4-wire configurations with a 200% neutral and operates at 600 volts with a 100 ampere rating. It is rated IP40 for enclosure protection, making it appropriate for indoor electrical distribution environments.

Specifications

• Manufacturer: Siemens
• Model Number: SLVBR5630
• Voltage Rating: 600V
• Max Ampere Rating: 100A
• Configuration: 3-pole, 4-wire with 200% neutral
• Enclosure Rating: IP40
• Orientation: Vertical (Riser)
• Product Weight: 41.89 lbs
• UPC: 783643552203

Features

• Heavy-duty fusible switch for power distribution and circuit protection
• Designed for vertical (riser) busway applications
• Supports 3-phase, 4-wire systems with enhanced neutral capacity (200%)
• IP40 enclosure suitable for indoor electrical distributor environments
• Compatible with Siemens busway and switchgear systems

Downloads & Links

• Spec Sheet
