SIEMENS SLVBR5250G FUS BP RIS 3P4W 200N 240V 400A IP40 INTG
SKU: #15801
Part: #SLVBR5250G
UPC: 783643552036
SIEMENS SLVBR5250G FUS BP RIS 3P4W 200N 240V 400A IP40 INTG
SKU: #15801
Part: #SLVBR5250G
UPC: 783643552036
Description

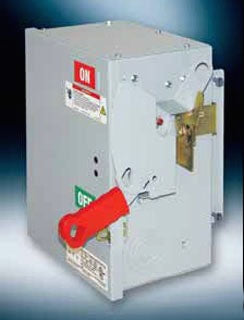

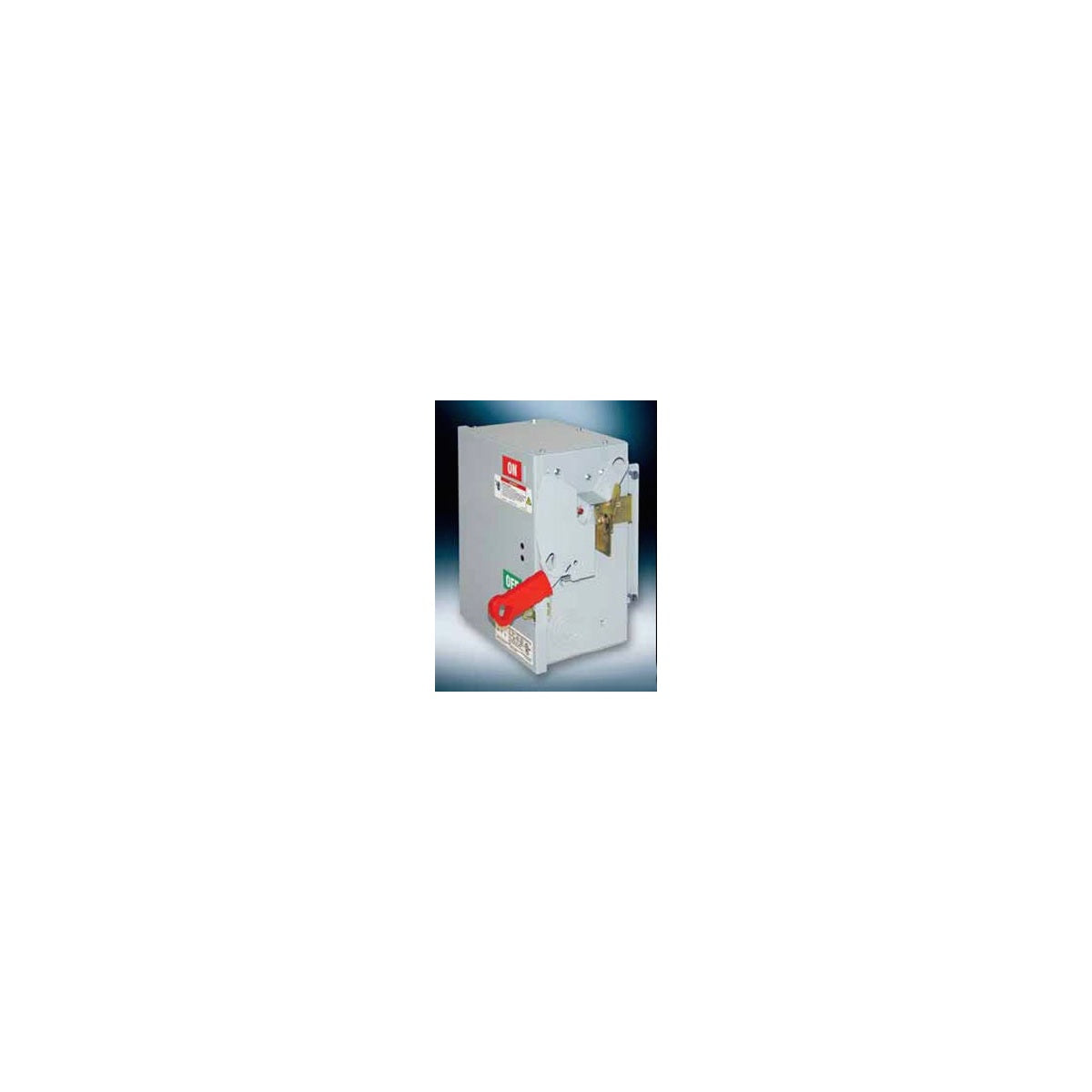

SIEMENS SLVBR5250G Fusible Bus Plug 400A 240V
The SIEMENS SLVBR5250G is a heavy-duty fusible bus plug designed for electrical distribution systems. It is suitable for use in lighting solutions, wire and cable assemblies, and as a component in switchgear supplied by electrical distributors. This bus plug supports a 3-pole, 4-wire configuration with a 200% neutral rating, operating at 240 volts and rated for 400 amps. It features an IP40 enclosure rating and is intended for riser (vertical) applications.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: SLVBR5250G
- Configuration: 3-Pole, 4-Wire, 200% Neutral
- Voltage Rating: 240V
- Maximum Ampere Rating: 400A
- IP Rating: IP40
- Orientation: Riser (Vertical)
- Dimensions (W x H x L): 21 in x 24 in x 43 in
- Product Weight: 145 lbs
- UPC: 783643552036
Features
- Heavy-duty fusible switch design for reliable circuit protection
- Internal ground configuration for enhanced safety
- Designed for 3-phase, 4-wire systems with 200% neutral for balanced load handling
- IP40 rated enclosure suitable for indoor electrical distribution environments
- Riser mount compatible for vertical busway installations
