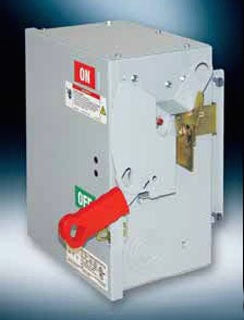

SIEMENS SLVBR5230IG Fusible Bus Plug for Electrical Distribution

The Siemens SLVBR5230IG is a fusible bus plug designed for use in electrical distribution systems, suitable for applications requiring reliable circuit protection and power distribution. This device is part of Siemens’ Sentron SLVB series, serving as a critical component in lighting solutions, wire and cable assemblies, and switchgear supplier offerings for industrial and commercial electrical installations.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: SLVBR5230IG
• Configuration: 3-Pole, 4-Wire with 200% Neutral
• Voltage Rating: 240 Volts
• Maximum Ampere Rating: 100 Amps
• IP Rating: IP40
• Ground Designation: Isolated Ground (IG)
• Orientation: Riser (Vertical)
• Product Weight: 41.88778 lbs
• UPC: 783643551923

Features

• Heavy-duty fusible switch construction for enhanced circuit protection
• Isolated ground design to reduce electrical noise and improve system reliability
• Vertical (riser) mounting orientation suitable for busway systems
• IP40 enclosure rating providing protection against solid objects larger than 1 mm
• Compatible with 3-pole, 4-wire busway configurations including a 200% neutral for balanced power distribution

Downloads & Links

• Spec Sheet
