SIEMENS SLVBR4664G FUS BP RIS 3P4W 600V 600A IP55 INTG
SKU: #15463
Part: #SLVBR4664G
UPC: 783643551763
SIEMENS SLVBR4664G FUS BP RIS 3P4W 600V 600A IP55 INTG
SKU: #15463
Part: #SLVBR4664G
UPC: 783643551763
Description

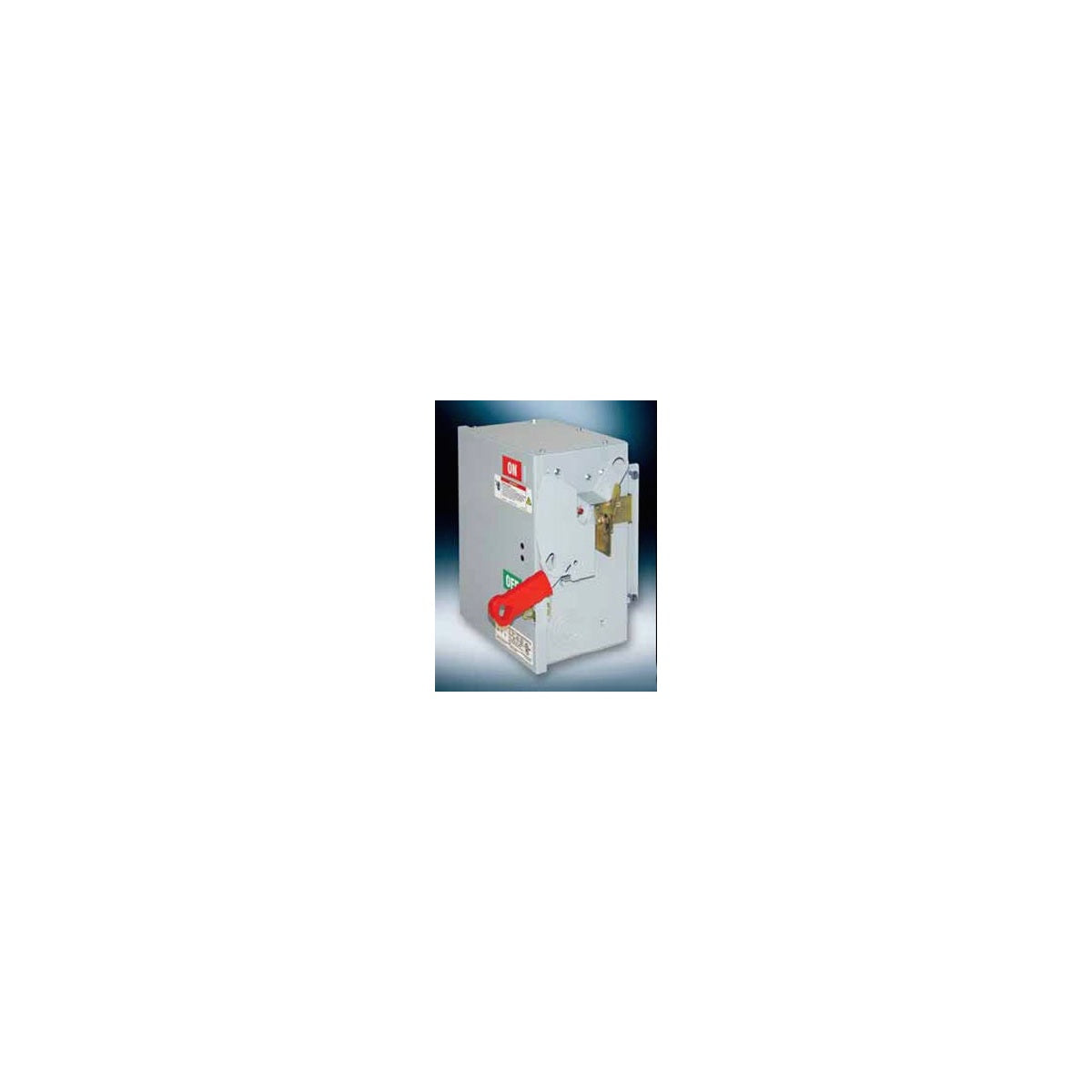

SIEMENS SLVBR4664G Fusible Bus Plug 600V 600A IP55
The SIEMENS SLVBR4664G is a heavy-duty fusible bus plug designed for industrial electrical distribution applications. It operates at 600 volts and supports a maximum current rating of 600 amperes. This device is suitable for use by electrical distributors and switchgear suppliers requiring reliable protection and switching in busway systems. The IP55 enclosure rating ensures protection against dust and water ingress, making it appropriate for demanding environments.
Specifications
- Manufacturer: Siemens
- Model Number: SLVBR4664G
- Voltage Rating: 600V
- Maximum Current Rating: 600A
- Configuration: 3Ø 4W (3-phase, 4-wire)
- Enclosure Rating: IP55
- Orientation: Vertical
- Product Weight: 175 lbs
- Ground Designation: Internal Ground
Features
- Heavy-duty fusible switch for busway protection
- Vertical orientation for installation flexibility
- Designed for 3-phase, 4-wire electrical systems
- IP55 enclosure provides robust environmental protection
- Internal grounding for safety and compliance
