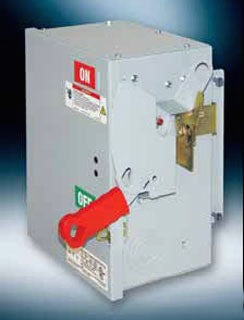

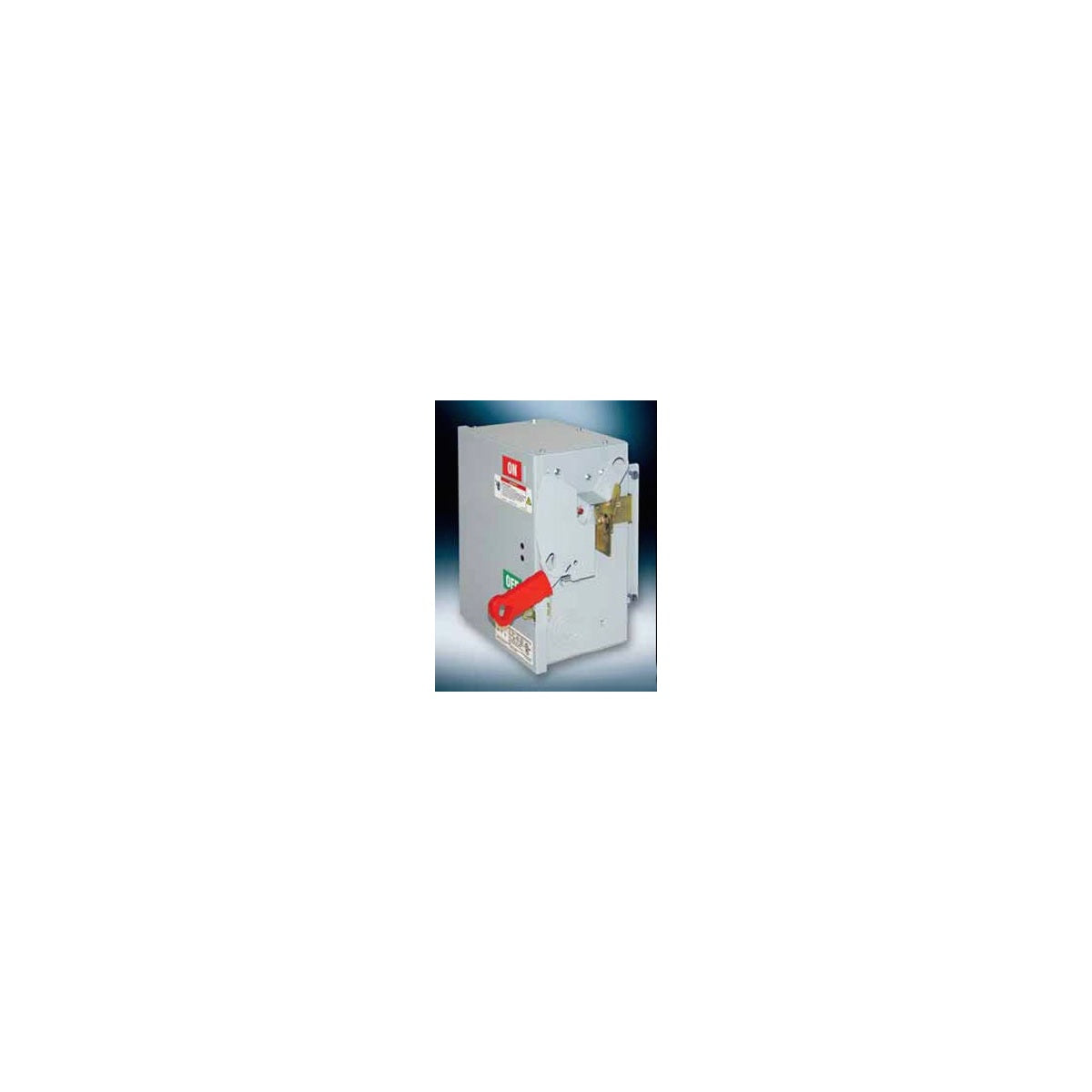

SIEMENS SLVBR4250IG FUS BP RIS 3P4W 240V 400A IP40 Isolated Ground Bus Plug

The Siemens SLVBR4250IG is a fusible bus plug designed for use in electrical distribution systems, suitable for 3-phase, 4-wire configurations at 240 volts. It is engineered for applications requiring a 400 ampere rating with an isolated ground, providing reliable circuit protection and connection within busway systems. This product is ideal for electrical distributors and switchgear suppliers seeking robust and safe lighting solutions and wire and cable integration in commercial and industrial environments.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: SLVBR4250IG
• Voltage: 240V
• Configuration: 3 Pole, 4 Wire
• Maximum Ampere Rating: 400A
• IP Rating: IP40
• Ground: Isolated Ground (IG)
• Orientation: Riser (Vertical)
• Dimensions (W x H x L): 21 in x 24 in x 43 in
• Product Weight: 145 lbs
• UPC: 783643551329

Features

• Heavy duty fusible switch design for secure circuit protection
• Isolated ground construction enhances electrical safety and reduces interference
• Vertical riser orientation suitable for riser busway applications
• IP40 enclosure rating providing protection against solid objects larger than 1mm
• Compatible with Siemens Sentron SLVB bus plug series

Downloads & Links

• Spec Sheet
