SIEMENS SLVBR3254G FUS BP RIS 3P3W 240V 400A IP55 INTG
SKU: #14071
Part: #SLVBR3254G
UPC: 783643550629
SIEMENS SLVBR3254G FUS BP RIS 3P3W 240V 400A IP55 INTG
SKU: #14071
Part: #SLVBR3254G
UPC: 783643550629
Description

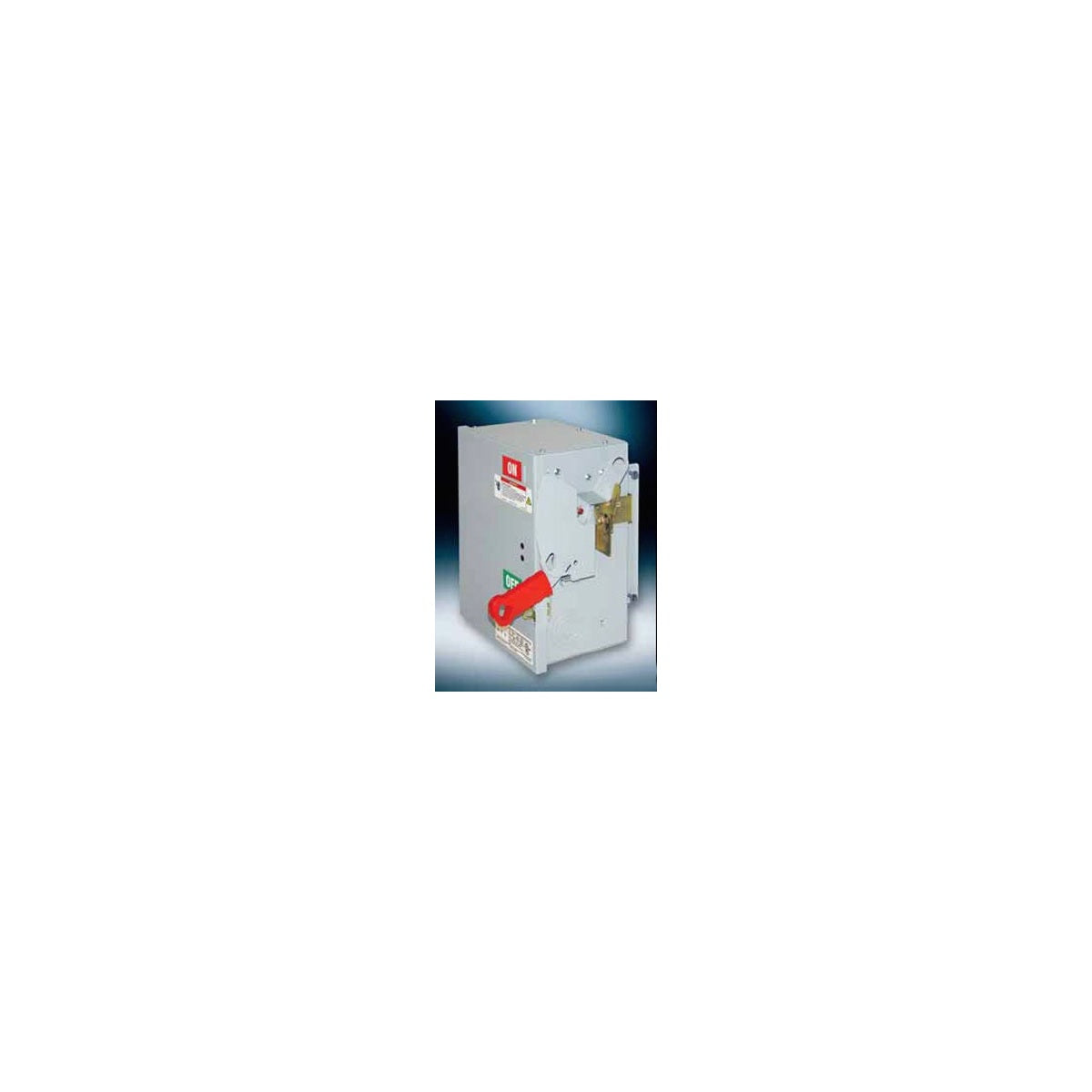

SIEMENS SLVBR3254G Fusible Bus Plug 240V 400A IP55
The SIEMENS SLVBR3254G is a heavy-duty fusible bus plug designed for reliable electrical distribution and protection in commercial and industrial applications. This 3-pole, 3-wire device operates at 240 volts with a maximum amperage rating of 400A and features an IP55 enclosure rating for enhanced dust and water resistance. Suitable for use by electrical distributors and switchgear suppliers, it provides secure and efficient integration within busway systems and switchgear assemblies.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: SLVBR3254G
- Voltage Rating: 240V
- Maximum Amperage: 400A
- Configuration: 3-pole, 3-wire
- Enclosure Rating: IP55
- Orientation: Vertical
- Dimensions (W x H x L): 21 in x 24 in x 43 in
- Product Weight: 145 lbs
Features
- Heavy-duty fusible switch for circuit protection
- Vertical orientation for optimized installation
- Internal grounding for safety and compliance
- Robust enclosure providing IP55 protection against dust and water
