SIEMENS S2024L1125 ES LC ML 20S/24C 1PH 125A N1
SKU: #16458
Part: #S2024L1125
UPC: 040892651003
SIEMENS S2024L1125 ES LC ML 20S/24C 1PH 125A N1
SKU: #16458
Part: #S2024L1125
UPC: 040892651003
Description

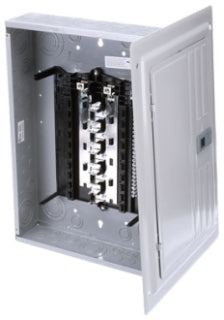

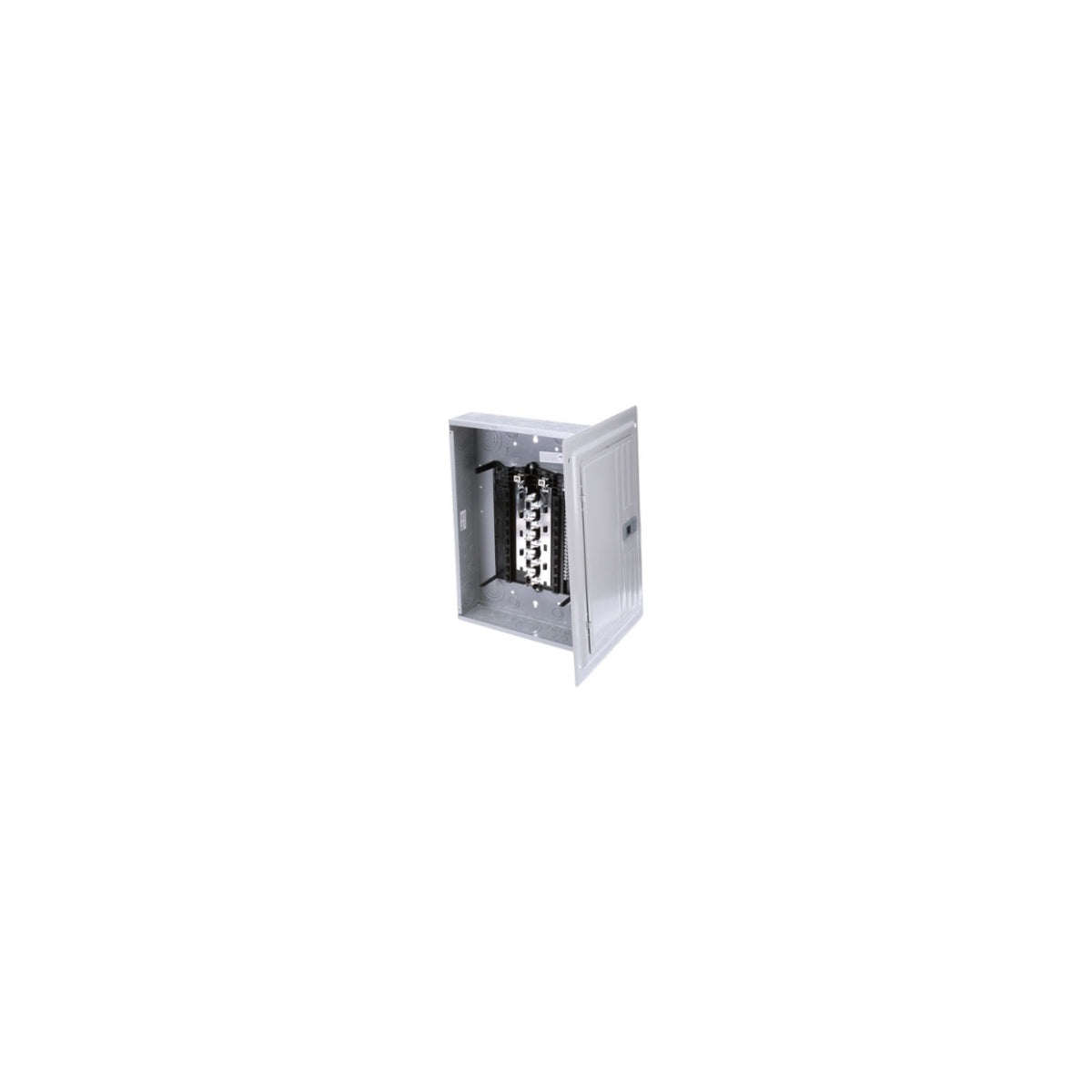

SIEMENS S2024L1125 ES LC ML 20S/24C 1PH 125A N1 Load Center
The SIEMENS S2024L1125 is a 1-phase, 125 Amp main lug load center designed for residential and light commercial electrical distribution. It provides reliable circuit protection and distribution for up to 24 circuits or spaces. This load center is suitable for use as service equipment and is compatible with standard wire and cable sizes. It features a Type 1 indoor enclosure, making it ideal for indoor electrical installations. The product is commonly supplied by electrical distributors and is a key component in lighting solutions and switchgear systems.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: S2024L1125
- Amperage Rating: 125A
- Interrupt Rating: 100kA
- Enclosure Type: TYPE 1 (Indoor)
- Number of Circuits/Spaces: 20 spaces / 24 circuits
- Phase: Single Phase
- UPC: 040892651003
- Product Weight: 29 lbs
Features
- Aluminum bus for reliable conductivity
- Compatible with 1-phase, 3-wire 120/240V AC systems
- Suitable for use as service equipment
- Single side inboard neutral for up to 24 circuits
- Rigid, sturdy base pan for harsh application durability
- Patented INSTA-WIRE™ neutral/ground system for faster installation
- Pre-positioned bond screw eliminates bond strap/screw assemblies
- Mounting tabs on trim for easier installation
- Ships in a single-piece carton for convenience
- Invertible for bottom feed application
