SIEMENS S07MN6L35 BREAKER MD/ND/PD/RD 24VDC ST 35 IN LEAD
SKU: #397302
Part: #S07MN6L35
UPC: 783643216372
SIEMENS S07MN6L35 BREAKER MD/ND/PD/RD 24VDC ST 35 IN LEAD
SKU: #397302
Part: #S07MN6L35
UPC: 783643216372
Description

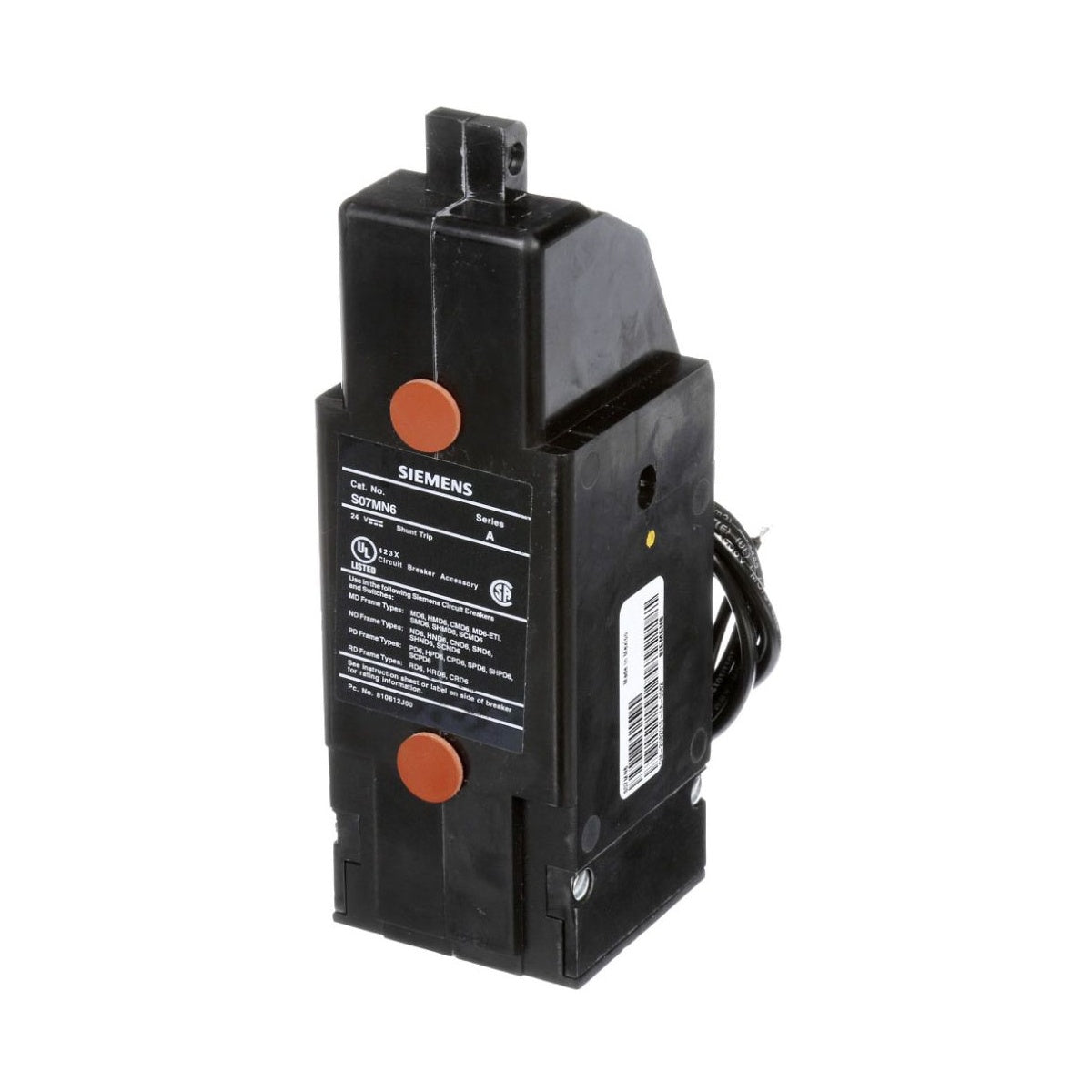

SIEMENS S07MN6L35 BREAKER MD/ND/PD/RD 24VDC ST 35 IN LEAD – Shunt Trip Accessory
The Siemens S07MN6L35 is a shunt trip accessory designed for use with MD, ND, PD, and RD frame molded case circuit breakers. This accessory enables remote tripping of circuit breakers at 24 VDC control voltage, enhancing control and safety in electrical distribution systems. It is suitable for electrical distributors and switchgear suppliers seeking reliable internal accessories to complement their circuit breaker installations.
Specifications
- Application: Accessory
- Manufacturer: Siemens
- Manufacturer Part #: S07MN6L35
- Frame Compatibility: MD/ND/PD/RD
- Actuator Type: Shunt Trip
- Control Voltage: 24 VDC
- Dimensions (W x H x L): 6.0 in x 7 in x 4.0 in
- Product Weight: 1.25 lbs
- UPC: 783643216372
Features
- Compatible with MD, ND, PD, and RD frame circuit breakers
- Enables remote tripping functionality for enhanced circuit breaker control
- Mounts on either left or right hand poles of circuit breakers except when mechanical interlock is used
- Designed for use in industrial and commercial electrical distribution systems
- Built to order with typical lead time of 6–8 weeks
