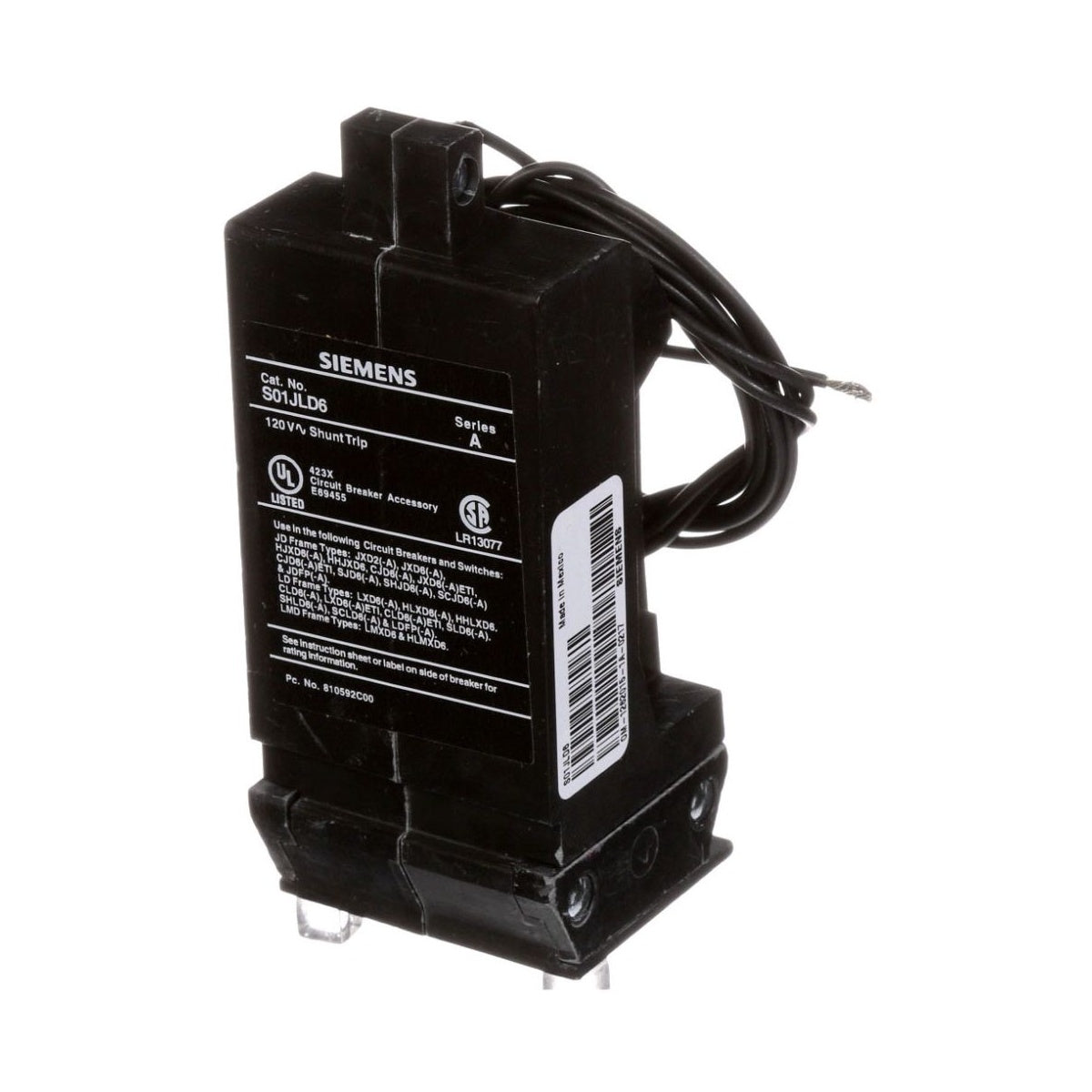

SIEMENS S01JLD6L72 Breaker Accessory with 120V Shunt Trip Leads

The SIEMENS S01JLD6L72 is a molded case circuit breaker accessory designed for use with JD, LD, and LMD frame circuit breakers. This accessory features a 120V shunt trip with 72-inch leads, enabling remote tripping of the breaker. It is suitable for electrical distributors and switchgear suppliers requiring reliable and compatible internal accessories for circuit breakers in industrial and commercial electrical systems.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: S01JLD6L72
• Application: Accessory
• Frame Compatibility: JD/LD/LMD
• Control Voltage: 120V AC
• Lead Length: 72 inches
• Dimensions: 5 in (Height) x 5 in (Width) x 4 in (Length)
• Product Weight: 0.6 lbs
• UPC: 783643543706

Features

• Shunt trip accessory enabling remote breaker trip function
• Compatible with multiple Siemens molded case circuit breaker frames including JD, LD, and LMD
• Pre-wired with 72-inch leads for flexible installation
• UL and CSA listed for safety compliance
• Designed for use in industrial and commercial electrical distribution systems

Downloads & Links

• Spec Sheet
