SIEMENS RV463G BUS PLUG FUSIBLE 100A 600V 4P GND
SKU: #407622
Part: #RV463G
UPC: 783643230194
SIEMENS RV463G BUS PLUG FUSIBLE 100A 600V 4P GND
SKU: #407622
Part: #RV463G
UPC: 783643230194
Description
SIEMENS RV463G BUS PLUG FUSIBLE 100A 600V 4P GND – Busway Power Distribution

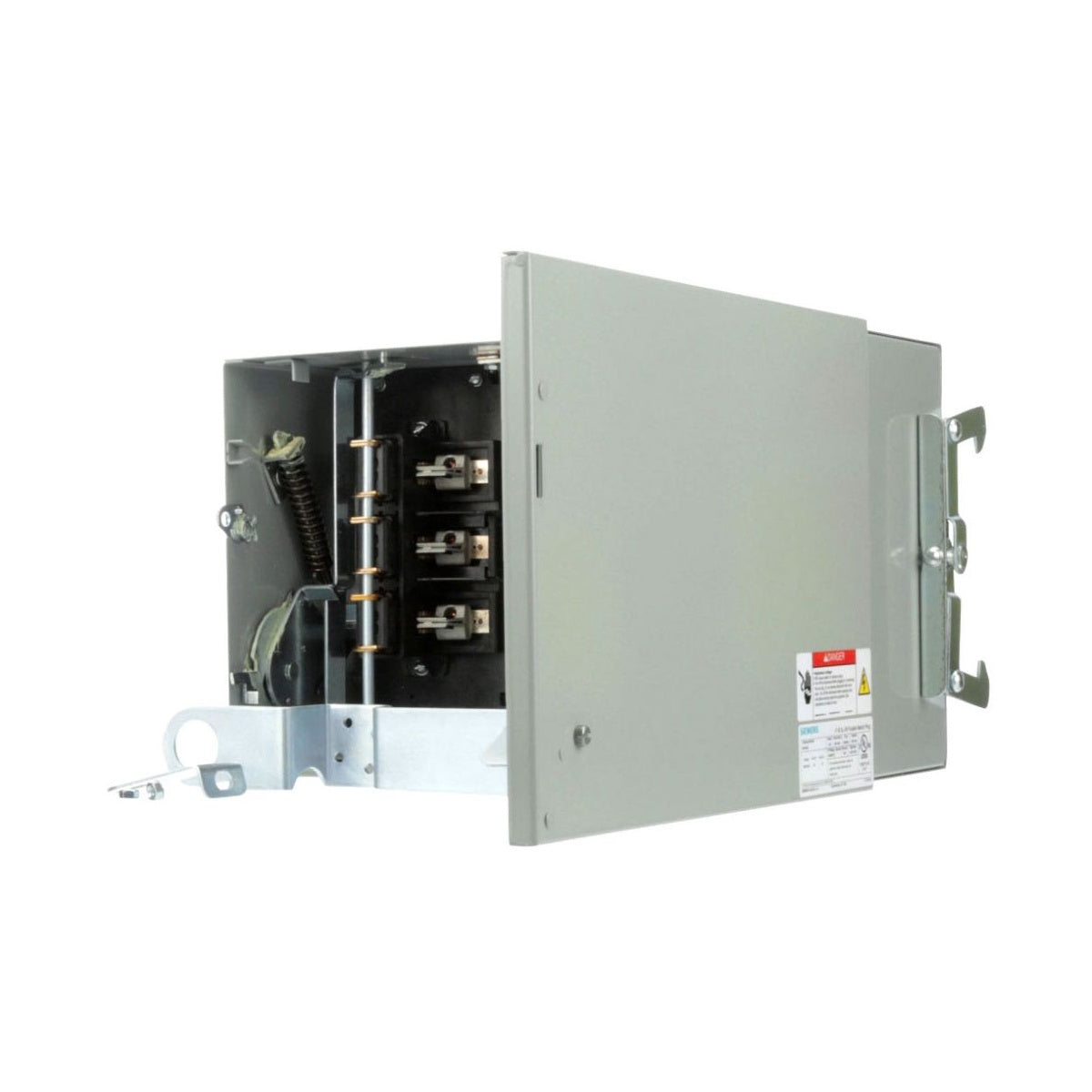

The Siemens RV463G Bus Plug Fusible is designed for use in busway power distribution systems, providing reliable circuit protection and connection for electrical distributors and switchgear suppliers. Rated for 100 amperes and 600 volts, this 4-pole with ground (4P GND) bus plug is suitable for integration in industrial and commercial electrical wiring and lighting solutions requiring robust fusible protection.
Specifications
- Manufacturer: Siemens
- Manufacturer Part Number: RV463G
- Voltage Rating: 600V AC
- Amperage Rating: 100A
- Poles: 4 (including ground)
- Weight: 28.81 lbs
- UPC: 783643230194
Features
- Fusible bus plug designed for use with busway systems manufactured after March 1986 with internal ground bus
- Floor-operable switch plug with line terminal protection
- Compatible with Class J and Class T fuse kits for enhanced circuit protection
- Provides secure connection and disconnection for busway electrical distribution
