SIEMENS QJ23M150 BRKR QJ2 3P 240V 150A 10KA 50C
SKU: #12056
Part: #QJ23M150
UPC: 783643198449
SIEMENS QJ23M150 BRKR QJ2 3P 240V 150A 10KA 50C
SKU: #12056
Part: #QJ23M150
UPC: 783643198449
Description

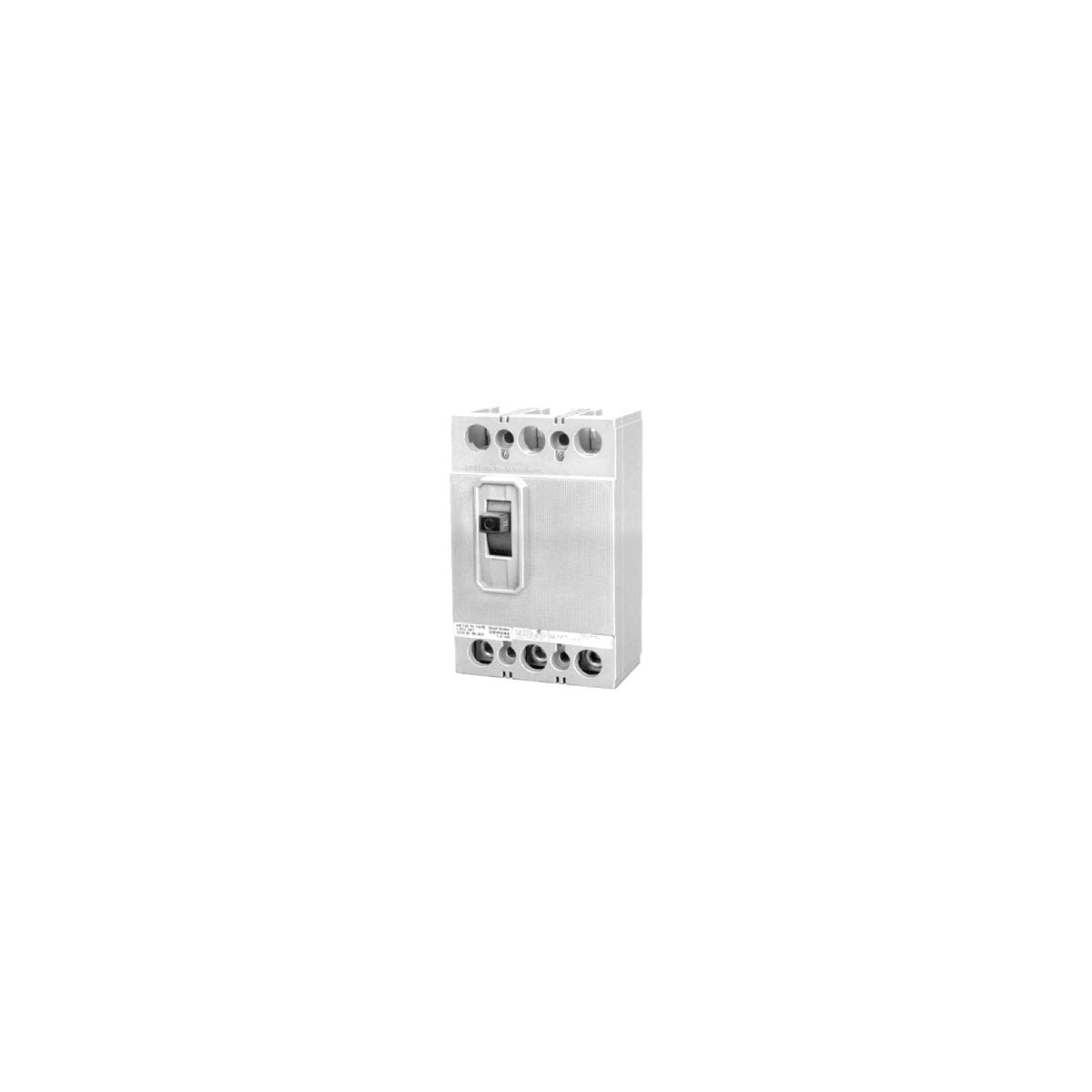

SIEMENS QJ23M150 BRKR QJ2 3P 240V 150A 10KA 50C Molded Case Circuit Breaker
The Siemens QJ23M150 is a molded case circuit breaker designed for general electrical distribution applications. This 3-pole breaker operates at 240V AC with a continuous current rating of 150A and an interrupting rating of 10kA, suitable for protecting electrical circuits in industrial and commercial environments. It is ideal for electrical distributors and switchgear suppliers requiring reliable, UL-listed circuit protection solutions.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: QJ23M150
- Number of Poles: 3
- Voltage Rating: 240V AC
- Current Rating: 150A
- Interrupt Rating: 10KA
- Frequency Rating: 50/60 Hz
- Dimensions (W x H x L): 5.0 in x 4 in x 8.0 in
- Product Weight: 4.2 lbs
- Application: General Application
- UPC: 783643198449
Features
- UL Listed for reverse feed applications
- 50°C ambient calibration
- Includes load side TA10300 lugs for 75°C wire
- HACR rated for HVAC applications
- Internal accessories available for fine tuning circuit control (3-pole only)
- Compatible with Siemens external operating and mounting accessories
- Designed for use in general electrical distribution and protection
