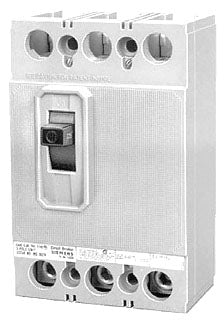

SIEMENS QJ23B225H00S07 Molded Case Circuit Breaker

The SIEMENS QJ23B225H00S07 is a 3-pole, 240V molded case circuit breaker designed for general electrical distribution applications. Suitable for use by electrical distributors and switchgear suppliers, this breaker provides reliable protection in industrial and commercial lighting solutions and wire and cable systems. It features a 225A frame with a high interrupt rating, ensuring safety and performance in demanding electrical environments.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: QJ23B225H00S07
• Application: General Application
• Number of Poles: 3
• Voltage Rating: 240V AC
• Frame: 225A
• Interrupt Rating: 42 kA
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Material: Molded Case Circuit Breaker
• Dimensions (W x H x L): 5 in x 5 in x 7 in
• Product Weight: 4.7 lbs
• UPC: 783643194441

Features

• UL Listed for reverse feed applications
• HACR rated for HVAC equipment compatibility
• Internal accessories available for enhanced control (factory installed)
• Suitable for use in electrical distribution systems requiring reliable circuit protection
• High interrupting capacity of 42 kA for industrial and commercial applications
