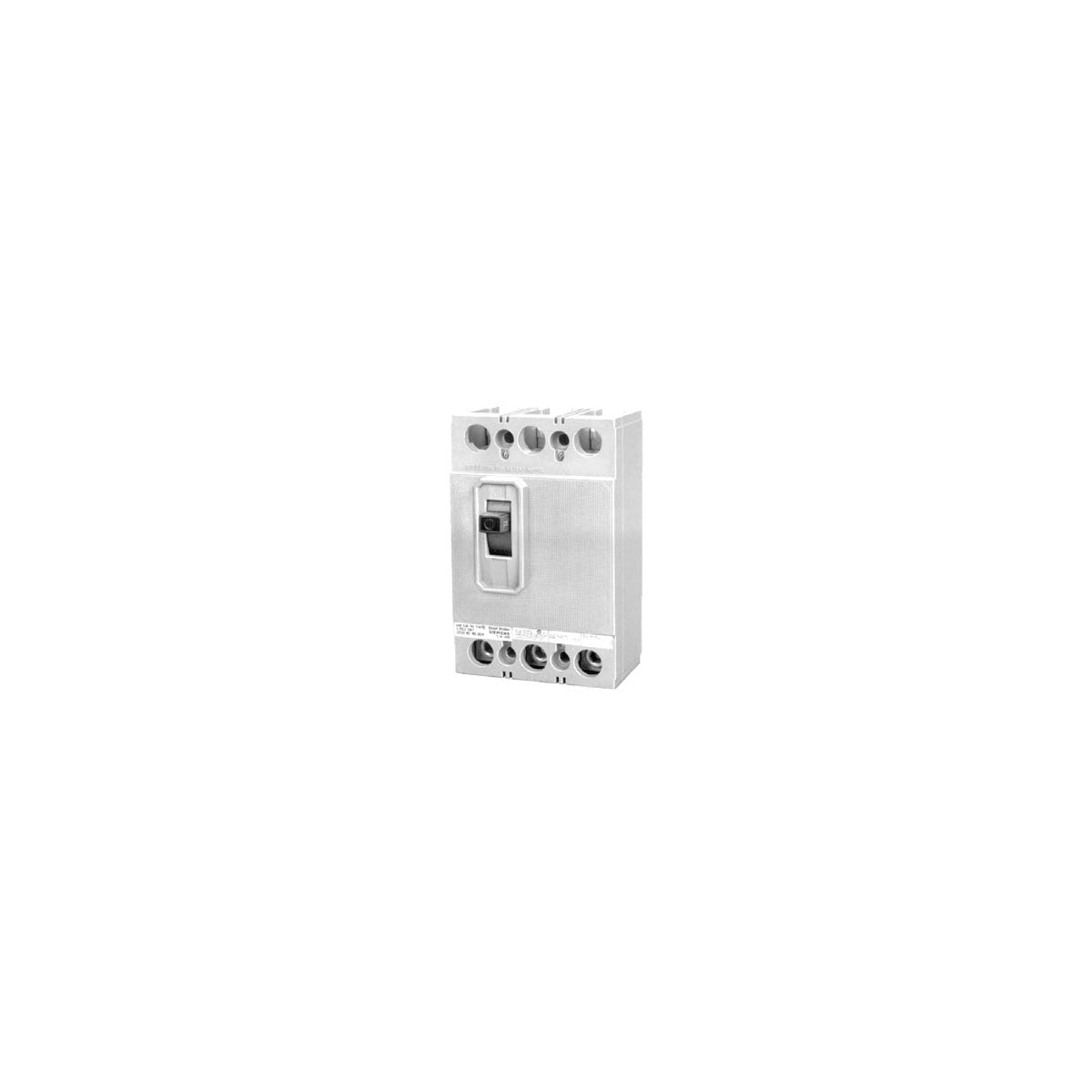

SIEMENS QJ23B175H00S01 Molded Case Circuit Breaker

The SIEMENS QJ23B175H00S01 is a 3-pole molded case circuit breaker designed for general electrical distribution applications. It offers reliable protection in electrical systems, suitable for use by electrical distributors and switchgear suppliers requiring robust lighting solutions, wire and cable protection, and industrial control components. This breaker supports 240V AC operation at 50/60 Hz frequency with a high interrupt rating, ensuring system safety and continuity.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: QJ23B175H00S01
• Frame: 225A
• Number of Poles: 3
• Voltage Rating: 240V AC
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 42 kA
• Material: Molded Case Circuit Breaker
• Connection: Load End Standard (CU/AL) Lugs
• Operating Temperature: 40°C
• Dimensions (W x H x L): 5 in x 5 in x 7 in
• Product Weight: 4 lbs
• UPC: 783643162174

Features

• UL Listed for reverse feed applications
• Load side TA10300 lugs included for 75°C wire
• High interrupting capacity suitable for general application
• Compact dimensions for versatile mounting in switchgear assemblies
• Factory-installed internal accessories available for enhanced control (e.g., shunt trips, auxiliary switches)
