SIEMENS QJ23B060L BRKR QJ2 3P 240V 60A 10KA LUGS
SKU: #10388
Part: #QJ23B060L
UPC: 783643088276
SIEMENS QJ23B060L BRKR QJ2 3P 240V 60A 10KA LUGS
SKU: #10388
Part: #QJ23B060L
UPC: 783643088276
Description

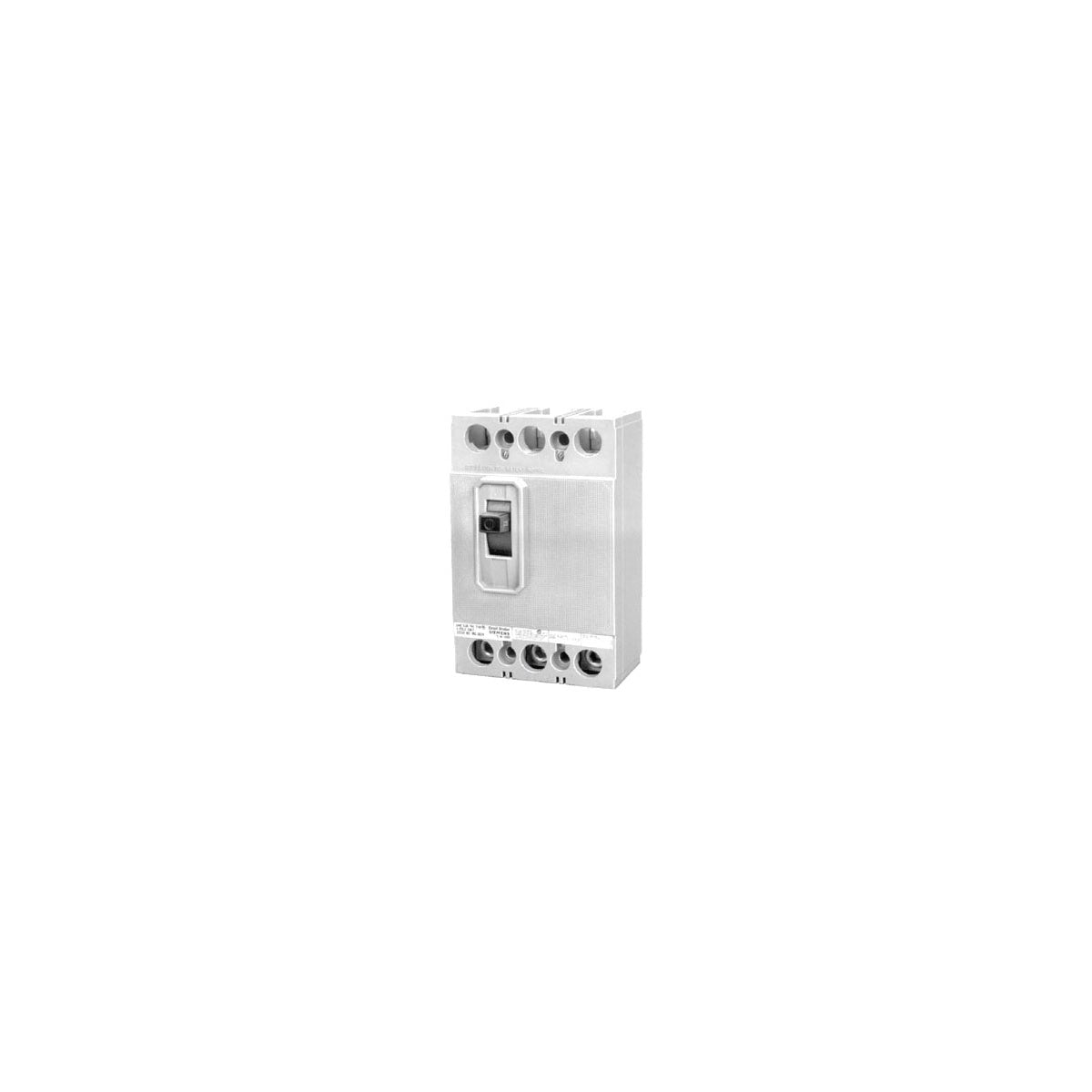

SIEMENS QJ23B060L Molded Case Circuit Breaker
The SIEMENS QJ23B060L is a 3-pole, 240V molded case circuit breaker designed for general electrical distribution applications. It provides reliable overcurrent protection with a 60A rating and a 10kA interrupting capacity. This breaker is suitable for use by electrical distributors and switchgear suppliers requiring robust wire and cable protection in commercial and industrial lighting solutions and electrical systems.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: QJ23B060L
- Frame: 225A
- Number of Poles: 3
- Voltage Rating: 240V AC
- Current Rating: 60A
- Interrupt Rating: 10KA
- Frequency Rating: 50/60 Hz
- Material: Molded Case Circuit Breaker
- Connection: Line & Load Standard (CU/AL) Lugs
- Operating Temperature: 40°C
- Dimensions (W x H x L): 5 in x 5 in x 7 in
- Product Weight: 4 lbs
- UPC: 783643088276
Features
- UL Listed for reverse feed applications
- Standard line and load lugs suitable for copper and aluminum wiring
- Compact size facilitating easy installation in switchgear and panelboards
- Designed for general application in electrical distribution systems
