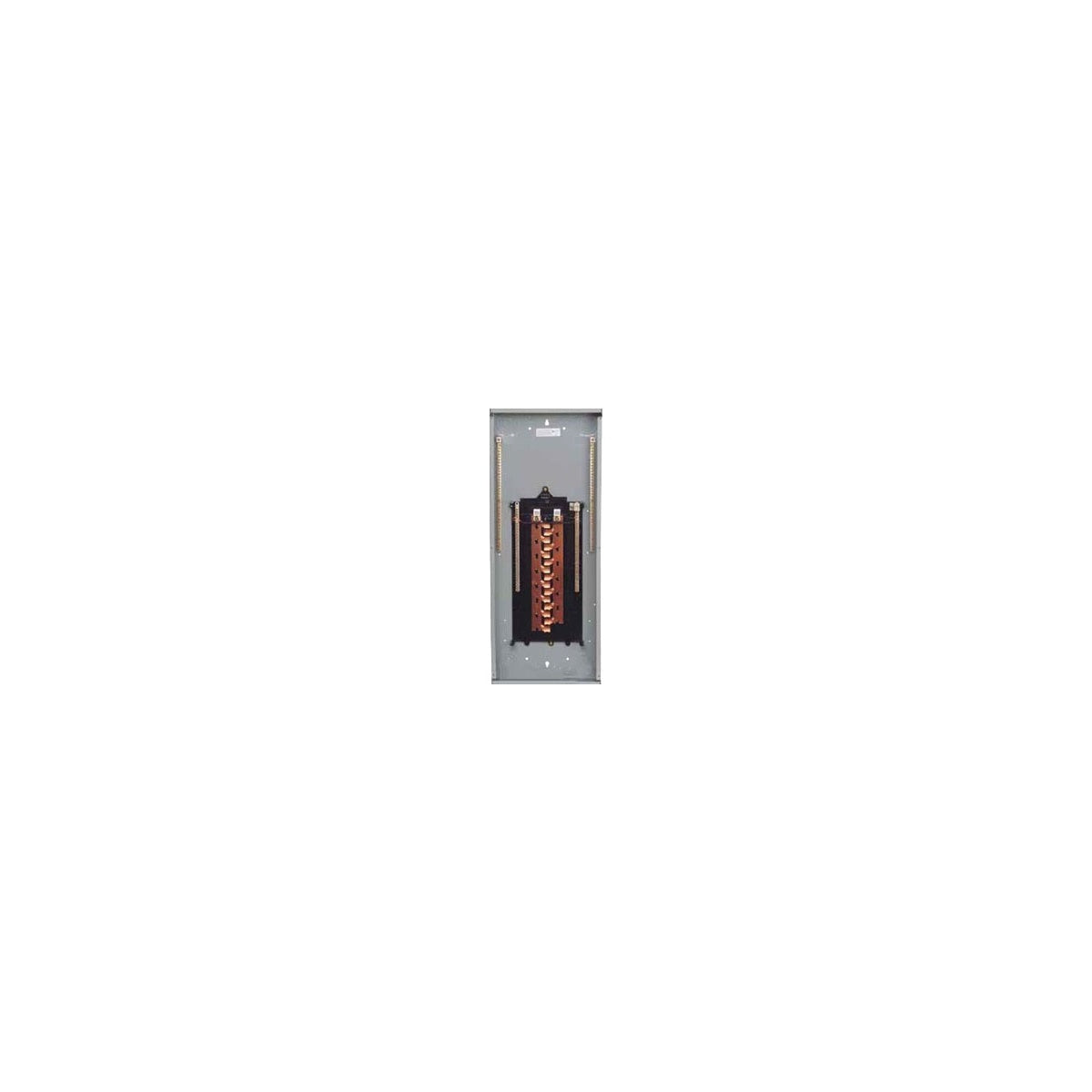

SIEMENS PW3054L1200CU PL LC ML 30S/54C 1PH 200A N3R Load Center

The Siemens PW3054L1200CU is a PL Series 1-phase main lug load center designed for residential and light commercial electrical distribution. It features a NEMA Type 3R outdoor enclosure suitable for harsh environments, offering protection against rain, sleet, and external ice formation. This load center is ideal for electrical distributors and switchgear suppliers seeking reliable, copper bus load centers with a 200 ampere rating and 100,000A interrupt rating, ensuring safe and efficient power distribution in lighting solutions and wire and cable installations.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: PW3054L1200CU
• Amperage Rating: 200 Amps
• Interrupt Rating: 100,000 A
• Enclosure: NEMA Type 3R (Outdoor)
• Phase: Single Phase, 3-Wire
• Bus Bar Material: Copper
• Number of Spaces: 30
• Number of Circuits: 54
• Product Weight: 38 lbs
• UPC: 040892650792

Features

• Outdoor-rated NEMA 3R enclosure with slide hinge door for easy installation and maintenance
• Convertible design allowing main lug configuration
• Copper bus bars for enhanced conductivity and durability, recommended for severe environments
• Two factory-installed ground bars for reliable grounding
• Patented Insta-Wire‚Ñ¢ neutral/ground system for faster installation with screws backed out and visible neutral/ground system aiding conductor insertion
• Mounting tabs on the trim hold it in place, freeing hands for screw driving
• Rigid, sturdy base pan for ruggedness in harsh applications
• Compatible with WireGuide breakers for reduced installation time (WireGuide suffix available)

Downloads & Links

• Spec Sheet
