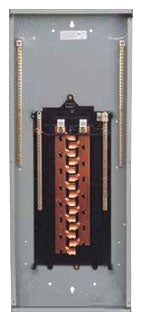

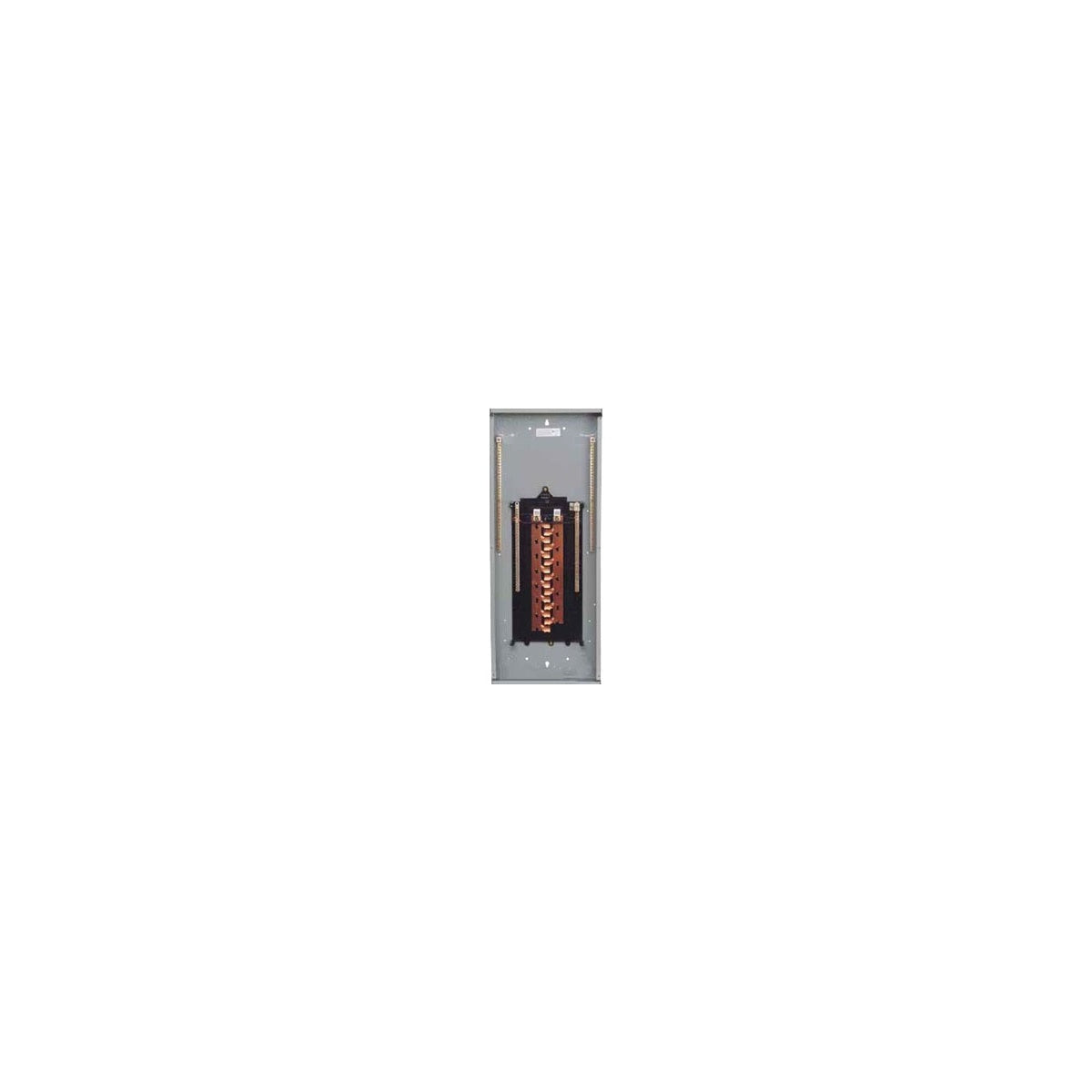

SIEMENS PW3040B1125CU PL LC MB 30S/40C 1PH 125A N3R Load Center

The Siemens PW3040B1125CU is a PL Series 1-phase, 3-wire load center designed for outdoor use with a NEMA Type 3R enclosure. It provides a main breaker rating of 125 amps and a 22,000 amperes interrupt rating, suitable for residential and light commercial electrical distribution. This load center is engineered for durability and ease of installation, featuring copper bus bars and convertible device configurations. It is ideal for electrical distributors and switchgear suppliers offering reliable lighting solutions and wire and cable management.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: PW3040B1125CU
• Amperage Rating: 125A
• Circuit Breaker Type: 125A
• Interrupt Rating: 22,000 A
• Enclosure: TYPE 3R (Outdoor)
• Phase: Single-phase (1PH), 3-wire
• Spaces: 30
• Circuits: 40
• Bus Bar Material: Copper
• Product Weight: 31 lbs
• UPC: 040892818482

Features

• Convertible design allowing main lug to main breaker and vice versa
• Invertible for bottom feed application
• Patented INSTA-WIRE‚Ñ¢ neutral/ground system for faster installation with screws backed out and visible neutral/ground system
• Two factory installed ground bars for enhanced grounding flexibility
• Combination head screws on neutrals, ground, trim, upper pan, and bond screws for installation flexibility
• Rigid, sturdy base pan for ruggedness in harsh environments
• Outdoor enclosure with slide hinge door removable by backing out a single screw for easy installation
• Compatible with WireGuide breakers (available with "WG" suffix)
