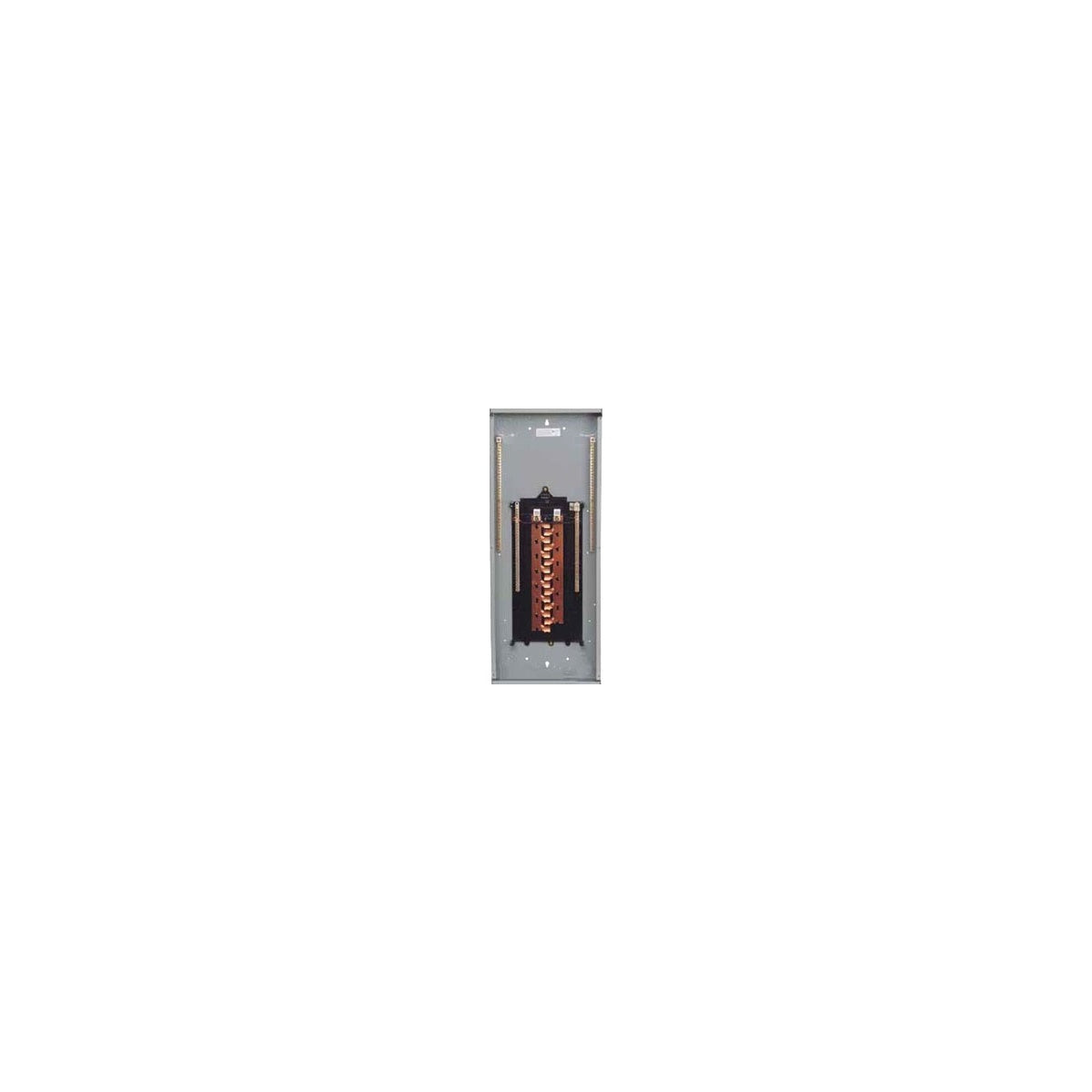

SIEMENS PW3040B1100CU PL LC MB 30S/40C 1PH 100A N3R Load Center

The Siemens PW3040B1100CU is a PL Series outdoor load center designed for 1-phase, 3-wire, 120/240 Volt AC electrical distribution. It features a factory-installed 100 Amp main breaker with a 22,000 Amp interrupt rating, suitable for residential and light commercial applications. This load center is constructed with a TYPE 3R outdoor enclosure, providing protection against rain and sleet, making it ideal for exterior installations. It includes copper bus bars for enhanced conductivity and durability. The product is compatible with Siemens circuit breakers and supports up to 40 circuits, serving as a reliable component for electrical distributors and switchgear suppliers focused on lighting solutions and wire and cable distribution.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: PW3040B1100CU
• Amperage Rating: 100 Amps
• Circuit Breaker Type: 100A Main Breaker
• Interrupt Rating: 22,000 Amps
• Enclosure Type: TYPE 3R (Outdoor)
• Number of Circuits: 40
• Phase: 1-Phase, 3-Wire
• Product Weight: 31 lbs
• UPC: 040892818475

Features

• PL Series convertible and invertible load center with Insta-wire neutral and ground system for faster installation
• Copper bus bars for superior conductivity and corrosion resistance
• Factory-installed main breaker for simplified installation and service equipment suitability
• Outdoor rated TYPE 3R enclosure with slide hinge door for easy access and maintenance
• Supports Siemens WireGuide breakers with shortened neutral wires (WireGuide option available separately)
• Pre-positioned bond screw eliminates bond strap and screw assemblies, reducing installation errors
• Mounting tabs on trim free up hands for easier trim screw installation
• Suitable for use as service entrance equipment when installed per NEC guidelines
