SIEMENS NEB2B015B BRKR NEB 15A 2P 480V 35K LD LUG
SKU: #6552
Part: #NEB2B015B
UPC: 783643558298
SIEMENS NEB2B015B BRKR NEB 15A 2P 480V 35K LD LUG
SKU: #6552
Part: #NEB2B015B
UPC: 783643558298
Description

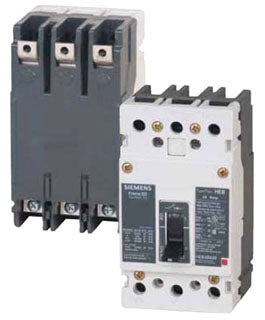

SIEMENS NEB2B015B Circuit Breaker 15A 2-Pole 480V
The SIEMENS NEB2B015B is a molded case circuit breaker designed for panelboard mounting, suitable for electrical distributors and switchgear suppliers requiring reliable overcurrent protection. This 2-pole breaker operates at 15 amps with a rated voltage of 480V and a breaking capacity of 35kA RMS symmetrical amperes, making it appropriate for wire and cable protection in commercial and industrial lighting solutions and electrical distribution systems.
Specifications
- Manufacturer: Siemens
- Manufacturer Part Number: NEB2B015B
- Number of Poles: 2
- Continuous Current Rating: 15 A @ 40°C
- Interrupting Rating: 35 kA RMS symmetrical amperes at 480V AC
- Voltage Rating: 480V AC
- Weight: 1.9 lbs
- Mounting Type: Panelboard Mount
- Terminal Lugs: Load side lugs included (factory installed)
- Approvals: UL, CSA, IEC, CE Marked
- Frame Type: NEB (EG Frame, low-tab version)
- Wire Size Compatibility: #14–1/0 AWG copper/aluminum wire
- Torque Rating: 35 lb-in for 14–10 AWG copper wire
Features
- HACR, SWD, and HID rated for compatibility with heating, air conditioning, refrigeration, and lighting loads
- Standard load side terminal lugs for secure wire connections
- Compact EG frame design optimized for panelboard mounting
- Available internal accessories including shunt trip, undervoltage release, auxiliary and alarm switches (field installable)
- Compliant with UL489, CSA, IEC 60947-2 standards
