SIEMENS MP360ST BREAKER 60A 3P 240V 10K MP-T 120V SHUNT
SKU: #6280
Part: #MP360ST
UPC: 040892538601
SIEMENS MP360ST BREAKER 60A 3P 240V 10K MP-T 120V SHUNT
SKU: #6280
Part: #MP360ST
UPC: 040892538601
Description

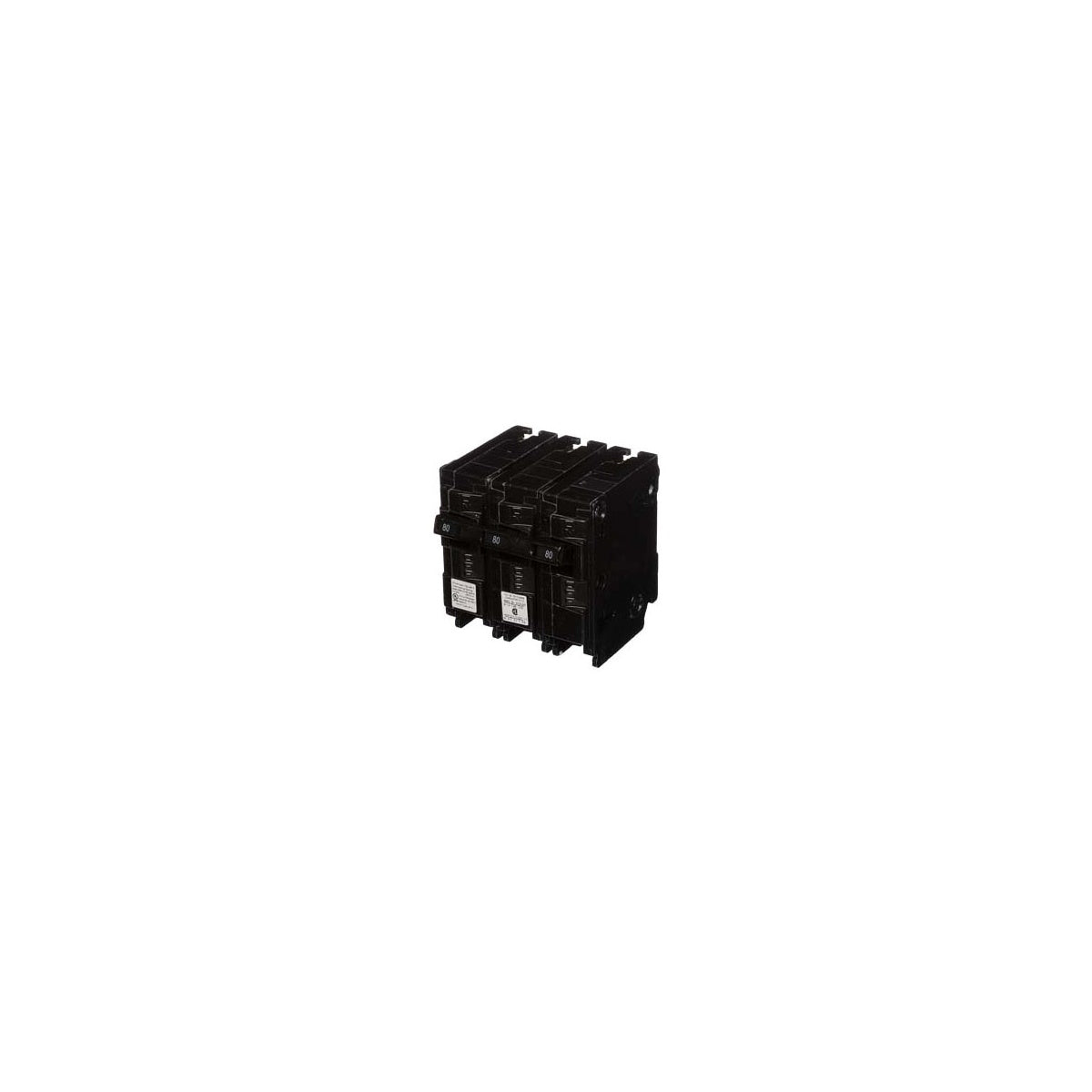

SIEMENS MP360ST BREAKER 60A 3P 240V 10K MP-T 120V SHUNT Circuit Breaker
The SIEMENS MP360ST is a 60 Amp, 3-pole circuit breaker designed for electrical distribution and protection in commercial and industrial applications. It is suitable for use in panelboards and switchgear supplied by electrical distributors and lighting solutions providers. The breaker features a 240V common-trip rating and a 120V shunt trip accessory, making it compatible with control and safety systems.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: MP360ST
- Frame: MP (125A)
- Number of Poles: 3
- Voltage Rating: 240V (common-trip)
- Amperage: 60A
- Interrupting Rating: 10,000 AIC
- Product Weight: 1.42 lbs
- Dimensions (W x L): 4" x 3"
- UPC: 040892538601
Features
- Full-size plug-in design with 1" per pole width
- Compatible with MP-T frame panelboards and switchgear
- Includes 120V shunt trip for remote breaker tripping
- Common-trip mechanism for simultaneous pole disconnection
- UL Listed for use on 3-phase grounded "B" systems
- Rated for frequent switching applications (SWD)
