SIEMENS MC0816B1150TH MC 8S/16C 150A 4J OH/UG RG FTL 2HUB
SKU: #4664
Part: #MC0816B1150TH
UPC: 783643404946
SIEMENS MC0816B1150TH MC 8S/16C 150A 4J OH/UG RG FTL 2HUB
SKU: #4664
Part: #MC0816B1150TH
UPC: 783643404946
Description

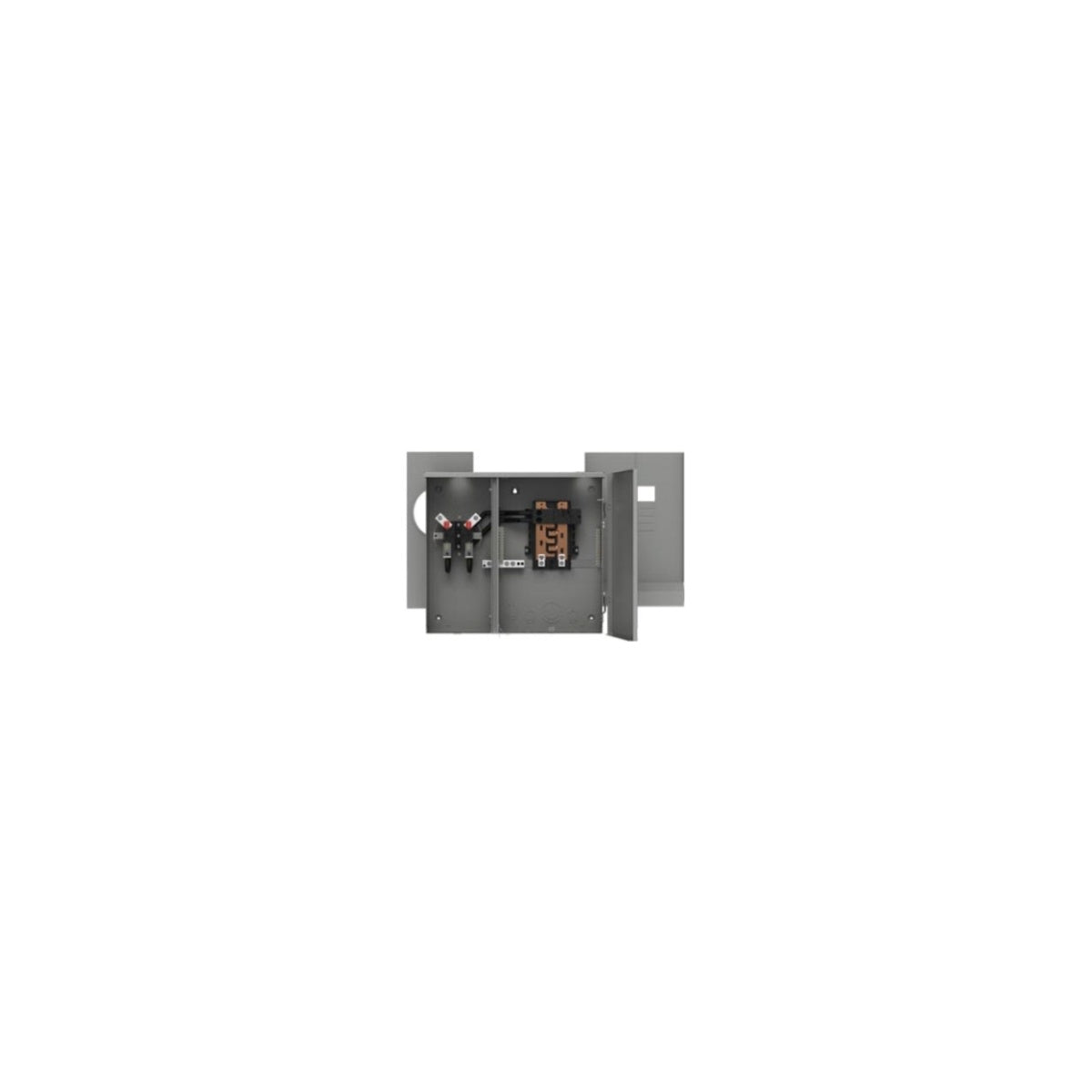

SIEMENS MC0816B1150TH Meter-Load Center Combination 150A
The SIEMENS MC0816B1150TH is a surface-mount meter-load center combination designed for service entrance equipment applications. It supports overhead and underground feed with top and bottom cable entry options. This 1-phase, 3-wire 120/240V AC device integrates meter and load center functionalities, making it suitable for electrical distributors and switchgear suppliers requiring reliable and compact electrical distribution solutions.
Specifications
- Application: Service Entrance Equipment
- Amperage Rating: 150 A
- Cable Entry: Top/Bottom
- Mounting: Surface
- Product Weight: 39.86 lbs
- Manufacturer: Siemens
- Manufacturer Part #: MC0816B1150TH
- Frequency Rating: True
Features
- UL Listed and suitable only for use as service entrance equipment
- 22,000 AIC short circuit rating for enhanced safety
- Pad locking provisions on all devices for security
- Side hinge doors removable by backing out only one screw for ease of maintenance
- Feed-thru lugs included for flexible wiring configurations
