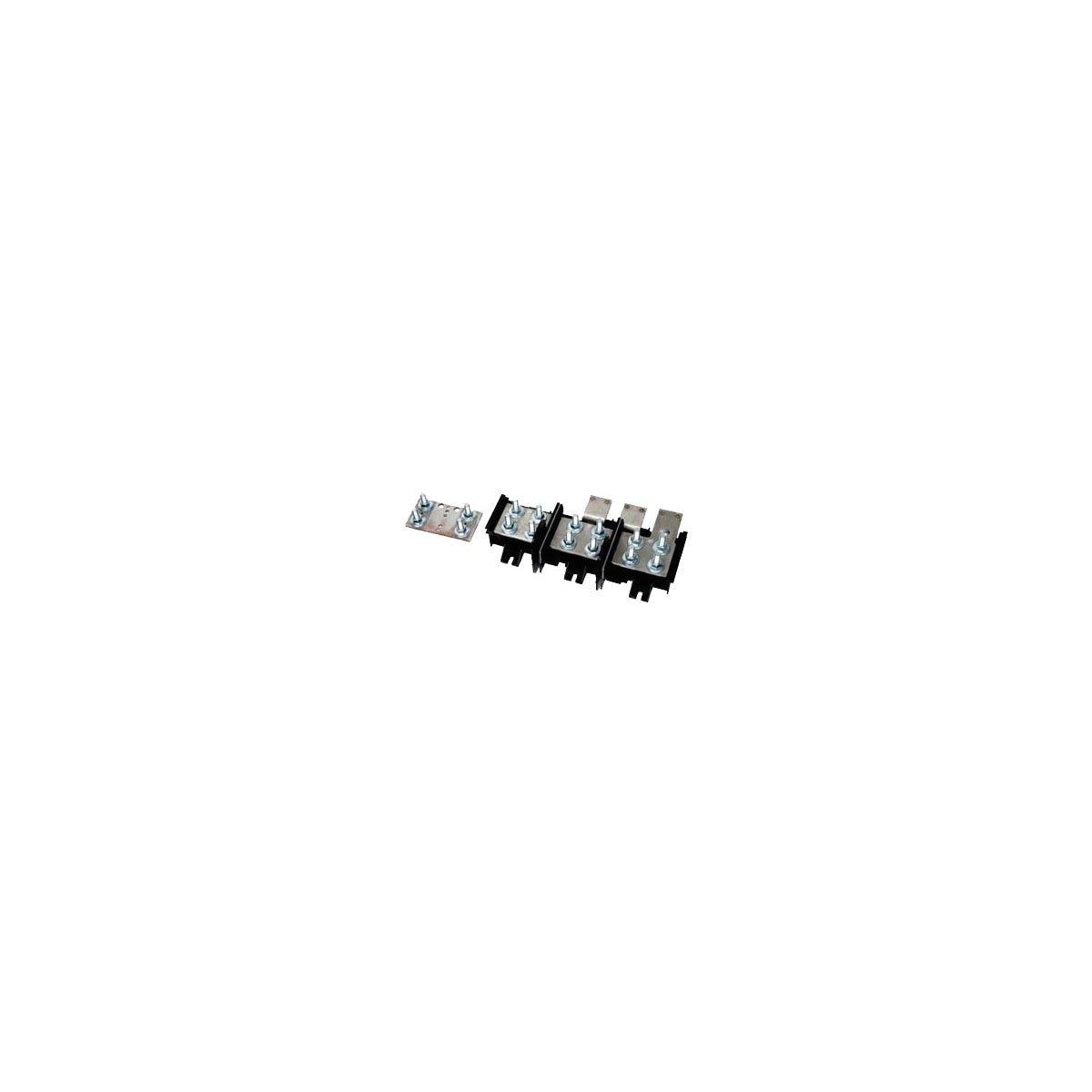

SIEMENS LK31600N2 POWMOD Lug Kit 3-Phase 600KCM Wire Connector

The SIEMENS LK31600N2 Power Mod lug kit is designed for use with 3-phase electrical systems requiring a single conductor connection up to 600 kcmil wire size. This lug kit supports efficient wiring configurations for electrical distributors, lighting solutions, wire and cable installations, and switchgear applications. It is part of Siemens' Power Mod™ accessories, which provide customizable solutions for breakers, switches, and tap box modules.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: LK31600N2
• Phase: 3-Phase
• Conductor Count: 1 conductor
• Maximum Wire Size: 600 kcmil
• Product Weight: 2.2 lbs
• UPC: 040892174038

Features

• Compatible with Power Mod™ breaker and switch modules requiring field-installed lugs
• Tin plated aluminum extrusions for reliable electrical conductivity and corrosion resistance
• UL486A/B compliant lug design ensuring safety and regulatory compliance
• Designed for easy installation with included hardware and instruction sheets

Downloads & Links

• Spec Sheet
