SIEMENS HLXD63M500 BRKR HLD6 3P 600V 500A FX 50C
SKU: #314043
Part: #HLXD63M500
UPC: 783643326316
SIEMENS HLXD63M500 BRKR HLD6 3P 600V 500A FX 50C
SKU: #314043
Part: #HLXD63M500
UPC: 783643326316
Description

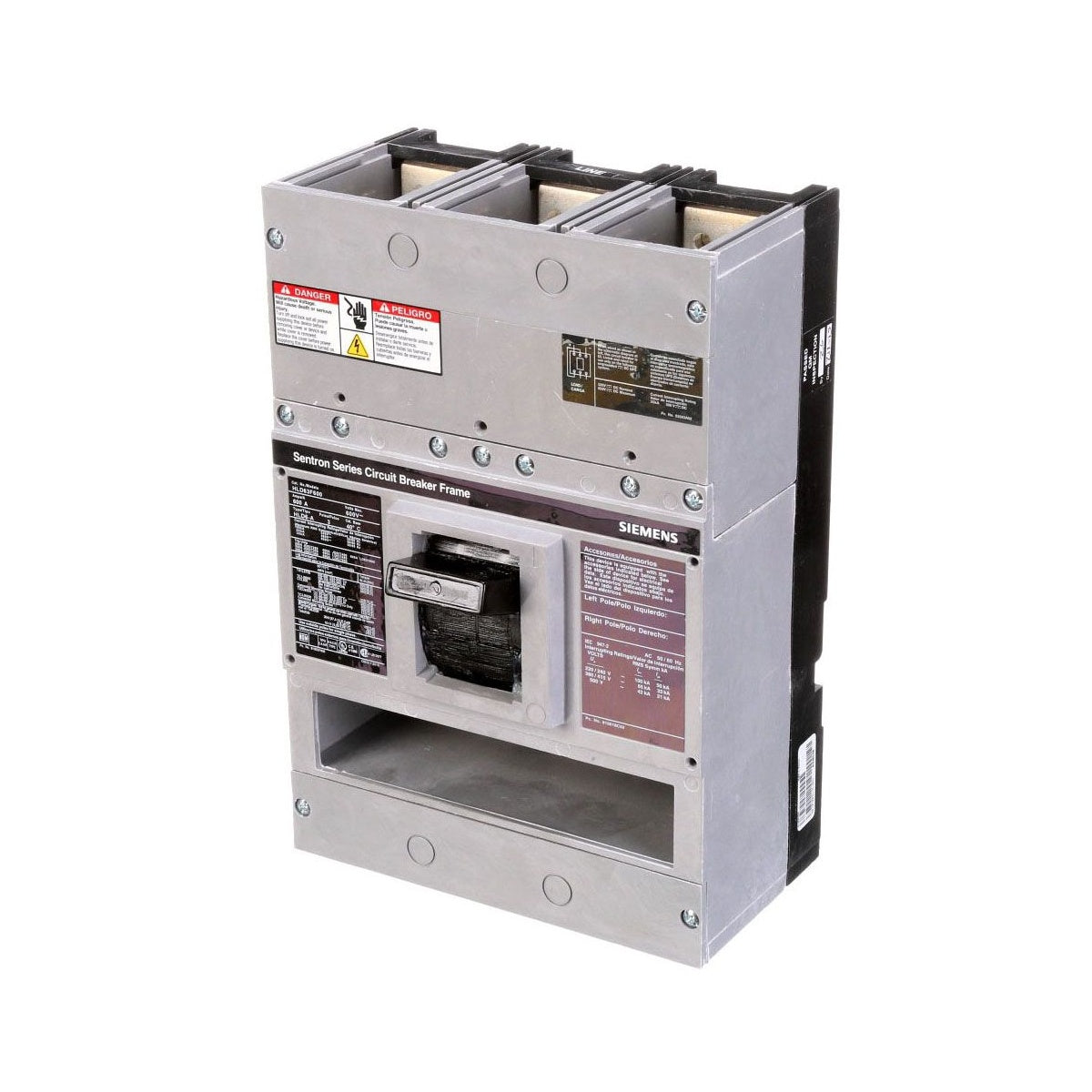

SIEMENS HLXD63M500 BRKR HLD6 3P 600V 500A FX 50C Molded Case Circuit Breaker
The Siemens HLXD63M500 is a molded case circuit breaker designed for industrial and commercial electrical distribution applications. It serves as a reliable protective device for electrical circuits, suitable for use by electrical distributors and switchgear suppliers. Calibrated for 50°C operation, this breaker supports three-pole configurations and is rated for 600V and 500A continuous current, making it suitable for demanding wire and cable protection in lighting solutions and power distribution systems.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: HLXD63M500
- Frame: LD
- Number of Poles: 3
- Voltage Rating: 600V
- Current Rating: 500A
- Interrupt Rating: 35 KAIC
- Frequency Rating: 50/60 Hz
- Operating Temperature: 50°C
- Dimensions (W x H x L): 9 in x 15 in x 7 in
- Product Weight: 18.3 lbs
- Application: Calibrated for 50°C Application
- Actuator: Varying
- Enclosure: Varying
Features
- Thermal-magnetic trip unit designed for calibrated 50°C ambient temperature operation
- Non-interchangeable trip unit for enhanced safety and compliance with UL 489 / CSA C22.2 No. 5 standards
- Suitable for use in reverse-fed applications due to non-removable trip unit design
- Robust construction to support high interrupt rating of 35 KAIC
- Compatible with 3-pole wiring configurations for balanced power distribution
