SIEMENS HFK3T250L BRKR VL HFG 3P 600Y 250A ETU5-LSI LUG
SKU: #313661
Part: #HFK3T250L
UPC: 887621130510
SIEMENS HFK3T250L BRKR VL HFG 3P 600Y 250A ETU5-LSI LUG
SKU: #313661
Part: #HFK3T250L
UPC: 887621130510
Description

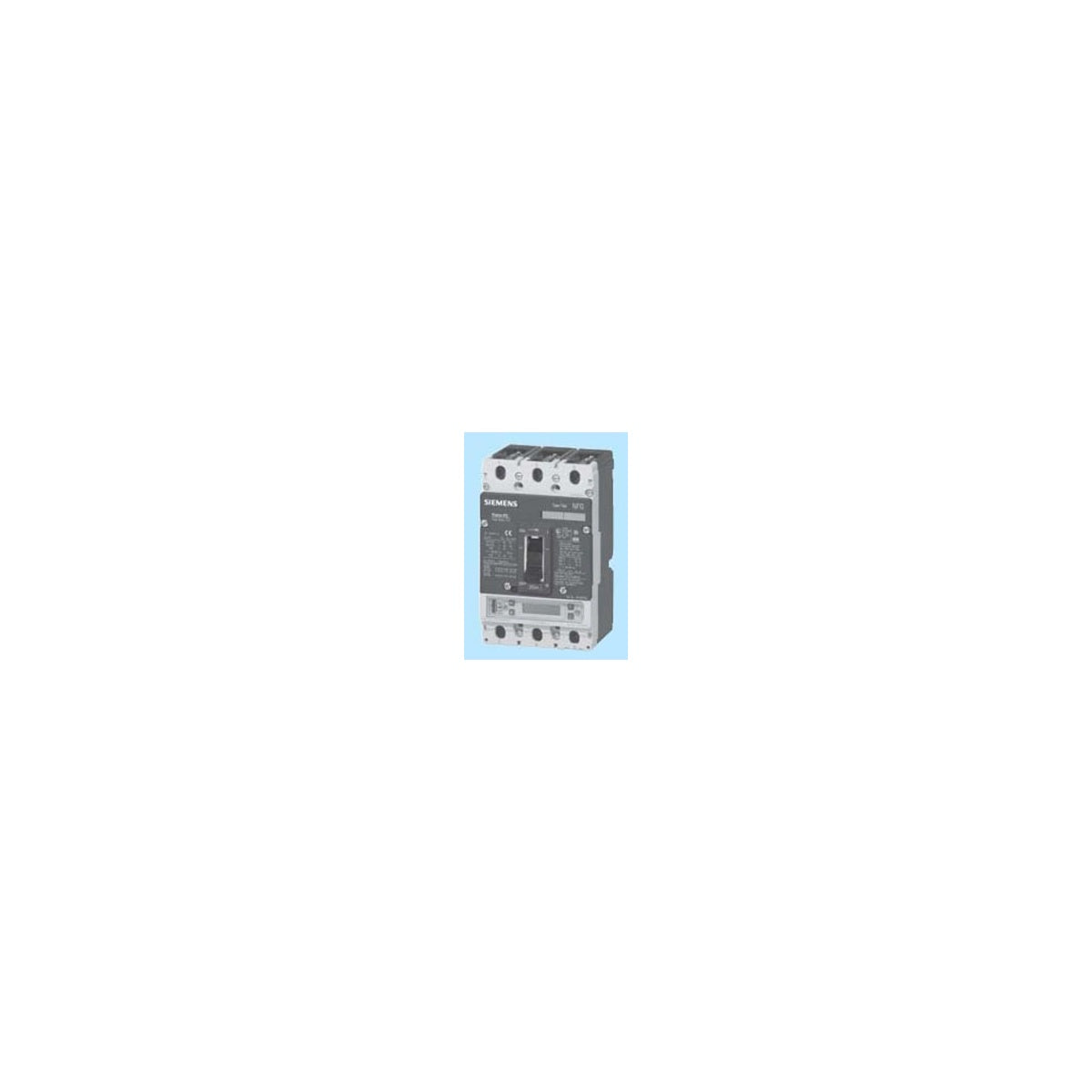

SIEMENS HFK3T250L BRKR VL HFG 3P 600Y 250A ETU5-LSI LUG Molded Case Circuit Breaker
The Siemens HFK3T250L is a 3-pole molded case circuit breaker designed for reliable circuit protection in electrical distribution systems. Rated for 250A with a 600Y voltage rating, this breaker is suitable for global non-interchangeable applications. It features line and load standard copper/aluminum lugs for connection and supports a frequency rating of 50/60 Hz. Ideal for use by electrical distributors and switchgear suppliers, it provides robust protection in commercial and industrial lighting solutions and wire and cable installations.
Specifications
- Manufacturer: Siemens
- Frame: 250A
- Number of Poles: 3
- Interrupt Rating: 18KA
- Frequency Rating: 50/60 Hz
- Material: Molded Case Circuit Breaker
- Connection: Line & Load Standard (Cu/Al) Lugs
- Operating Temperature: 40°C
- Product Weight: 1.0010 lbs
- UPC: 887621130510
- Manufacturer Part #: HFK3T250L
- Application: Global Non-Interchangeable
Features
- Thermal magnetic trip unit suitable for DC and AC applications
- Factory assembled with standard connectors for ease of installation
- Compliant with UL 489 for reverse feed applications due to non-interchangeable trip unit design
- Suitable for 600Y/347V systems with HACR rating
- Supports line and load standard lug connections for copper and aluminum conductors
