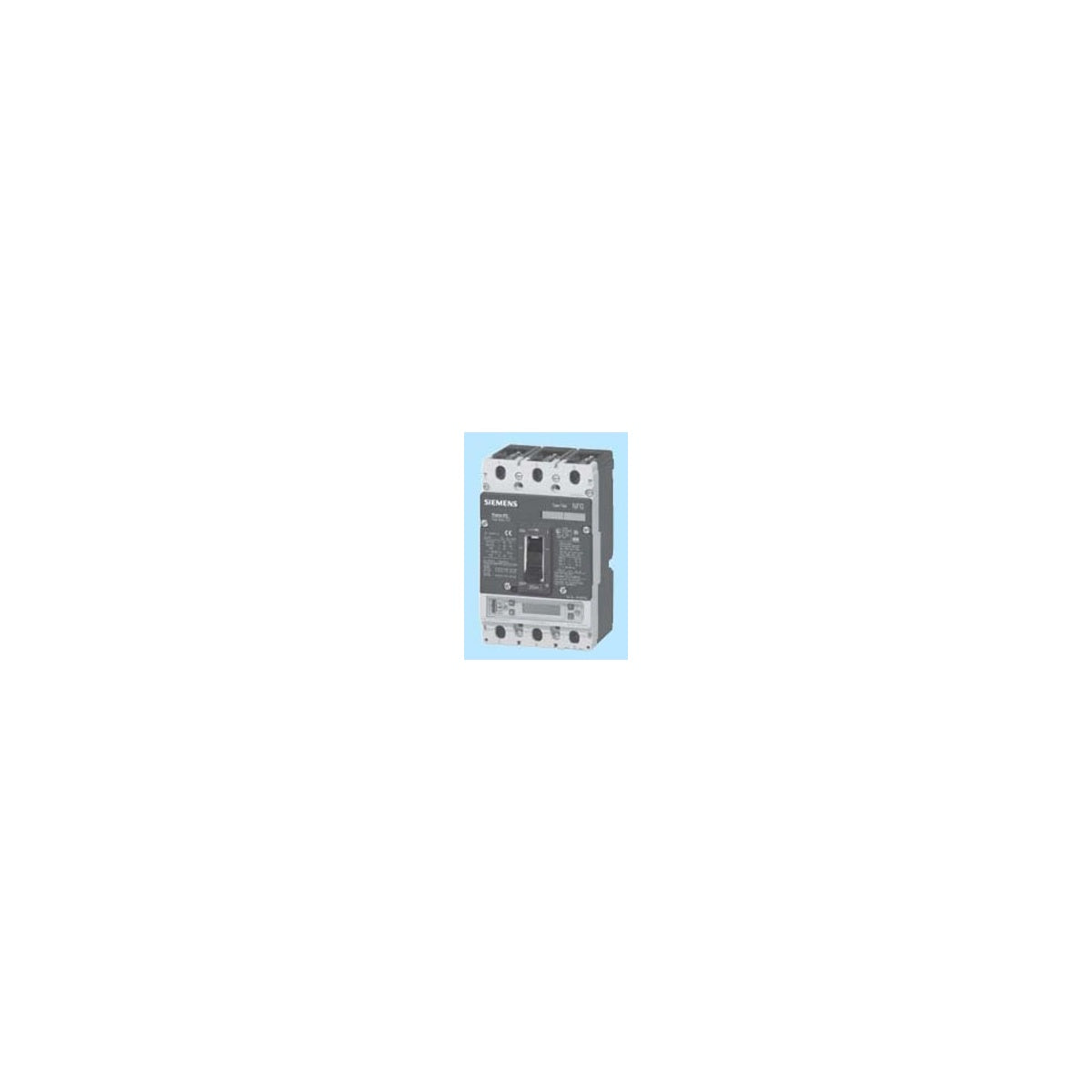

SIEMENS HFK3B225L BREAKER VL 225A T/M 3P 18K 600Y W/LUGS Molded Case Circuit Breaker

The Siemens HFK3B225L is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications. It is suitable for use by electrical distributors and switchgear suppliers requiring robust lighting solutions, wire and cable protection, and circuit interruption at up to 225 amps. This breaker features a thermal-magnetic trip unit optimized for 50/60 Hz systems and is compatible with global interchangeable applications.

Specifications

• Name: SIEMENS HFK3B225L BREAKER VL 225A T/M 3P 18K 600Y W/LUGS
• Manufacturer: Siemens
• Manufacturer Part #: HFK3B225L
• Frame: 250A
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Material: Molded Case Circuit Breaker
• Connection: Lugs
• Application: Global Interchangeable
• Operating Temperature: 40¬∞C
• Product Weight: 6.1730 lbs
• UPC: 887621127206

Features

• Thermal-magnetic trip unit for precise circuit protection
• 3-pole design suitable for three-phase power distribution
• Standard lug connections for secure wiring
• Compatible with 600Y/347V systems and rated for up to 18kA interrupting capacity
• Factory assembled with standard connectors for ease of installation
• Suitable for reverse feed applications in compliance with UL 489
• Designed for use in a wide range of industrial and commercial electrical systems

Downloads & Links

• Spec Sheet
