SIEMENS HF361L HDSS FUS 3P3W 600V 30A N1 OSIZE
SKU: #312956
Part: #HF361L
UPC: 783643502536
SIEMENS HF361L HDSS FUS 3P3W 600V 30A N1 OSIZE
SKU: #312956
Part: #HF361L
UPC: 783643502536
Description

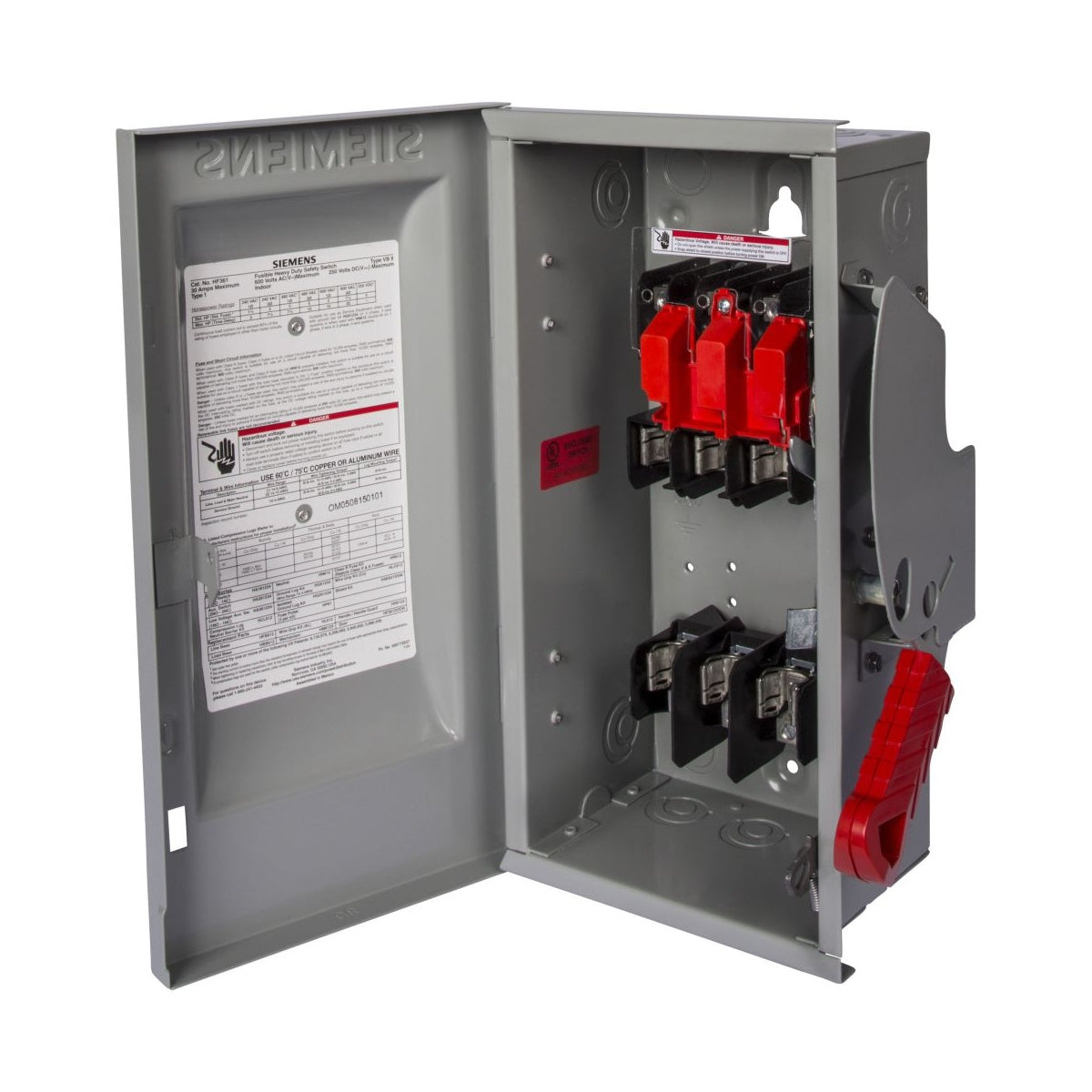

SIEMENS HF361L HDSS FUS 3P3W 600V 30A N1 OSIZE Heavy Duty Safety Switch
The Siemens HF361L is a heavy duty safety switch designed for disconnecting means for service entrance and loads. It is suitable for industrial and commercial electrical distribution applications where reliable isolation and protection are required. This switch is built with a NEMA 1 indoor enclosure and provides surface mounting for easy installation. Its robust steel construction and mechanical lug connections ensure durability and secure wiring, making it an optimal choice for electrical distributors and switchgear suppliers.
Specifications
- Application: Disconnecting means for service entrance/loads
- Amperage Rating: 30 A
- Number of Poles: 3
- Voltage Rating: 600 V
- Enclosure Type: NEMA 1 (Indoor)
- Mounting: Surface
- Connection: Mechanical Lugs
- Material: Steel
- Operating Cycles: 10,000
- Product Weight: 19 lbs
- Manufacturer: Siemens
- Manufacturer Part Number: HF361L
Features
- Quick-make, quick-break operating mechanism ensuring positive operation
- Visible blade, double-break switching action for enhanced safety
- Arc chutes dissipate heat to prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock for added safety
- Padlockable handle in the OFF position with up to three padlocks (5/16" hasps)
- Generous wire-bending space meeting or exceeding NEC requirements
- Informative door labeling including replacement parts list
- Side-hinged door opening past 180 degrees for easier wiring access
- Unique enclosure design increases rigidity and prevents cuts and scrapes
- Spring reinforced fuse clips assure reliable contact for cool operation
- Front removable mechanical lugs suitable for copper or aluminum conductors rated at 60 or 75°C
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate provides highly visible ON/OFF indication
- Drawn cover enhances rigidity and resistance to abuse
- Top key hole and bottom mounting holes allow easy 2 or 3 point mounting
