SIEMENS HF322NRG HDSS FUS 3P4W 240V 60A N3R G BAR
SKU: #411580
Part: #HF322NRG
UPC: 783643333918
SIEMENS HF322NRG HDSS FUS 3P4W 240V 60A N3R G BAR
SKU: #411580
Part: #HF322NRG
UPC: 783643333918
Description

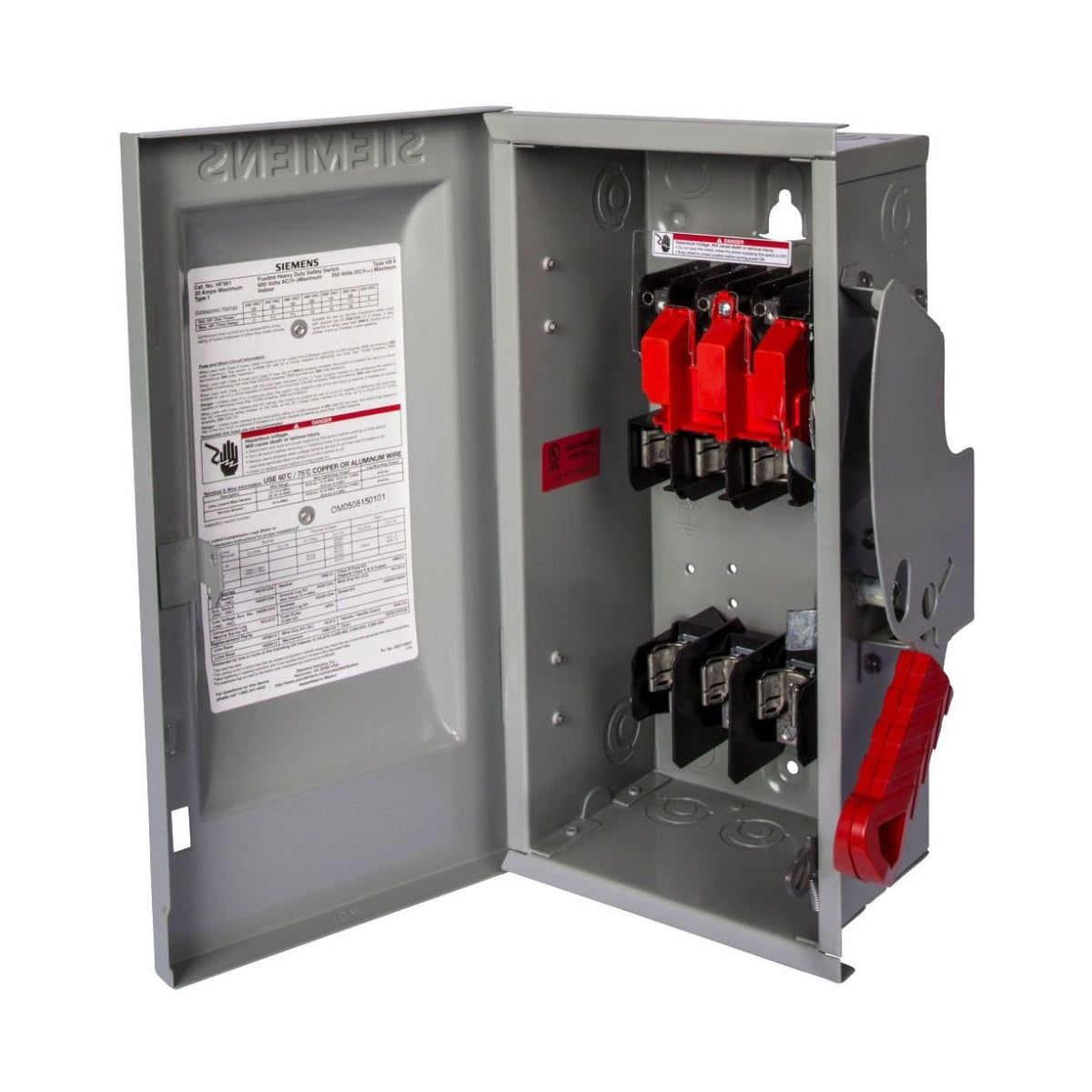

SIEMENS HF322NRG HDSS FUS 3P4W 240V 60A N3R G BAR Safety Switch
This Siemens HF322NRG heavy-duty safety switch is designed for disconnecting means for service entrance and load applications. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring a robust, surface-mounted disconnect switch with reliable mechanical lug connections and a NEMA 3R enclosure for outdoor use.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: HF322NRG
- Application: Disconnecting means for service entrance and loads
- Amperage Rating: 60 A
- Voltage: 240 V
- Number of Poles: 3
- Frequency Rating: True
- Operating Cycles: 10,000
- Material: Steel
- Mounting: Surface
- Enclosure Type: NEMA 3R
- Connection Type: Mechanical Lugs
- Product Weight: 17.1 lbs
- UPC: 783643333918
Features
- Heavy-duty fused safety switch for reliable service entrance disconnect
- Surface mounting for easy installation in various environments
- Steel enclosure with NEMA 3R rating provides protection against rain and sleet
- Mechanical lug connections ensure secure and durable wiring
- Designed for 3-pole, 4-wire systems at 240 volts
- Capable of 10,000 operating cycles for long service life
- Includes factory-installed ground bar for grounding requirements
