SIEMENS HDK3T100B BRKR VL HDG 3P 600Y 100A ETU5-LSI LEL
SKU: #312498
Part: #HDK3T100B
UPC: 887621129477
SIEMENS HDK3T100B BRKR VL HDG 3P 600Y 100A ETU5-LSI LEL
SKU: #312498
Part: #HDK3T100B
UPC: 887621129477
Description

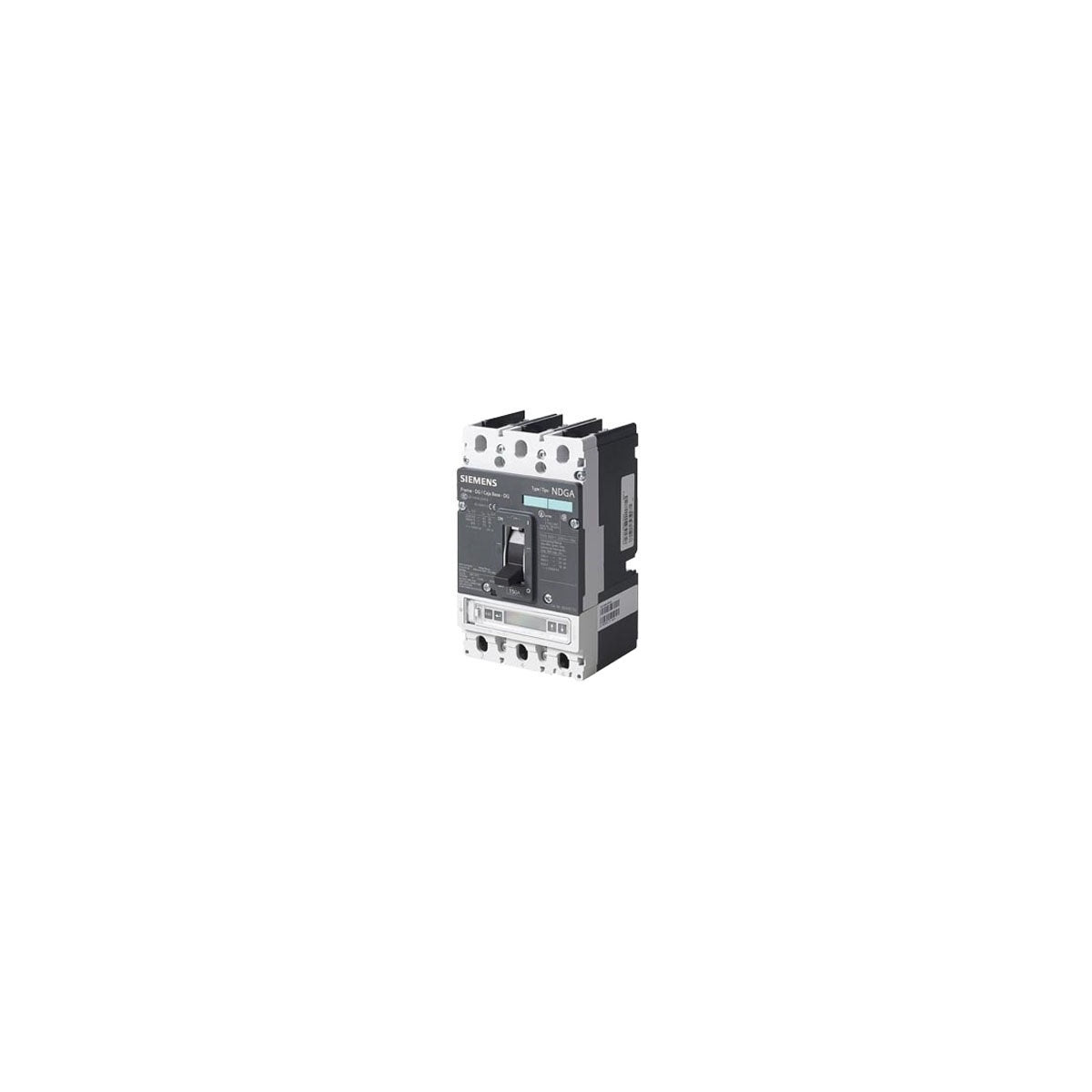

SIEMENS HDK3T100B BRKR VL HDG 3P 600Y 100A ETU5-LSI LEL Molded Case Circuit Breaker
The Siemens HDK3T100B is a 3-pole molded case circuit breaker designed for reliable protection and control in electrical distribution systems. Suitable for use by electrical distributors and switchgear suppliers, this breaker supports a 600Y voltage rating and a continuous current rating of 100A. It is ideal for lighting solutions, wire and cable protection, and general electrical distribution applications requiring robust circuit interruption capabilities.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: HDK3T100B
- Number of Poles: 3
- Frame: 150A
- Interrupt Rating: 18KA
- Frequency Rating: 50/60 Hz
- Connection: Load End Standard (CU/AL) Lugs
- Material: Molded Case Circuit Breaker
- Operating Temperature: 40°C
- Application: Global Non-Interchangeable
- Product Weight: 1.0010 lbs
Features
- Non-interchangeable trip unit compliant with UL 489 for reverse feed applications
- Thermal magnetic trip unit with long delay, short delay, and instantaneous trip functions (ETU5-LSI)
- Factory assembled with standard line and load connectors
- Suitable for DC applications using thermal magnetic trip units
- HACR rated for use with heating, air conditioning, and refrigeration equipment
