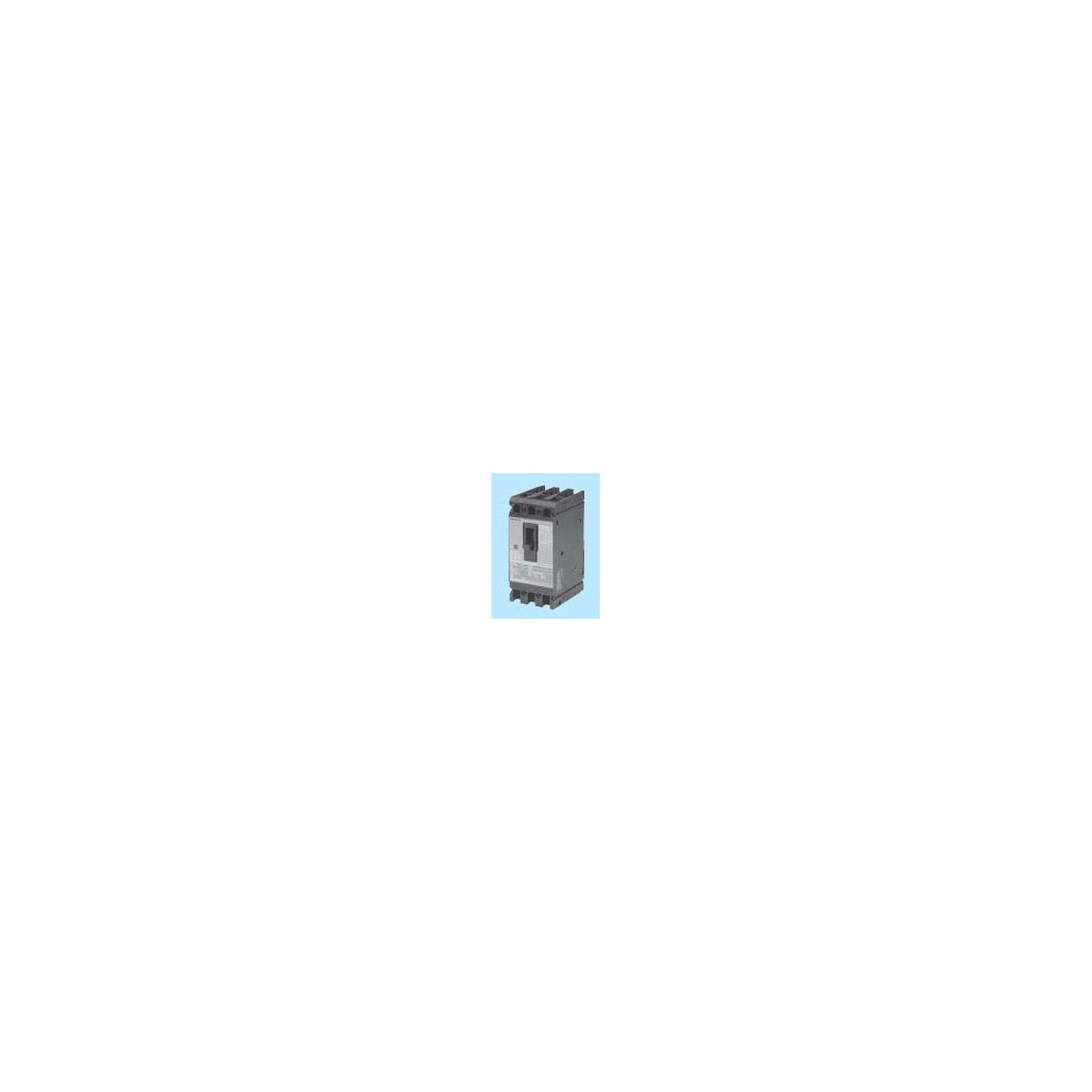

SIEMENS ED63B090LAESB Breaker 3P 600V 90A

The SIEMENS ED63B090LAESB is a molded case circuit breaker designed for standard 40°C electrical applications. It provides reliable circuit protection for industrial and commercial electrical distribution systems. Suitable for use by electrical distributors and switchgear suppliers, this 3-pole breaker supports up to 600 volts AC and is rated for 90 amperes continuous current. It features line/load lugs installed for secure connection and is compatible with various enclosure types.

Specifications

• Manufacturer: Siemens
• Application: Standard 40°C Breaker
• Frame: ED
• Number of Poles: 3
• Voltage Rating: 600V AC
• Current Rating: 90A
• Interrupt Rating: 18KAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Connection: Line/Load lugs installed
• Dimensions (W x H x L): 4.56 in x 6.35 in x 3 in
• Product Weight: 4.806 lbs
• Actuator: S07ED62A Accessory
• Enclosure: Varying
• Manufacturer Part Number: ED63B090LAESB
• UPC: 887621407100

Features

• Built to UL 489 standards for molded case circuit breakers
• Supplied with load side lugs; line side lugs installed as per suffix "L"
• Fuseless current limiting design for enhanced protection
• Suitable for 3-phase electrical systems
• Compatible with a wide range of Siemens internal and external accessories
• Reverse connection capability for installation flexibility
