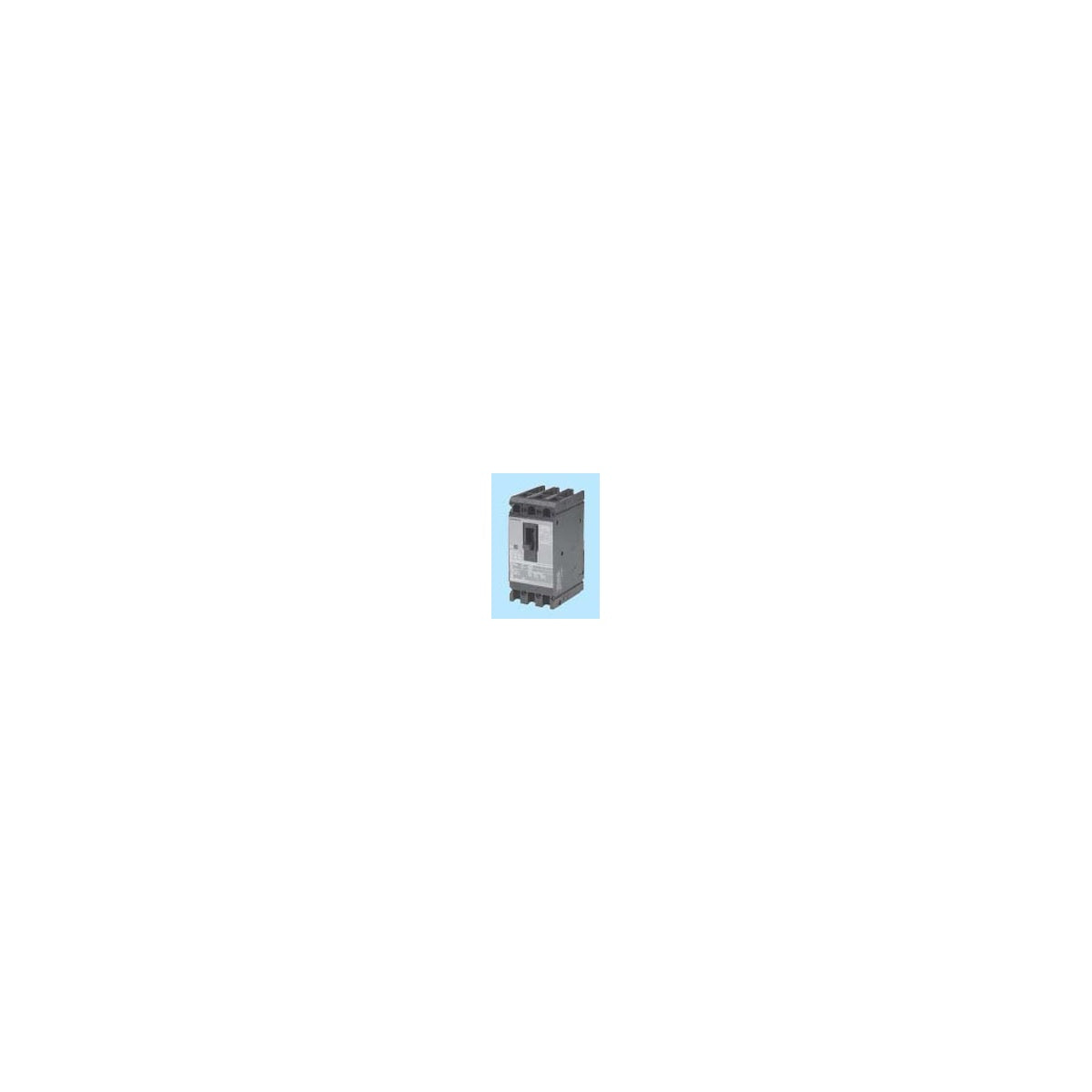

SIEMENS ED63B080LAESB Molded Case Circuit Breaker 600V 80A

The SIEMENS ED63B080LAESB is a 3-pole molded case circuit breaker designed for standard 40°C applications. It provides reliable circuit protection for electrical distribution systems up to 600 volts, suitable for industrial and commercial electrical distributors, lighting solutions, and wire and cable installations. This breaker features line/load lugs installed for straightforward connection and includes a S07ED62A accessory actuator for enhanced operational control.

Specifications

• Manufacturer: Siemens
• Frame: ED
• Application: Standard 40°C Breaker
• Manufacturer Part #: ED63B080LAESB
• Number of Poles: 3
• Voltage Rating: 600V AC
• Current Rating: 80 Amps
• Interrupt Rating: 18KAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Connection: Line/Load lugs installed
• Dimensions (W x H x D): 4.56 in x 6.35 in x 3 in
• Product Weight: 4.8060 lbs

Features

• Standard 40°C calibration for consistent thermal-magnetic trip performance
• Equipped with line and load lugs for ease of installation
• Compatible with S07ED62A actuator accessory for additional operational functionality
• Varying enclosure options to suit different installation requirements
• Designed to UL 489 Supplement SB naval use standards (qualification available)

Downloads & Links

• Spec Sheet
