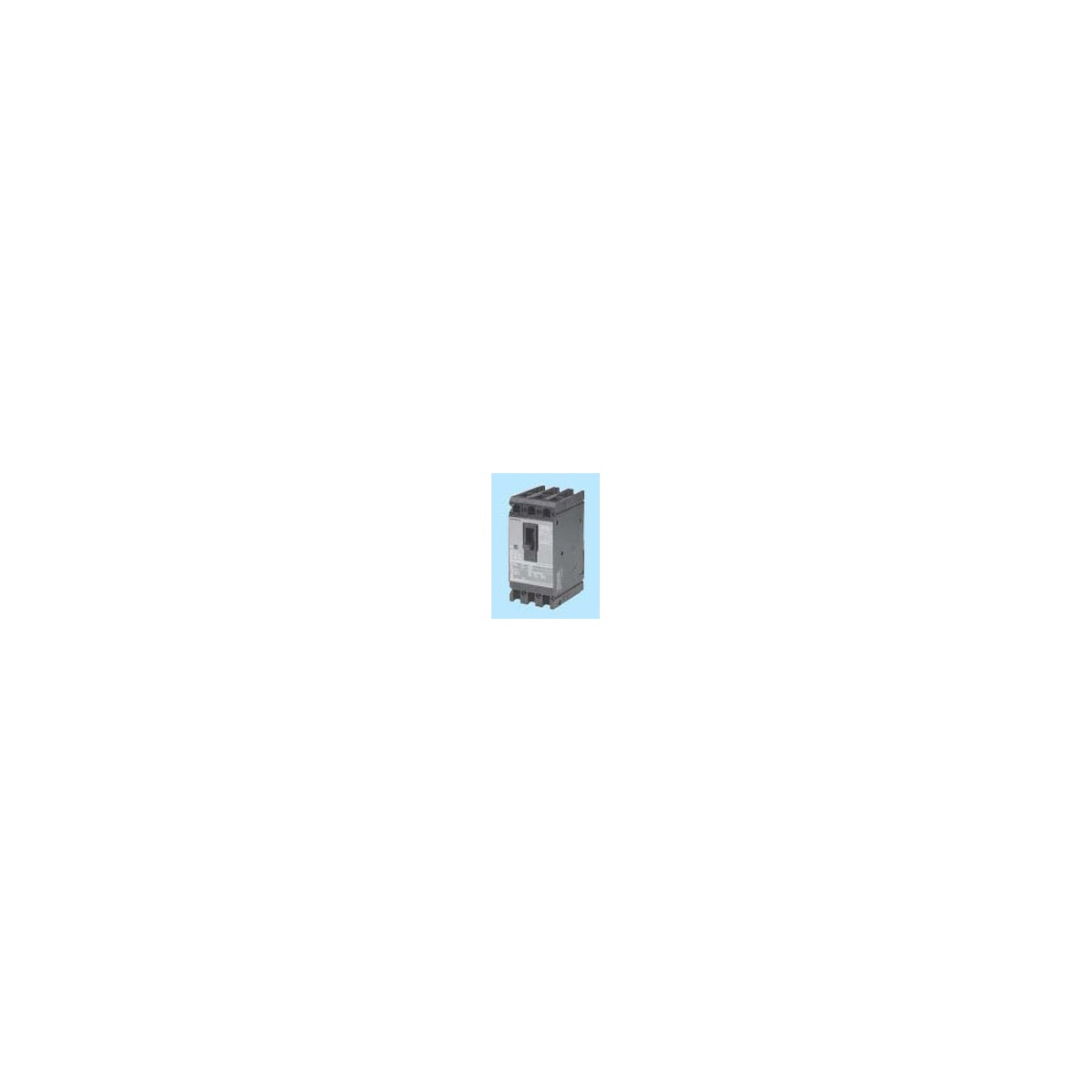

SIEMENS ED63B070LAESB BRKR ED6 3P 600V 70A LUG 24V ST AUX Molded Case Circuit Breaker

The SIEMENS ED63B070LAESB is a 3-pole molded case circuit breaker designed for industrial electrical distribution and protection applications. Rated for 600V and 70A continuous current at 40°C operating temperature, it is suitable for use in electrical distribution panels and switchgear assemblies. This breaker features line/load lugs installed for secure connection and is intended for standard 40°C breaker applications. It supports 50/60 Hz frequency and provides an interrupt rating of 18kAIC, ensuring reliable short-circuit protection.

Specifications

• Manufacturer: Siemens
• Frame: ED
• Application: Standard 40C Breaker
• Number of Poles: 3
• Voltage Rating: 600V AC
• Current Rating: 70A
• Interrupt Rating: 18KAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40¬∞C
• Connection: Line/Load lugs installed
• Dimensions (W x H x D): 4.56 in x 6.35 in x 3 in
• Product Weight: 4.806 lbs
• Actuator: S07ED62A Accessory
• Enclosure: Varying
• UPC: 887621407087
• Manufacturer Part #: ED63B070LAESB

Features

• 3-pole construction for balanced multi-phase circuit protection
• Line and load lugs pre-installed for simplified wiring
• Standard 40¬∞C ambient temperature rating suitable for typical industrial environments
• Compact dimensions allow integration into standard electrical panels
• Compatible with Siemens ED frame accessories and modifications
