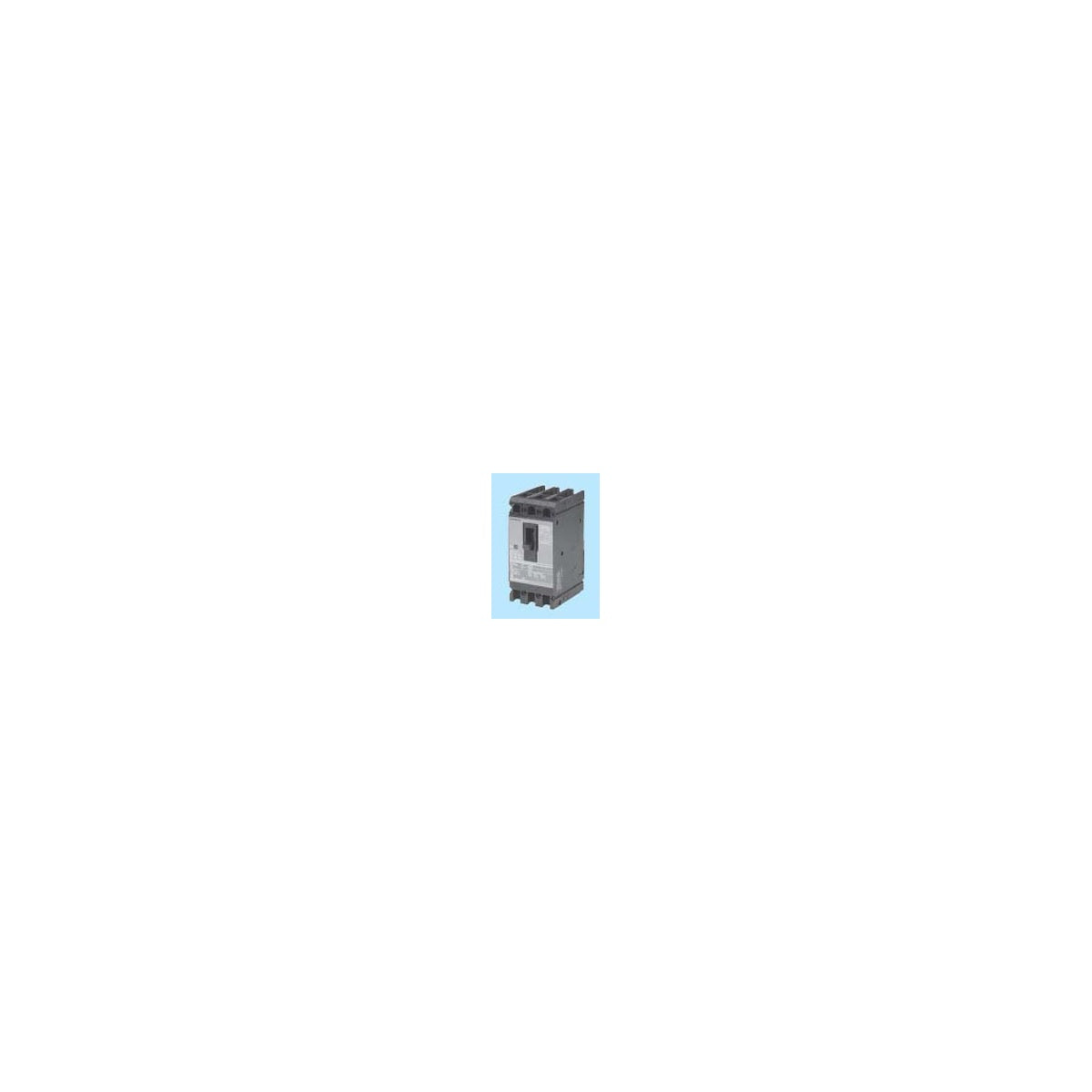

SIEMENS ED63B050LAESB BRKR ED6 3P 600V 50A LUG 24V ST AUX Molded Case Circuit Breaker

The SIEMENS ED63B050LAESB is a 3-pole molded case circuit breaker designed for electrical distribution and protection in industrial and commercial applications. It is suitable for use in 600V circuits and provides reliable circuit protection with a 50 ampere continuous current rating. This breaker is equipped with line and load lugs installed for secure electrical connections and features a 24V auxiliary switch actuator for enhanced control options. It is ideal for electrical distributors and switchgear suppliers requiring durable and precise circuit protection solutions.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: ED63B050LAESB
• Frame: ED
• Application: Standard 40C Breaker
• Number of Poles: 3
• Voltage Rating: 600V AC
• Current Rating: 50A
• Interrupting Rating: 18KAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Connection: Line/Load lugs installed
• Actuator: S07ED62A Accessory (24V Auxiliary Switch)
• Dimensions (W x H x D): 4.56 in x 6.35 in x 3 in
• Product Weight: 4.806 lbs
• Enclosure: Varying
• UPC: 887621407063

Features

• 3-pole configuration for three-phase circuit protection
• Factory-installed line and load lugs for ease of installation
• Standard 40°C ambient temperature rating for reliable performance
• Auxiliary switch actuator accessory for remote signaling and control
• Compact dimensions suitable for integration in standard switchgear assemblies
• 18KAIC interrupting capacity for effective fault current interruption
• Compatible with Siemens ED frame molded case circuit breaker series
