SIEMENS ED62M060 BRKR ED6 2P 600V 60A 50C
SKU: #397367
Part: #ED62M060
UPC: 783643003774
SIEMENS ED62M060 BRKR ED6 2P 600V 60A 50C
SKU: #397367
Part: #ED62M060
UPC: 783643003774
Description

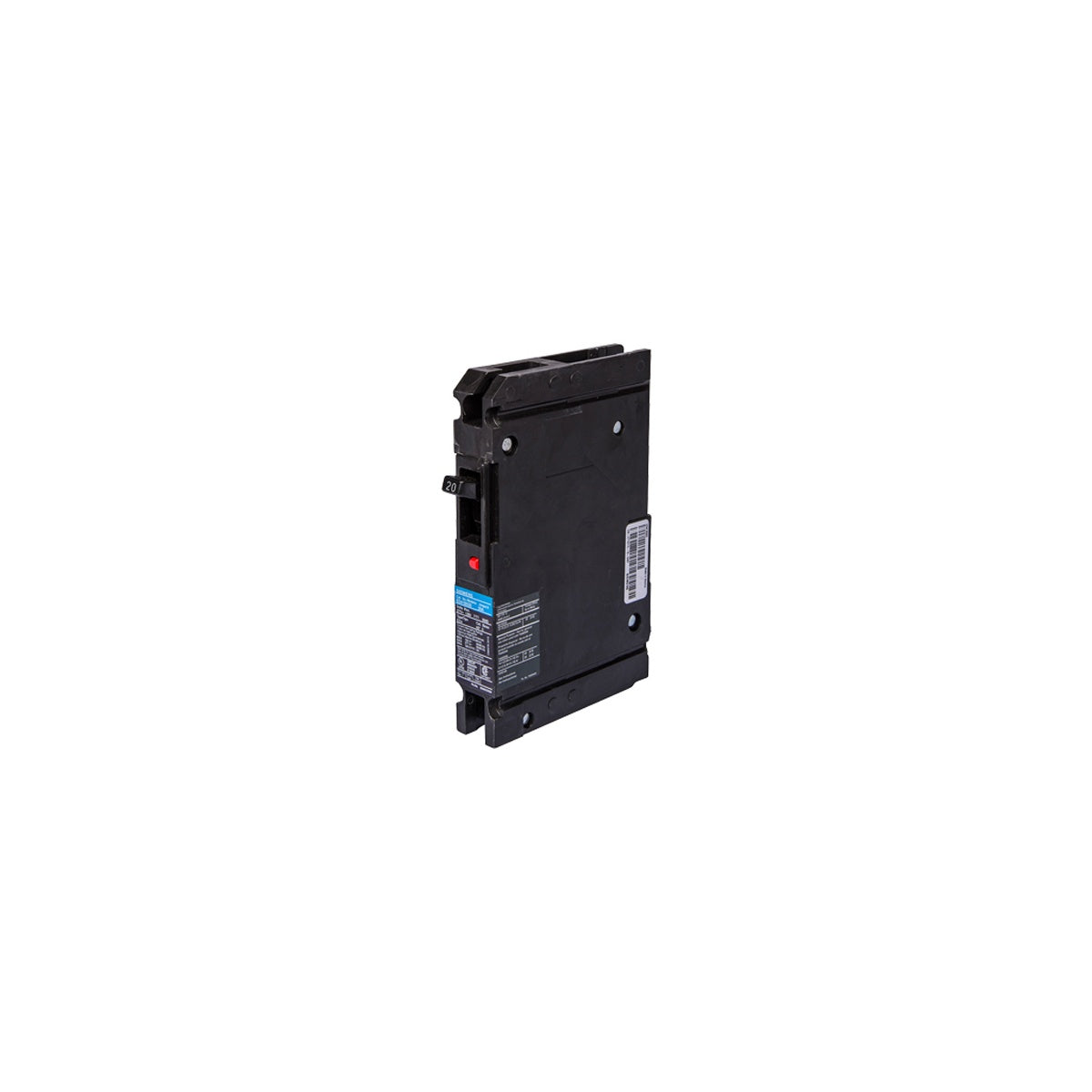

SIEMENS ED62M060 BRKR ED6 2P 600V 60A 50C Molded Case Circuit Breaker
The Siemens ED62M060 is a 2-pole molded case circuit breaker designed for electrical distribution and protection applications, calibrated specifically for 50°C ambient temperature operation. It is suitable for use in panelboards, switchboards, and individual enclosures, providing reliable overcurrent protection up to 600 volts AC and 400 Hz frequency. This breaker is ideal for electrical distributors and switchgear suppliers requiring robust, compact circuit protection solutions.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: ED62M060
- Frame: ED
- Number of Poles: 2
- Voltage Rating: 600 V
- Current Rating: 60 A
- Frequency Rating: 400 Hz
- Interrupt Rating: 18 KAIC
- Operating Temperature: 50°C
- Application: Calibrated for 50°C Application
- Dimensions (HxWxL): 7 in x 3 in x 6 in
- Product Weight: 2.5 lbs
- Actuator: Varying
- Enclosure: Varying
- UPC: 783643003774
Features
- Non-interchangeable trip unit integrated within the ED frame for enhanced safety and compliance with UL 489 / CSA C22.2 No. 5 standards.
- Thermal-magnetic trip unit suitable for reliable circuit protection.
- Designed for use with 60°C or 75°C wire per NEC and Canadian Electric Code guidelines.
- Compact dimensions allow for efficient panelboard and switchboard installation.
- Suitable for 400 Hz applications common in specialized electrical and lighting solutions.
