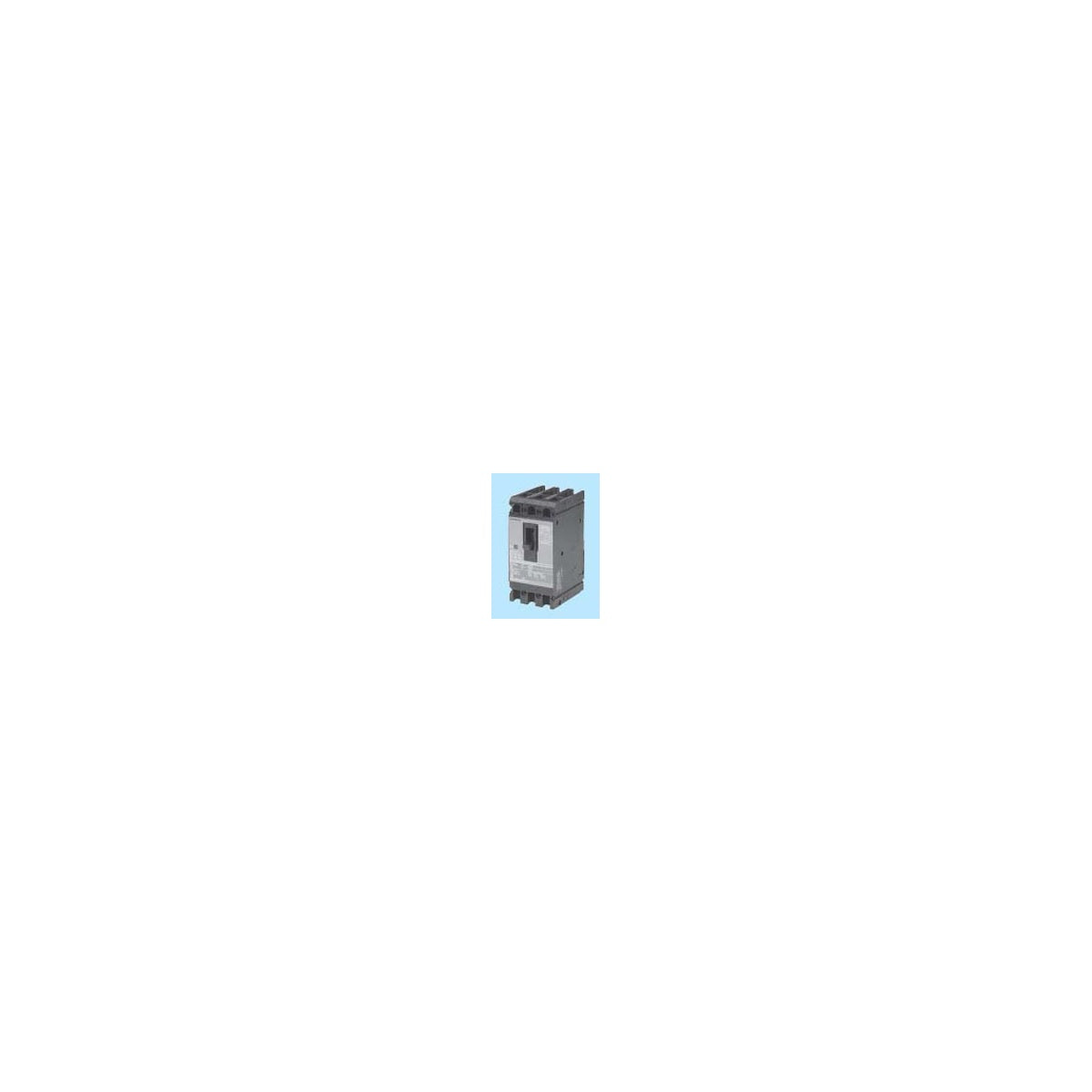

SIEMENS ED42B030BF BRKR ED4 2P 480V 30A 480V BA Molded Case Circuit Breaker

The Siemens ED42B030BF is a 2-pole molded case circuit breaker designed for standard 40°C breaker applications. It provides reliable circuit protection for electrical distribution systems operating up to 480 volts AC. Suitable for use by electrical distributors and lighting solutions providers, this breaker supports industrial and commercial wire and cable installations requiring robust overcurrent protection. It is part of the ED frame series, known for its compatibility with a wide range of switchgear assemblies.

Specifications

• Manufacturer: Siemens
• Model Number: ED42B030BF
• Application: Standard 40°C Breaker
• Frame: ED
• Number of Poles: 2
• Voltage Rating: 480V AC
• Current Rating: 30A
• Interrupt Rating: 18KAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Dimensions (W x H x L): 3.00 in x 4.56 in x 6.35 in
• Product Weight: 3.0 lbs
• Actuator: B00ED64 Accessory
• Enclosure: Varying
• UPC: 887621650063

Features

• Fuseless current limiting design for enhanced circuit protection
• Compatible with line/load side lugs for flexible wiring options
• Reverse connectable for installation versatility
• Meets UL 489 and CSA certification standards
• Blue label indicating ED4 series with standard interrupting rating
