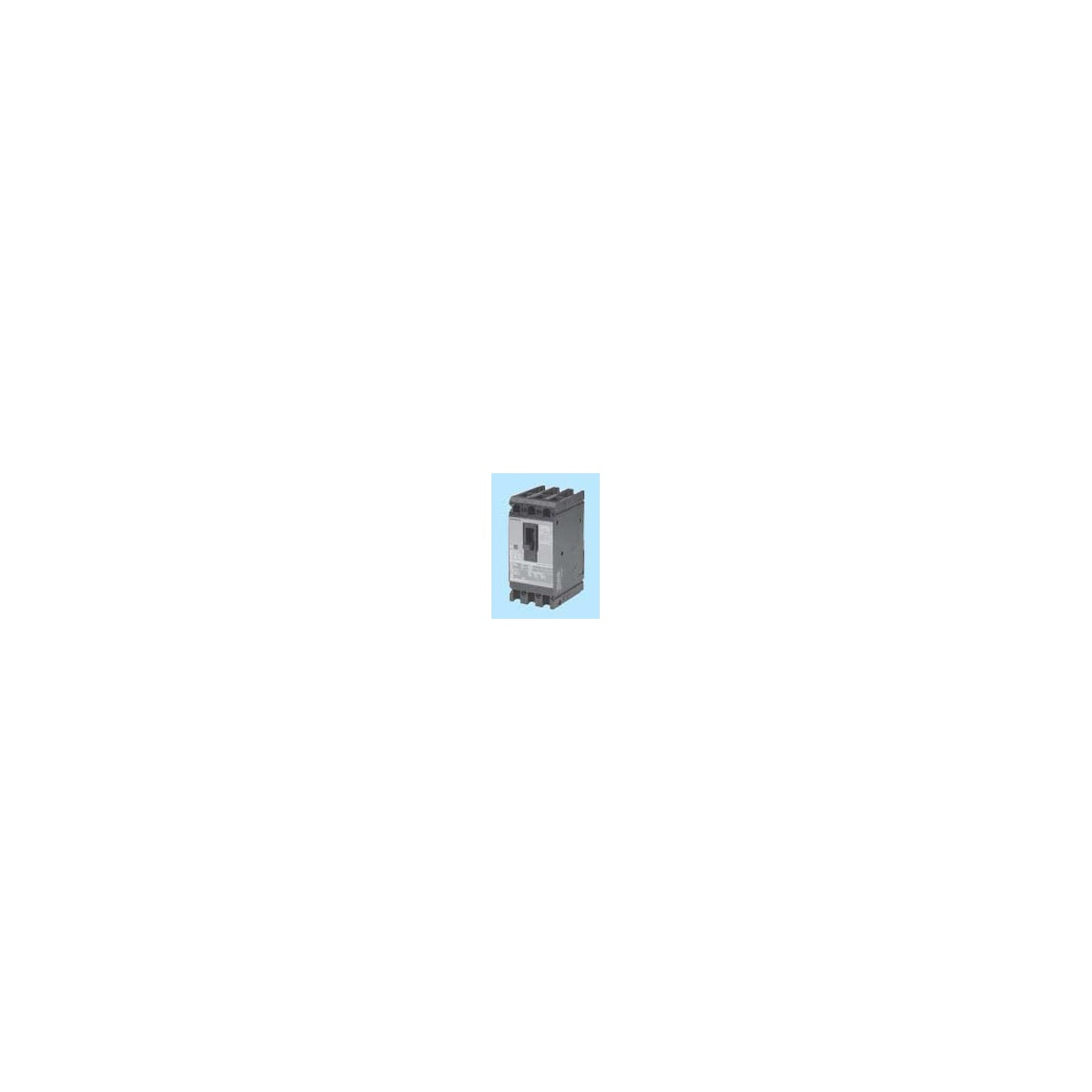

SIEMENS ED42B020BF Breaker 2-Pole 480V 20A

The SIEMENS ED42B020BF is a molded case circuit breaker designed for standard 40°C applications, providing reliable circuit protection in electrical distribution systems. It is suitable for industrial and commercial electrical distributors requiring robust protection solutions for wire and cable systems. This 2-pole breaker supports 480V AC operation and is engineered for use in lighting solutions, switchgear assemblies, and general electrical distribution.

Specifications

• Manufacturer: Siemens
• Frame: ED
• Number of Poles: 2
• Voltage Rating: 480V AC
• Current Rating: 20A
• Interrupt Rating: 18KAIC
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40°C
• Dimensions (W x H x L): 4.00 in x 4.56 in x 6.35 in
• Product Weight: 3.0 lbs
• Actuator: B00ED64 Accessory
• Enclosure: Varying
• UPC: 887621650070

Features

• Standard 40°C breaker designed for reliable thermal-magnetic trip operation
• 18KAIC interrupting capacity at 480V for enhanced circuit protection
• Compact dimensions suitable for integration into various switchgear and panelboard assemblies
• Supplied with load side lugs; line side lugs available as optional accessory
• Compatible with Siemens ED frame molded case circuit breakers series
